New Holland Workmaster 25S vs Rural King RK25

Across 9 measurable specs, the Rural King RK25 leads 7 categories to 1 (1 tied). Machine pages: New Holland Workmaster 25S and Rural King RK25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25S	Rural KingRK25

▶Engine
PTO Power	17.2 hp	18.3 PTO HP
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	3-cylinder, naturally aspirated diesel	Diesel
Fuel System	In-line injection pump	Fuel injection
Displacement	76.9 in³	77.3 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Liquid-cooled
Engine Manufacturer	Yanmar	YANMAR
Engine Power (Gross)	24.7 hp	24.7 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4
Engine Model	—	3TNV80F
▶Weight
Weight with ROPS and Loader	1,444 lb (ROPS tractor only)	2,560 lb
Weight with Cab and Loader	1,805 lb (Cab tractor only)	Not Published
▶Warranty
Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	Full-machine: 24 months/2,000 hours; Powertrain: 96 months/3,000 hours (whichever comes first)
▶Hydraulics
Pump Type	Gear	Gear pump
Steering Flow	2.1 gpm	2.77 GPM
Implement Flow	4.6 gpm	4.18 GPM
Total Hydraulic Flow	6.7 gpm	6.95 gpm
Hydraulic System Type	Open center	Live independent
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.7 gpm	6.95 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	0	1
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent, electro-hydraulic engagement	INDEPENDENT
Lift Control Type	Lift-hold-lower	POSITION
Hitch Lift Capacity	992 lb at ball ends	1,534.4 lb (1,534 lbs.)
Mid-PTO Availability	Standard (2,500 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity (at 24”)	728 lb	1,102 lb
▶Tire Options
R3 Turf - Rear	26X12.0-12	36x13.5-15
R3 Turf - Front	18X8.50-10	25X8.50-14
Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	26X12.0-12	12-16.5 | 14-17.5
R4 Industrial - Front	18X8.50-10	23X8.50-12; 25X8.50-14
R1 Agricultural - Rear	Not Applicable	9.5-20
R1 Agricultural - Front	Not Applicable	6.0-12
▶Fluid Capacity
Coolant Capacity	3.5 qt	3.6 ℓ (3.8 quart)
Crankcase Capacity	3.0 qt	2.7 ℓ (2.9 quart)
Fuel Tank Capacity	6.6 gal	25 ℓ (6.6 gallon)
Front Axle Fluid Capacity	0.5 gal	4.5 ℓ (4.7 quart)
Transmission / Hydraulic System Capacity	3.0 gal	14 ℓ (5.8 gallon)
▶Loader & Attachments
Loader Lift Height	72 in	87"
Loader Breakout Force	2,078 lb	2,059 lbs.
Quick Attach Loader System	100LC: Quick Mount system (no tools)	L85: Skid-steer compatible quick-attach
Loader Lift Capacity (Full Height)	1,005 lb	1,380 lbs.
▶Transmission & Drivetrain
Clutch	Not Applicable	Not Applicable
No. of Speeds	Infinite (2-range)	2 Range (H/L)
Transmission Type	2-Range Hydrostatic / Dual Pedal	2-Range Hydrostatic Transmission
Max Travel Speed (Forward)	9.1 mph	13.7 mph (13.7 m/h)
Max Travel Speed (Reverse)	5.5 mph	Not Published
Differential Lock & Limited Slip Options	Mechanical, foot-operated rear diff lock	Differential lock
▶Chassis, Steering & Controls
Brakes	Wet, multi-disc	WET DISC
Steering	Central support, bevel gear type	Hydrostatic power steering
Frame Type	Not Published	Rigid frame
Front Axle Type	4WD (FWD)	4WD front axle
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	56.1 in	Not Published
Overall Width	46.7 in	52.8 in (52.8 inch)
Ground Clearance	12 in	7.7 in (7.71 inch)
Height to Top of ROPS	90 in	89.8 in
Height to Top of Cab Model	87.4 in	Not Applicable
Height to Top of ROPS (folded)	64 in	Not Published
Min. Turn Radius without Brakes	94 in	109.5 in (109.5 inch)
Overall Length with 3-Point Hitch	97.4 in	107.9 in (107.8 inch)
▶ITC Company Accessories
Accessories that fit	None tagged yet	TYM T25 Rural King RK25 Brush Guard Insert $250.00 TYM T25 Hydraulic Valve Cover $124.99

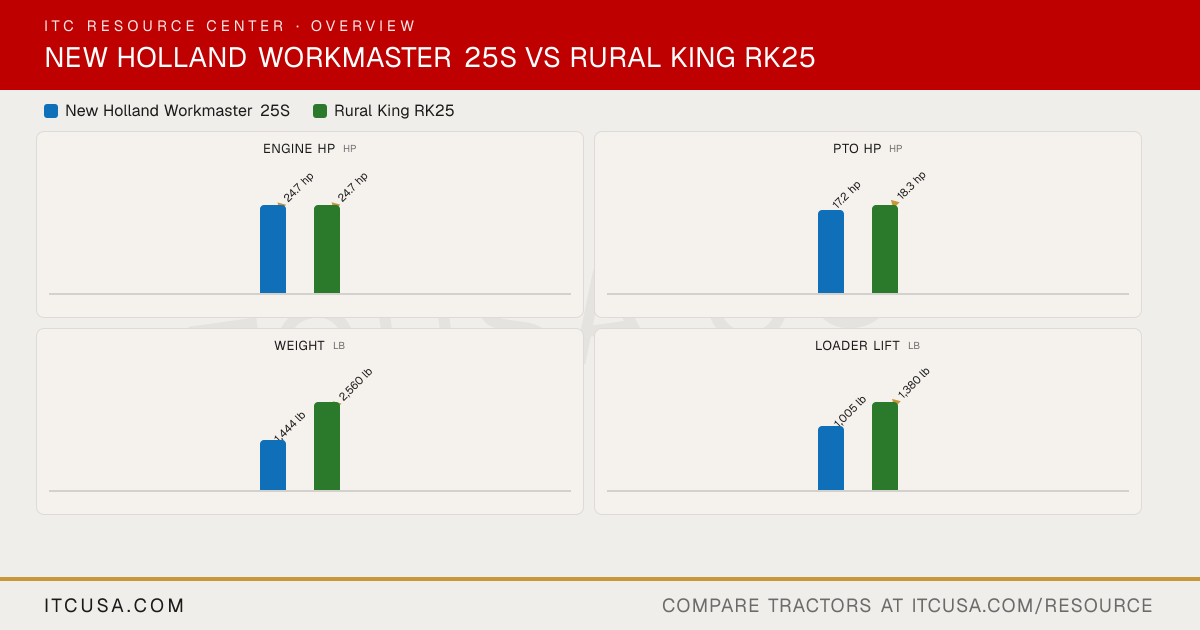

New Holland Workmaster 25S vs Rural King RK25: Quick Answers

Which has more horsepower, the New Holland Workmaster 25S or the Rural King RK25?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the New Holland Workmaster 25S or the Rural King RK25?

The Rural King RK25 leads on pto hp at 18.3 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the New Holland Workmaster 25S or the Rural King RK25?

The Rural King RK25 leads on weight at 2,560 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the New Holland Workmaster 25S or the Rural King RK25?

The Rural King RK25 leads on loader lift at 1,380 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the New Holland Workmaster 25S or the Rural King RK25?

The Rural King RK25 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
