Which has more horsepower, the New Holland Workmaster 35 or the TYM 3515?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the New Holland Workmaster 35 or the TYM 3515?

The TYM 3515 leads on pto hp at 30 hp hp, compared to 25.7 hp hp for the New Holland Workmaster 35.

Which is heavier, the New Holland Workmaster 35 or the TYM 3515?

The TYM 3515 leads on weight at 4,191 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 35.

Which has more loader lift capacity, the New Holland Workmaster 35 or the TYM 3515?

The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 35.

Which has more three-point hitch lift capacity, the New Holland Workmaster 35 or the TYM 3515?

The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 35.

New Holland Workmaster 35 vs TYM 3515

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM 3515 leads 7 categories to 1 (1 tied). Machine pages: New Holland Workmaster 35 and TYM 3515.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 35	TYM 3515
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	25.7 hp	▲ 30 hp
Weight (lb)	2,400 lb	▲ 4,191 lb
Loader Lift (lb)	1,500 lb	▲ 2,200 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 2,425 lb
Lift Height (in)	91.5 in	▲ 104.9 in
Breakout Force (lbf)	2,700 lbf	▲ 3,422 lbf
Hydraulic Flow (gpm)	▲ 13 gpm	12.3 gpm
Travel Speed (mph)	15 mph	▲ 18.8 mph

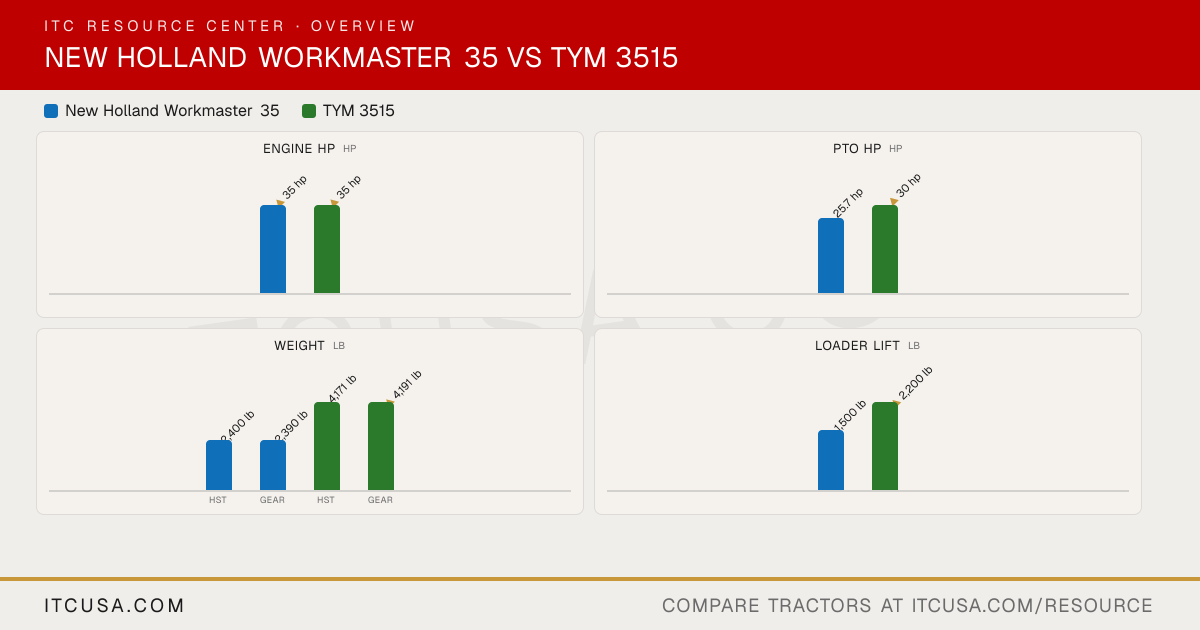

The headline numbers at a glance.

New Holland Workmaster 35TYM 3515

Engine HPhp

▲35 hp

PTO HPhp

25.7 hp

▲30 hp

Weightlb

2,400 lb

2,390 lb

4,171 lb

▲4,191 lb

HSTGearHSTGear

Loader Liftlb

1,500 lb

▲2,200 lb

3-Pt Lift (24 in)lb

1,433 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 35	TYM3515


PTO Power	25.7 hp	30 hp
Alternator	70 A, 12 V	50 A, 12 V
Air Cleaner	Dual element dry air cleaner	Dry Element
Engine Type	Turbocharged diesel	3-cylinder, naturally aspirated diesel
Fuel System	High pressure common rail (ECU controlled timing)	IDI
Displacement	0.1 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Not Published
Engine Manufacturer	LS Mtron	TYM
Engine Power (Gross)	35 hp	35 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4

Weight with ROPS and Loader	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear	Single Gear Pump
Steering Flow	4.8 gpm	8.0 gpm
Implement Flow	8.2 gpm	4.3 gpm
Total Hydraulic Flow	13.0 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.0 gpm	12.3 gpm
No. of Optional Remote Valves	1 or 2	Up to 4
No. of Standard Remote Valves	0	0

PTO Rear	540 rpm (6-spline)	560 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,808 lb	3,306 lb
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,433 lb	2,425 lb

R3 Turf - Rear	41X14.00-20	Not Published
R3 Turf - Front	25X8.50-14	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	43X16-20	43x16.00-20
R4 Industrial - Front	25X8.50-14	28x8.50-15
R1 Agricultural - Rear	11.2-24	12.4-24
R1 Agricultural - Front	7.0-14	8.0-16

Coolant Capacity	7.5 qt	5.28 qt
Crankcase Capacity	5.8 qt	4.5 qt
Fuel Tank Capacity	7.4 gal	7.1 gal
Front Axle Fluid Capacity	6.9 qt	1.7 qt
Transmission / Hydraulic System Capacity	8.5 gal	HST: 9.8 gal; Gear: 8.9 gal

Loader Lift Height	91.5 in (to bucket pivot pin)	104.9 in
Loader Breakout Force	2,700 lb (bucket pivot pin)	3,422 lb
Quick Attach Loader System	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	1,500 lb (bucket pivot pin, max height)	2,200 lb

Clutch	HST: Not Applicable; Gear: Dry disc, 9.4 in	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	HST: Infinite (3-range); Gear: 12F/12R	HST: 3-Range; Gear: F12 x R12
Transmission Type	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	HST: 14.96 mph; Gear: 14.33 mph	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	HST: 14.96 mph; Gear: 13.63 mph	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock

Brakes	Wet disc	Wet, Multi-disc
Steering	Power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat

Wheelbase	69 in	65.7 in
Overall Width	54 in	56.3 in
Ground Clearance	13 in	14.4 in
Height to Top of ROPS	89 in	97.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	102 in
Overall Length with 3-Point Hitch	134 in	120.9 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

New Holland Workmaster 35 vs TYM 3515: Quick Answers

Which has more horsepower, the New Holland Workmaster 35 or the TYM 3515?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the New Holland Workmaster 35 or the TYM 3515?: The TYM 3515 leads on pto hp at 30 hp hp, compared to 25.7 hp hp for the New Holland Workmaster 35.
Which is heavier, the New Holland Workmaster 35 or the TYM 3515?: The TYM 3515 leads on weight at 4,191 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 35.
Which has more loader lift capacity, the New Holland Workmaster 35 or the TYM 3515?: The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 35.
Which has more three-point hitch lift capacity, the New Holland Workmaster 35 or the TYM 3515?: The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 35.
