New Holland Workmaster 40 vs TYM 4215C

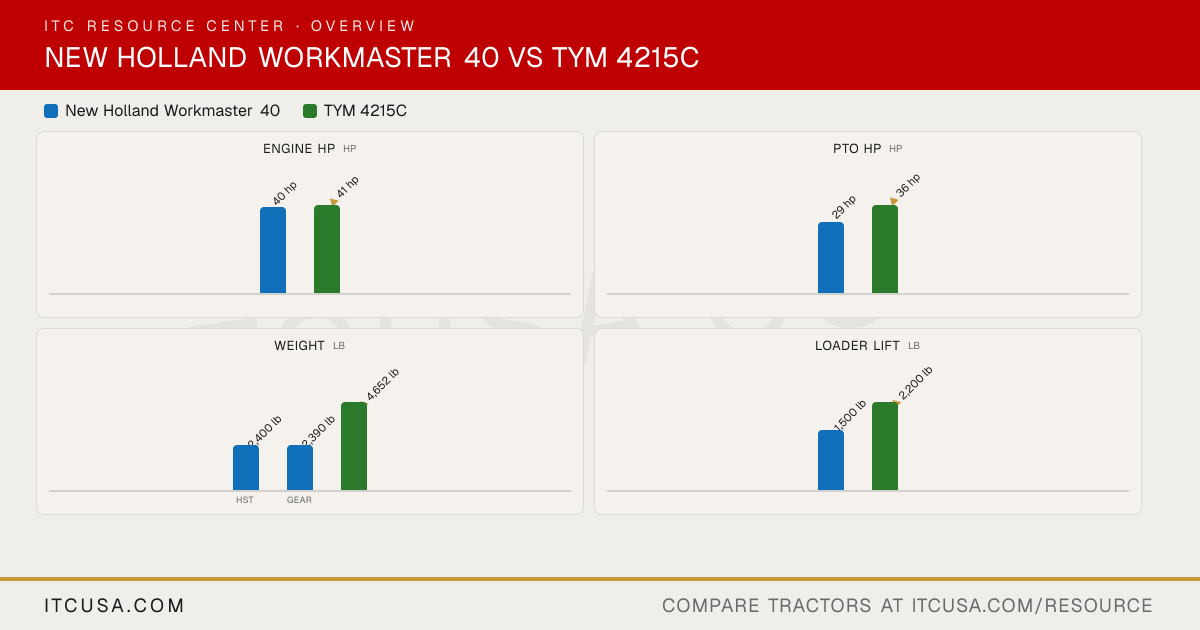

Across 9 measurable specs, the TYM 4215C leads 9 categories to 0. Machine pages: New Holland Workmaster 40 and TYM 4215C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 40	TYM4215C

▶Engine
PTO Power	29 hp	36 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Dual element dry air cleaner	Dry element
Engine Type	Turbocharged diesel	4-cylinder, naturally aspirated diesel
Fuel System	High pressure common rail (ECU controlled timing)	IDI
Displacement	0.1 in³	139.6 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Not Published
Engine Manufacturer	LS Mtron	TYM
Engine Power (Gross)	40 hp	41 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4
▶Weight
Weight with ROPS and Loader	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)	Not Applicable
Weight with Cab and Loader	Not Applicable	4,652 lb
▶Warranty
Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Gear	Dual gear pump
Steering Flow	4.8 gpm	5.2 gpm
Implement Flow	8.2 gpm	11.4 gpm
Total Hydraulic Flow	13.0 gpm	16.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.0 gpm	16.5 gpm
No. of Optional Remote Valves	1 or 2	2
No. of Standard Remote Valves	0	0
▶PTO & Hitch
PTO Rear	540 rpm (6-spline)	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,808 lb	3,306 lb
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,433 lb	2,425 lb
▶Tire Options
R3 Turf - Rear	41X14.00-20	41x14.00, 4PR
R3 Turf - Front	25X8.50-14	27x8.5-15, 6PR
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16-20	380/70-19.5, 6PR
R4 Industrial - Front	25X8.50-14	25x8.5-14, 6PR
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7.0-14	7.0-16
▶Fluid Capacity
Coolant Capacity	7.5 qt	5.8 qt
Crankcase Capacity	5.8 qt	4.8 qt
Fuel Tank Capacity	7.4 gal	7.1 gal
Front Axle Fluid Capacity	6.9 qt	6.8 qt
Transmission / Hydraulic System Capacity	8.5 gal	9.8 gal
▶Loader & Attachments
Loader Lift Height	91.5 in (to bucket pivot pin)	104.9 in
Loader Breakout Force	2,700 lb (bucket pivot pin)	3,422 lb
Quick Attach Loader System	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates	BL150C: Quick attachment assembly
Loader Lift Capacity (Full Height)	1,500 lb (bucket pivot pin, max height)	2,200 lb
▶Transmission & Drivetrain
Clutch	HST: Not Applicable; Gear: Dry disc, 9.4 in	Not Applicable
No. of Speeds	HST: Infinite (3-range); Gear: 12F/12R	3-Range
Transmission Type	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle	HST
Max Travel Speed (Forward)	HST: 14.96 mph; Gear: 14.33 mph	18 mph
Max Travel Speed (Reverse)	HST: 14.96 mph; Gear: 13.63 mph	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet disc	Wet, Multi disc
Steering	Power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat
▶Dimensions & Maneuverability
Wheelbase	69 in	65.7 in
Overall Width	54 in	55.6 in
Ground Clearance	13 in	13.1 in
Height to Top of ROPS	89 in	Not Applicable
Height to Top of Cab Model	Not Applicable	89.3 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	L: 124.8 in; R: 121.3 in
Overall Length with 3-Point Hitch	134 in	120.9 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

New Holland Workmaster 40 vs TYM 4215C: Quick Answers

Which has more horsepower, the New Holland Workmaster 40 or the TYM 4215C?

The TYM 4215C leads on engine hp at 41 hp hp, compared to 40 hp hp for the New Holland Workmaster 40.

Which has more PTO horsepower, the New Holland Workmaster 40 or the TYM 4215C?

The TYM 4215C leads on pto hp at 36 hp hp, compared to 29 hp hp for the New Holland Workmaster 40.

Which is heavier, the New Holland Workmaster 40 or the TYM 4215C?

The TYM 4215C leads on weight at 4,652 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 40.

Which has more loader lift capacity, the New Holland Workmaster 40 or the TYM 4215C?

The TYM 4215C leads on loader lift at 2,200 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.

Which has more three-point hitch lift capacity, the New Holland Workmaster 40 or the TYM 4215C?

The TYM 4215C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 40.
