Solis H24 cabin vs TYM 2400

Across 7 measurable specs, this matchup is a dead heat: 3 categories to the Solis H24 cabin, 3 to the TYM 2400, 1 tied. Machine pages: Solis H24 cabin and TYM 2400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

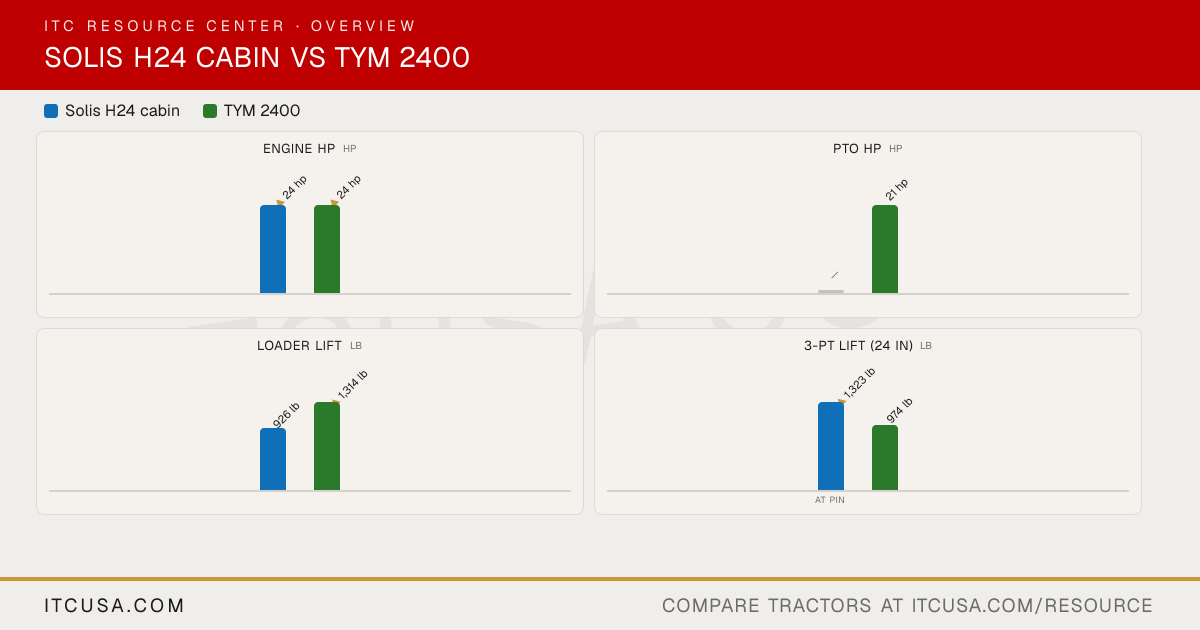

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	SolisH24 cabin	TYM2400

▶Engine
Engine Manufacturer	Mitsubishi	TYM
Engine Model	S3L2	T1100N2
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.42 in³	71.7 in³
Rated Engine Speed	2500 rpm	2850 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	Not Published	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Not Published
Air Cleaner	Not Published	Dry element
Fuel System	Not Published	IDI
Alternator	Not Published	60 A, 12 V
▶Hydraulics
Pump Type	Single, open center	Dual gear pump
Implement Flow	Not Published	4.7 gpm
Steering Flow	Not Published	3.3 gpm
Total Hydraulic Flow	3.98 gpm	7.9 gpm
Overall Hydraulic Pump Flow	3.98 gpm	7.9 gpm
Hydraulic System Type	Open center	Dual gear pump
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	None
No. of Optional Remote Valves	Not Published	2
▶Fluid Capacity
Fuel Tank Capacity	7 gal	6.0 gal
Coolant Capacity	1.1 gal	5.3 qt
Crankcase Capacity	1.11 gal	2.9 qt
Transmission / Hydraulic System Capacity	6.6 gal	3.7 gal
Front Axle Fluid Capacity	0.71 gal	3.5 qt
▶PTO & Hitch
PTO Type	Not Published	Live
PTO Rear	540 rpm at 2451 engine rpm	540/1000 rpm
Mid-PTO Availability	Yes, 2100 rpm at 2438 engine rpm	Available
Category, 3-Point Hitch	Category I (CAT-1N)	Category I
Hitch Lift Capacity	1,323 lb	1,499 lb
Hitch Lift Capacity (at 24”)	Not Published	974 lb
Lift Control Type	Not Published	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 2 range	2400R: Constant Mesh; 2400H: HST
No. of Speeds	HST with 2 range speeds	2400R: F6 x R2; 2400H: 2-Range
Max Travel Speed (Forward)	Not Published	2400R: 9.9 mph; 2400H: 12.1 mph
Max Travel Speed (Reverse)	Not Published	2400R: 3.9 mph; 2400H: 12.1 mph
Clutch	Without clutch (hydrostatic drive)	Dry single plate
Differential Lock & Limited Slip Options	Differential lock standard	Differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Oil immersed brakes, mechanical foot operated	Wet, Multi disc
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat
Front Axle Type	Four wheel drive (4WD), mechanical engagement	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	47 in	44.2 in
Wheelbase	61 in	59.1 in
Ground Clearance	9 in (front axle)	12.1 in
Min. Turn Radius without Brakes	Not Published	(L) 9.6 ft; (R) 9.5 ft
Height to Top of ROPS	Not Published	87.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93 in	Not Published
Overall Length	112 in (with 3-point hitch)	120.3 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,108 lb	2400R: 1,792 lb; 2400H: 1,829 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Industrial: 23x8.50-12 & 33x15.5-16.5; Turf 1: 23x8.50-12 & 33x15.5-16.5; Turf 2: 25x8.50-14 & 13.6x16; Agri: 6x12 & 8.3x20; Radial Agri: 6.5/80-12 & 280/70R18; Galaxy Pro: 220/55 R12 & 280/70 R16; R14: 23x8.50-12 R14T & 12-16.5 R14T; R14: 25x8.50-14 & 14-17.5	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	6x12; 6.5/80-12	6-12
R1 Agricultural - Rear	8.3x20; 280/70R18	9.5-16
R3 Turf - Front	23x8.50-12; 25x8.50-14	23x8.50-12
R3 Turf - Rear	33x15.5-16.5; 13.6x16	33x12.50-16.5
R4 Industrial - Front	23x8.50-12	23x8.50-12
R4 Industrial - Rear	33x15.5-16.5	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Skid steer quick attach	BL100S: Quick attach mechanism
Loader Model	HLN24 (NSL); HB24 (MSL)	BL100S
Loader Lift Height	HLN24: 82 in; HB24: 85 in	BL100S: 88.3 in
Loader Lift Capacity (Full Height)	HLN24: 1,500 lb; HB24: 1,411 lb	BL100S: 1,314 lb (at pivot pin)
Loader Breakout Force	HLN24: 1,565 lb; HB24: 1,146 lb	BL100S: 1,960 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	3 year full machine warranty; 7 year powertrain warranty	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99

Find a dealer near you→Find a TYM dealer near you→

Solis H24 cabin vs TYM 2400: Quick Answers

Which has more horsepower, the Solis H24 cabin or the TYM 2400?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which is heavier, the Solis H24 cabin or the TYM 2400?

The Solis H24 cabin leads on weight at 3,108 lb lb, compared to 1,829 lb lb for the TYM 2400.

Which has more loader lift capacity, the Solis H24 cabin or the TYM 2400?

The Solis H24 cabin leads on loader lift at 1,500 lb lb, compared to 1,314 lb lb for the TYM 2400.

Which has more three-point hitch lift capacity, the Solis H24 cabin or the TYM 2400?

The Solis H24 cabin leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 974 lb lb for the TYM 2400.
