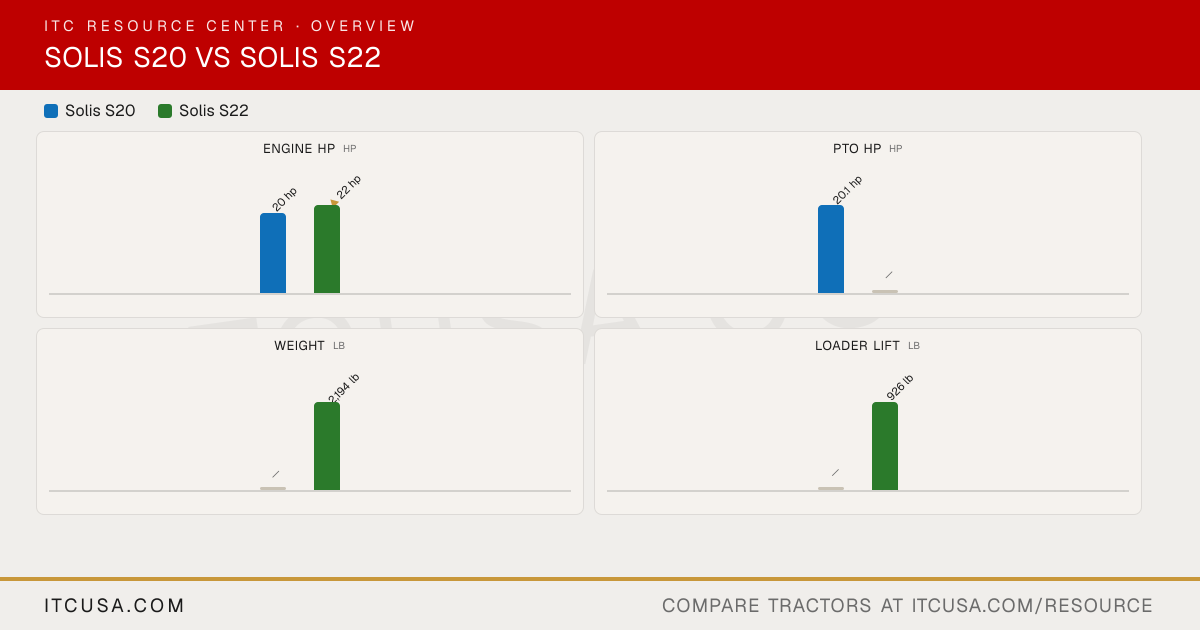

Every published spec, side by side, including the details the graphs above don't chart.
Spec
SolisS20
SolisS22
PTO Power
20.1 hp
—
Alternator
42 A, 12 V
42 A
Engine Type
Mitsubishi 3 Cylinder
diesel
Displacement
58.1 in³
67.1 in³
Engine Model
Mitsubishi MVL - 3E
Mitsubishi S3L2
No. of Cylinders
3
3
Rated Engine Speed
2700
—
Cooling System Type
Water Cooled
—
Engine Manufacturer
Mitsubishi
ITL
Engine Power (Gross)
20 hp
22 hp
Engine Emissions Constraints
Stage V
—
Fuel System
—
diesel
Total Hydraulic Flow
13.3 LPM
—
No. of Standard Remote Valves
—
1DA
PTO Type
Mechanical
Mechanical
PTO Rear
—
540
Hitch Lift Capacity
—
1323 lbs 1,322.8 lb
Category, 3-Point Hitch
—
I
R3 Turf - Rear
33x15.5-16.5
—
R3 Turf - Front
23x8.50-12
—
R4 Industrial - Rear
33x15.5-16.5
—
R4 Industrial - Front
23x8.50-12
—
R1 Agricultural - Rear
8.00 - 18
280/70R18
R1 Agricultural - Front
5.00 - 12
6.5/80-12
Clutch
Single Clutch
Single Clutch
No. of Speeds
6F+2R
6
Transmission Type
Sliding Mesh
6-speed gear
Max Travel Speed (Forward)
15.26 Km/Hr @ 2700
—
Differential Lock & Limited Slip Options
Yes, Foot Operated
mechanical rear
Brakes
Dry Drum Brakes
Wet disc brakes
Steering
Power Steering
Power steering
Front Axle Type
4WD
—
Frame Type
—
Two-post folding ROPS
Wheelbase
55.9 in
61.4 inches 61 in
Ground Clearance
7.9 in
—
Height to Top of ROPS
75.8 in
—
Height to Top of Cab Model
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
—
Height to Top of ROPS (folded)
77.6 in
—
Min. Turn Radius without Brakes
2.3 m
—
Overall Length with 3-Point Hitch
106.7 in
—
Weight with ROPS and Loader
—
2194 lbs 2,193.6 lb
Fuel Tank Capacity
—
6.9 gal
Loader Model
—
3200 / 3200V
Loader Lift Height
—
85
Loader Breakout Force
—
1058 / 1146
Loader Lift Capacity (Full Height)
—
926 / 1411
Solis S20 vs Solis S22: Quick Answers
Which has more horsepower, the Solis S20 or the Solis S22?
The Solis S22 leads on engine hp at 22 hp hp, compared to 20 hp hp for the Solis S20.
