24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
—
Pump Type
Gear
—
Steering Flow
N/A
—
Implement Flow
6.5 gpm (24.5 Lpm)
—
Total Hydraulic Flow
7.2 gpm
13.3 LPM
Hydraulic System Type
Open Center
—
Rear Remote Hydraulic Flow
NOT FOUND
—
Overall Hydraulic Pump Flow
7.2 gpm
—
No. of Optional Remote Valves
1 Pair
—
No. of Standard Remote Valves
1
—
PTO Rear
540 rpm
—
PTO Type
Independent
Mechanical
Lift Control Type
Hydraulic Position Control System
—
Hitch Lift Capacity
700 lb.
—
Mid-PTO Availability
Standard: 2200 rpm
—
Category, 3-Point Hitch
Category 1 Limited
—
Hitch Lift Capacity (at 24”)
700 lb
—
R3 Turf - Rear
26X12.00-12
33x15.5-16.5
R3 Turf - Front
18X8.5-10
23x8.50-12
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
—
R4 Industrial - Rear
26X12.00-12
33x15.5-16.5
R4 Industrial - Front
18X8.5-10
23x8.50-12
R1 Agricultural - Rear
26X12.00-12
8.00 - 18
R1 Agricultural - Front
18X8.5-10
5.00 - 12
Coolant Capacity
2.0 (1.9) qts (L)
—
Crankcase Capacity
5.2 (4.9) qts (L)
—
Fuel Tank Capacity
6.7 gal.
—
Front Axle Fluid Capacity
NOT FOUND
—
Transmission / Hydraulic System Capacity
NOT FOUND
—
Loader Model
FL6
—
Loader Lift Height
71.9 in.
—
Loader Breakout Force
1554 lb.
—
Quick Attach Loader System
Standard Quick Attach Mounting System
—
Loader Lift Capacity (Full Height)
608 lb.
—
Clutch
Clutch-free (Hydrostatic)
Single Clutch
No. of Speeds
2
6F+2R
Transmission Type
2-Range HST
Sliding Mesh
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
15.26 Km/Hr @ 2700
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
—
Differential Lock & Limited Slip Options
Std
Yes, Foot Operated
Brakes
Wet Multi-disc
Dry Drum Brakes
Steering
Hydrostatic Power Steering
Power Steering
Frame Type
Not Published
—
Front Axle Type
Not Published
4WD
Drawbar Capacity
7.7 kN / 1730 lb
—
Front Axle Rating
Not Published
—
Seat Suspension & Adjustability
Suspension Seat ■
—
Wheelbase
55.1 in.
55.9 in
Overall Width
46.0 in.
—
Ground Clearance
6.3 in.
7.9 in
Height to Top of ROPS
87.6 in.
75.8 in
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
77.6 in
Min. Turn Radius without Brakes
100.0 in.
2.3 m
Overall Length with 3-Point Hitch
99.3 in.
106.7 in

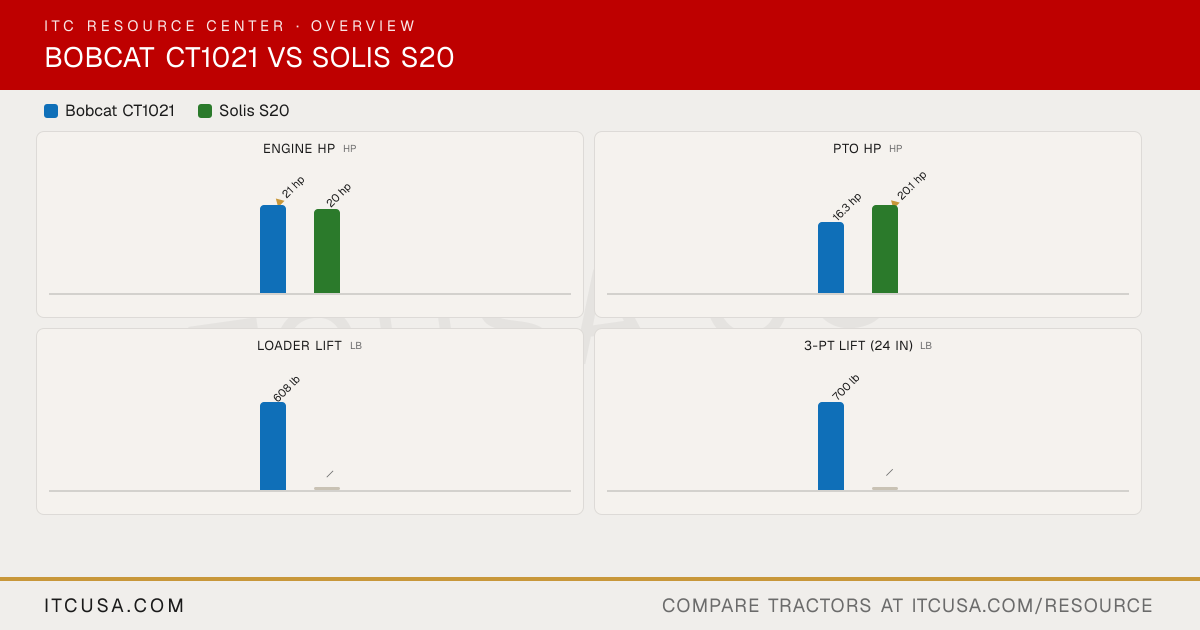

Bobcat CT1021 vs Solis S20: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Solis S20?
The Bobcat CT1021 leads on engine hp at 21 hp hp, compared to 20 hp hp for the Solis S20.
Which has more PTO horsepower, the Bobcat CT1021 or the Solis S20?
The Solis S20 leads on pto hp at 20.1 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
