Which has more horsepower, the Solis S22 or the Solis S24 Shuttle XL?

The Solis S24 Shuttle XL leads on engine hp at 24 hp hp, compared to 22 hp hp for the Solis S22.

Which has more loader lift capacity, the Solis S22 or the Solis S24 Shuttle XL?

The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 926 lb lb for the Solis S22.

Which has more three-point hitch lift capacity, the Solis S22 or the Solis S24 Shuttle XL?

They are effectively tied: both machines are rated at 1,323 lb lb for 3-pt lift (24 in).

Solis S22 vs Solis S24 Shuttle XL

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 5 measurable specs, the Solis S24 Shuttle XL leads 3 categories to 0 (2 tied). Machine pages: Solis S22 and Solis S24 Shuttle XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Solis S22	Solis S24 Shuttle XL
Engine HP (hp)	22 hp	▲ 24 hp
Weight (lb)	2,194 lb	—
Loader Lift (lb)	926 lb	▲ 1,411 lb
3-Pt Lift (24 in) (lb)	1,323 lb	1,323 lb
Lift Height (in)	85 in	85 in
Breakout Force (lbf)	1,058 lbf	▲ 1,146 lbf
Hydraulic Flow (gpm)	—	6.5 gpm

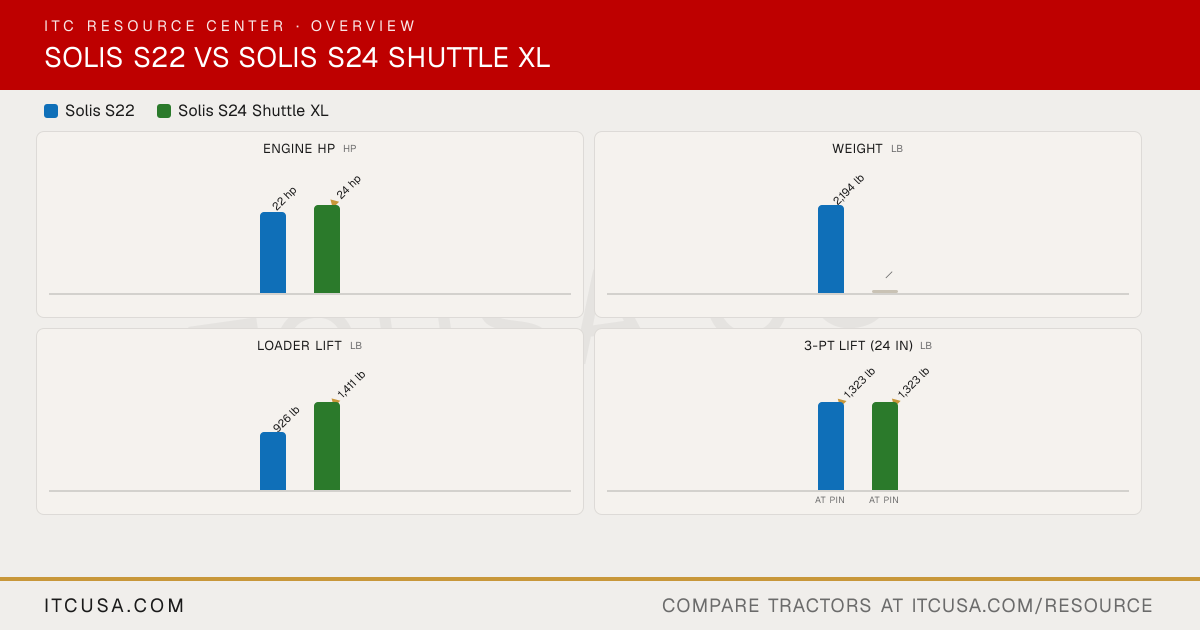

The headline numbers at a glance.

Solis S22Solis S24 Shuttle XL

Engine HPhp

22 hp

▲24 hp

PTO HPhp

—

Weightlb

2,194 lb

—

Loader Liftlb

926 lb

▲1,411 lb

3-Pt Lift (24 in)lb

▲1,323 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	SolisS22	SolisS24 Shuttle XL


Alternator	42 A	Not Published
Engine Type	diesel	Natural Aspiration
Fuel System	diesel	Not Published
Displacement	67.1 in³	80.4 in³
Engine Model	Mitsubishi S3L2	—
No. of Cylinders	3	3
Engine Manufacturer	ITL	Mitsubishi
Engine Power (Gross)	22 hp	24 hp
PTO Power	—	Not Published
Air Cleaner	—	Not Published
Rated Engine Speed	—	2500 rpm
Cooling System Type	—	Not Published
Engine Emissions Constraints	—	Not Published

Weight with ROPS and Loader	2194 lbs 2,193.6 lb	Not Published
Weight with Cab and Loader	—	Not Applicable

No. of Standard Remote Valves	1DA	1
Pump Type	—	Not Published
Steering Flow	—	Not Published
Implement Flow	—	Not Published
Total Hydraulic Flow	—	6.5 gpm
Hydraulic System Type	—	Not Published
Rear Remote Hydraulic Flow	—	Not Published
Overall Hydraulic Pump Flow	—	Not Published
No. of Optional Remote Valves	—	Not Published

PTO Rear	540	540/540E rpm
PTO Type	Mechanical	Mechanical
Hitch Lift Capacity	1323 lbs 1,322.8 lb	1,323 lb
Category, 3-Point Hitch	I	CAT-1N
Lift Control Type	—	Not Published
Mid-PTO Availability	—	Not Published
Hitch Lift Capacity (at 24”)	—	Not Published

R1 Agricultural - Rear	280/70R18	8.3x20; 8.3x24; 280/70 R18
R1 Agricultural - Front	6.5/80-12	6x12; 7x14; 6.5/80-12
R3 Turf - Rear	—	33x15.5-16.5; 13.6x16
R3 Turf - Front	—	23x8.50-12; 25x8.50-14
Tire Size & Options	—	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	—	33x15.5-16.5
R4 Industrial - Front	—	23x8.50-12

Fuel Tank Capacity	6.9 gal	5.8 gal
Coolant Capacity	—	Not Published
Crankcase Capacity	—	Not Published
Front Axle Fluid Capacity	—	Not Published
Transmission / Hydraulic System Capacity	—	Not Published

Loader Model	3200 / 3200V	—
Loader Lift Height	85	85 in
Loader Breakout Force	1058 / 1146	1,146 lb
Loader Lift Capacity (Full Height)	926 / 1411	1,411 lb
Quick Attach Loader System	—	XB24 (MSL)

Clutch	Single Clutch	Not Published
No. of Speeds	6	9F+9R
Transmission Type	6-speed gear	Constant Mesh with Synchromesh Shuttle transmission
Differential Lock & Limited Slip Options	mechanical rear	NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source
Max Travel Speed (Forward)	—	Not Published
Max Travel Speed (Reverse)	—	Not Published

Brakes	Wet disc brakes	Oil immersed brakes; mechanical, foot operated
Steering	Power steering	Power steering
Frame Type	Two-post folding ROPS	Not Published
Front Axle Type	—	4WD
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published
Seat Suspension & Adjustability	—	Not Published

Wheelbase	61.4 inches 61 in	61.8 in
Overall Width	—	47.83 in
Ground Clearance	—	9.44 in
Height to Top of ROPS	—	91.53 in
Height to Top of Cab Model	—	Not Applicable
Height to Top of ROPS (folded)	—	Not Published
Min. Turn Radius without Brakes	—	Not Published
Overall Length with 3-Point Hitch	—	113.98 in

Warranty Length & Coverage	—	3-year warranty; 7-year limited powertrain

Solis S22 vs Solis S24 Shuttle XL: Quick Answers

Which has more horsepower, the Solis S22 or the Solis S24 Shuttle XL?: The Solis S24 Shuttle XL leads on engine hp at 24 hp hp, compared to 22 hp hp for the Solis S22.
Which has more loader lift capacity, the Solis S22 or the Solis S24 Shuttle XL?: The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 926 lb lb for the Solis S22.
Which has more three-point hitch lift capacity, the Solis S22 or the Solis S24 Shuttle XL?: They are effectively tied: both machines are rated at 1,323 lb lb for 3-pt lift (24 in).
