Which has more horsepower, the TYM 2400 or the TYM T3025C?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the TYM 2400 or the TYM T3025C?

They are effectively tied: both machines are rated at 21 hp hp for pto hp.

Which has more loader lift capacity, the TYM 2400 or the TYM T3025C?

The TYM T3025C leads on loader lift at 2,200 lb lb, compared to 1,314 lb lb for the TYM 2400.

Which has more three-point hitch lift capacity, the TYM 2400 or the TYM T3025C?

The TYM T3025C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 974 lb lb for the TYM 2400.

TYM 2400 vs TYM T3025C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T3025C leads 6 categories to 0 (2 tied). Machine pages: TYM 2400 and TYM T3025C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 2400	TYM T3025C
Engine HP (hp)	24 hp	24 hp
PTO HP (hp)	21 hp	21 hp
Loader Lift (lb)	1,314 lb	▲ 2,200 lb
3-Pt Lift (24 in) (lb)	974 lb	▲ 2,425 lb
Lift Height (in)	88.3 in	▲ 104.9 in
Breakout Force (lbf)	1,960 lbf	▲ 3,422 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 11.9 gpm
Travel Speed (mph)	12.1 mph	▲ 14.6 mph

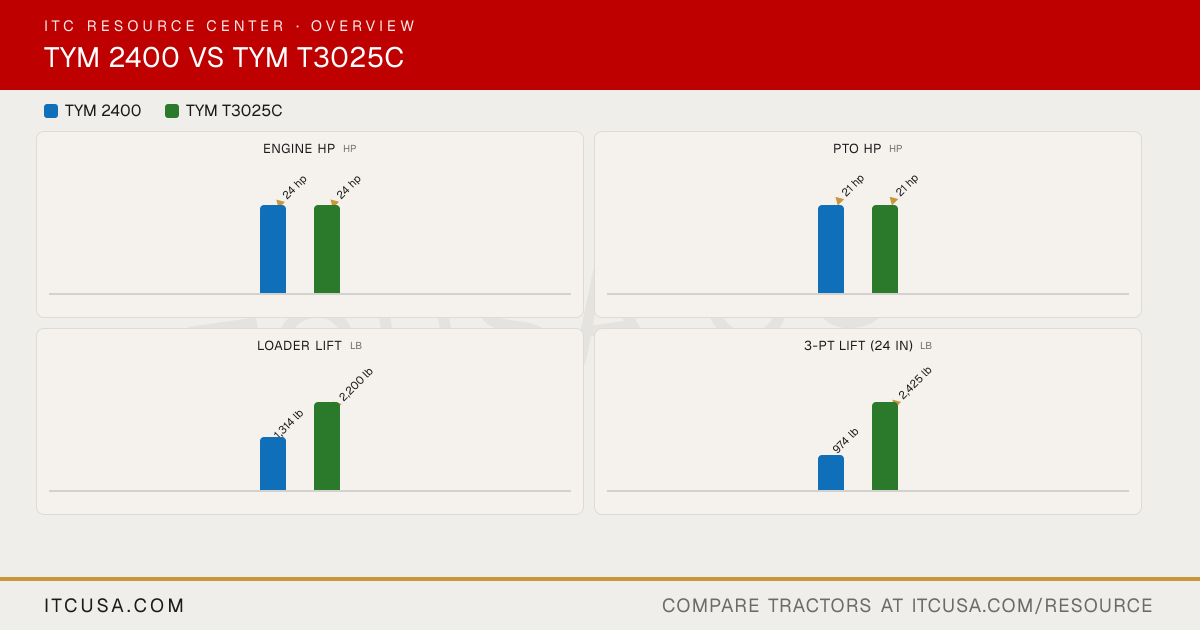

The headline numbers at a glance.

TYM 2400TYM T3025C

Engine HPhp

▲24 hp

PTO HPhp

▲21 hp

Weightlb

—

Loader Liftlb

1,314 lb

▲2,200 lb

3-Pt Lift (24 in)lb

974 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM2400	TYMT3025C


PTO Power	21 hp	21 hp
Alternator	60 A, 12 V	70 A, 12 V
Air Cleaner	Dry element	Dry element
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	71.7 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2850 rpm	2100 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	TYM
Engine Power (Gross)	24 hp	24 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Dual gear pump	Dual gear pump
Steering Flow	3.3 gpm	4.2 gpm
Implement Flow	4.7 gpm	7.7 gpm
Total Hydraulic Flow	7.9 gpm	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.9 gpm	11.9 gpm
No. of Optional Remote Valves	2	Not Published
No. of Standard Remote Valves	0	Loader: 4; Rear: 0

PTO Rear	540/1000 rpm	540 rpm
PTO Type	Live	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,499 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	974 lb	2,425 lb

R3 Turf - Rear	33x12.50-16.5	Not Applicable
R3 Turf - Front	23x8.50-12	Not Applicable
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, Golf Tires, R4 Industrial
R4 Industrial - Rear	12-16.5	380/70-19.5, 6PR
R4 Industrial - Front	23x8.50-12	Not Published
R1 Agricultural - Rear	9.5-16	11.2-24, 8PR
R1 Agricultural - Front	6.0-12	7-16, 6PR

Coolant Capacity	5.3 qt	5.3 qt
Crankcase Capacity	2.9 qt	4.5 qt
Fuel Tank Capacity	6.0 gal	7.1 gal
Front Axle Fluid Capacity	3.5 qt	6.8 qt
Transmission / Hydraulic System Capacity	3.7 gal	9.8 gal

Loader Lift Height	88.3 in	104.9 in
Loader Breakout Force	1,960 lb	3,422 lb
Quick Attach Loader System	BL100S: Skid-type quick attachment	L3048: Quick attach mechanism
Loader Lift Capacity (Full Height)	1,314 lb	2,200 lb

Clutch	Dry single plate	Not Applicable
No. of Speeds	Gear: F6 x R2; HST: 2-Range	3-range
Transmission Type	Gear: Constant Mesh; HST: HST	Hydrostatic (HST)
Max Travel Speed (Forward)	Gear: 9.9 mph; HST: 12.1 mph	14.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet, multi disc	Wet, multi-disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Comfortable suspension seat	Not Published

Wheelbase	59.1 in	65.7 in
Overall Width	44.2 in	55.6 in
Ground Clearance	12.1 in	13.1 in
Height to Top of ROPS	87.3 in	Not Applicable
Height to Top of Cab Model	Not Applicable	89.3 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	115.4 in	L: 105.51 in; R: 104.72 in
Overall Length with 3-Point Hitch	120.3 in	120.9 in

Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

TYM 2400 vs TYM T3025C: Quick Answers

Which has more horsepower, the TYM 2400 or the TYM T3025C?: They are effectively tied: both machines are rated at 24 hp hp for engine hp.
Which has more PTO horsepower, the TYM 2400 or the TYM T3025C?: They are effectively tied: both machines are rated at 21 hp hp for pto hp.
Which has more loader lift capacity, the TYM 2400 or the TYM T3025C?: The TYM T3025C leads on loader lift at 2,200 lb lb, compared to 1,314 lb lb for the TYM 2400.
Which has more three-point hitch lift capacity, the TYM 2400 or the TYM T3025C?: The TYM T3025C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 974 lb lb for the TYM 2400.
