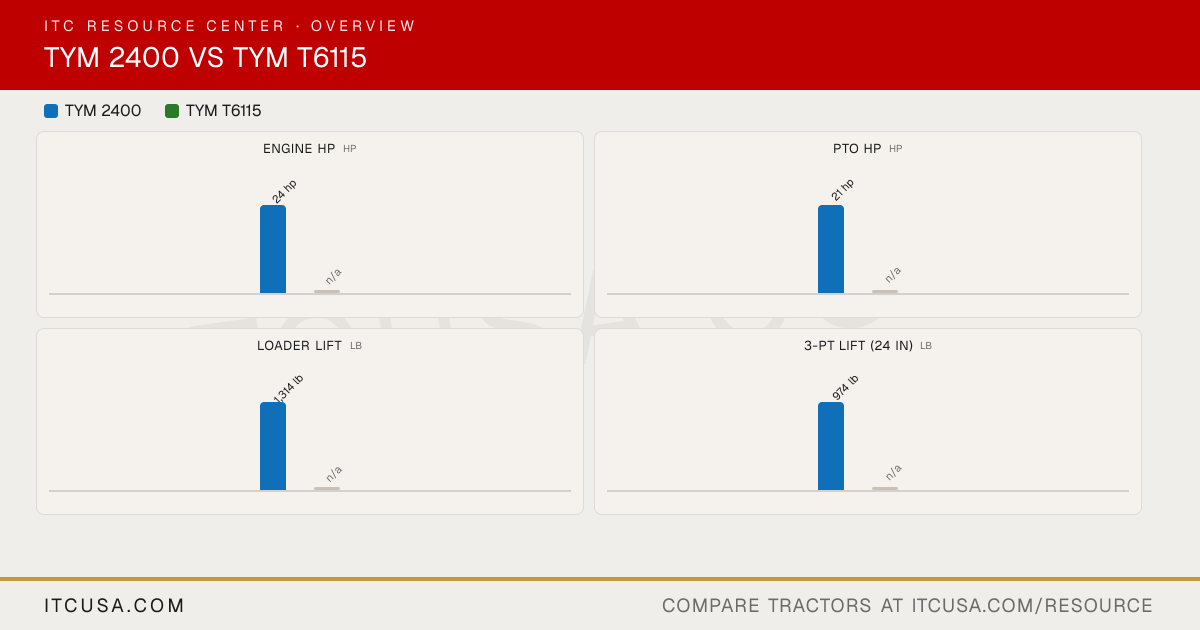

Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM2400
TYMT6115
Engine Manufacturer
TYM
n/a
Engine Type
3-cylinder, naturally aspirated diesel
n/a
No. of Cylinders
3
n/a
Displacement
71.7 in³
n/a
Rated Engine Speed
2850 rpm
n/a
Engine Power (Gross)
24 hp
n/a
PTO Power
21 hp
n/a
Engine Emissions Constraints
Tier 4
n/a
Cooling System Type
Not Published
n/a
Air Cleaner
Dry element
n/a
Fuel System
IDI
n/a
Alternator
60 A, 12 V
n/a
Pump Type
Dual gear pump
n/a
Implement Flow
4.7 gpm
n/a
Steering Flow
3.3 gpm
n/a
Total Hydraulic Flow
7.9 gpm
n/a
Overall Hydraulic Pump Flow
7.9 gpm
n/a
Hydraulic System Type
Open center
n/a
Rear Remote Hydraulic Flow
Not Published
n/a
No. of Standard Remote Valves
0
n/a
No. of Optional Remote Valves
2
n/a
Fuel Tank Capacity
6.0 gal
n/a
Coolant Capacity
5.3 qt
n/a
Crankcase Capacity
2.9 qt
n/a
Transmission / Hydraulic System Capacity
3.7 gal
n/a
Front Axle Fluid Capacity
3.5 qt
n/a
PTO Type
Live
n/a
PTO Rear
540/1000 rpm
n/a
Mid-PTO Availability
Not Published
n/a
Category, 3-Point Hitch
Category I
n/a
Hitch Lift Capacity
1,499 lb
n/a
Hitch Lift Capacity (at 24”)
974 lb
n/a
Lift Control Type
Position control
n/a
Transmission Type
Gear: Constant Mesh; HST: HST
n/a
No. of Speeds
Gear: F6 x R2; HST: 2-Range
n/a
Max Travel Speed (Forward)
Gear: 9.9 mph; HST: 12.1 mph
n/a
Max Travel Speed (Reverse)
Not Published
n/a
Clutch
Dry single plate
n/a
Differential Lock & Limited Slip Options
Not Published
n/a
Frame Type
Not Published
n/a
Steering
Hydrostatic
n/a
Brakes
Wet, multi disc
n/a
Seat Suspension & Adjustability
Comfortable suspension seat
n/a
Front Axle Type
4WD
n/a
Front Axle Rating
Not Published
n/a
Drawbar Capacity
Not Published
n/a
Overall Length with 3-Point Hitch
120.3 in
n/a
Overall Width
44.2 in
n/a
Wheelbase
59.1 in
n/a
Ground Clearance
12.1 in
n/a
Min. Turn Radius without Brakes
115.4 in
n/a
Height to Top of ROPS
87.3 in
n/a
Height to Top of ROPS (folded)
Not Published
n/a
Height to Top of Cab Model
Not Applicable
n/a
Weight with ROPS and Loader
Not Published
n/a
Weight with Cab and Loader
Not Applicable
n/a
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
n/a
R1 Agricultural - Front
6.0-12
n/a
R1 Agricultural - Rear
9.5-16
n/a
R3 Turf - Front
23x8.50-12
n/a
R3 Turf - Rear
33x12.50-16.5
n/a
R4 Industrial - Front
23x8.50-12
n/a
R4 Industrial - Rear
12-16.5
n/a
Quick Attach Loader System
BL100S: Skid-type quick attachment
n/a
Loader Lift Height
88.3 in
n/a
Loader Lift Capacity (Full Height)
1,314 lb
n/a
Loader Breakout Force
1,960 lb
n/a
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
