Which has more horsepower, the TYM 2610 or the TYM T224?

The TYM 2610 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the TYM T224.

Which has more PTO horsepower, the TYM 2610 or the TYM T224?

The TYM 2610 leads on pto hp at 18 hp hp, compared to 15.1 hp hp for the TYM T224.

Which has more loader lift capacity, the TYM 2610 or the TYM T224?

The TYM 2610 leads on loader lift at 1,373 lb lb, compared to 617 lb lb for the TYM T224.

Which has more three-point hitch lift capacity, the TYM 2610 or the TYM T224?

The TYM 2610 leads on 3-pt lift (24 in) at 974 lb lb, compared to 679 lb lb for the TYM T224.

TYM 2610 vs TYM T224

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM 2610 leads 8 categories to 0. Machine pages: TYM 2610 and TYM T224.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 2610	TYM T224
Engine HP (hp)	▲ 24 hp	21.5 hp
PTO HP (hp)	▲ 18 hp	15.1 hp
Weight (lb)	2,760 lb	—
Loader Lift (lb)	▲ 1,373 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 974 lb	679 lb
Lift Height (in)	▲ 91.1 in	71.3 in
Breakout Force (lbf)	▲ 2,077 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	6.7 gpm
Travel Speed (mph)	▲ 17 mph	8.4 mph

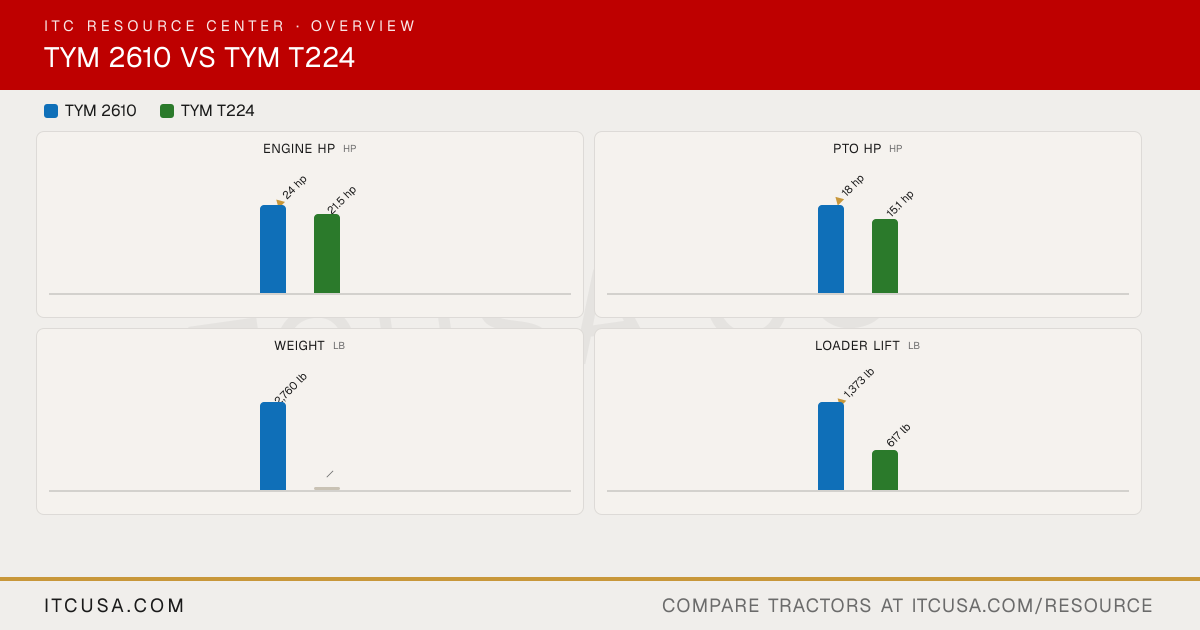

The headline numbers at a glance.

TYM 2610TYM T224

Engine HPhp

▲24 hp

21.5 hp

PTO HPhp

▲18 hp

15.1 hp

Weightlb

2,760 lb

—

Loader Liftlb

▲1,373 lb

617 lb

3-Pt Lift (24 in)lb

▲974 lb

679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM2610	TYMT224


PTO Power	18 hp	15.1 hp
Alternator	60 A, 12 V	40 A, 12 V
Air Cleaner	Dry element	Single dry
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	71.7 in³	60.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	3200 rpm
Cooling System Type	liquid-cooled	Water-cooled
Engine Manufacturer	TYM	Yanmar
Engine Power (Gross)	24 hp	21.5 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	2,760 lb	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Single Gear Pump	Single gear pump
Steering Flow	4.3 gpm \| 16.2 l/min	2.1 gpm
Implement Flow	3.1 gpm \| 11.7 l/min	4.6 gpm
Total Hydraulic Flow	7.4 gpm \| 28 l/min	6.7 gpm
Hydraulic System Type	open center	Open center
Rear Remote Hydraulic Flow	3.1 gpm 11.7 lpm	Not Published
Overall Hydraulic Pump Flow	Total: 7.9 gpm [Implement: 4.65 gpm \| Steering: 3.3 gpm] - Note: older/dealer spec sheets also cite 7.4 gpm total; 7.9 gpm appears on 2025 model listing	6.7 gpm
No. of Optional Remote Valves	Optional (2)	1
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Live	Independent
Lift Control Type	Position	Position control
Hitch Lift Capacity	1499 lb \| 1,499.1 lb	1,100 lb
Mid-PTO Availability	Mid-PTO available; 2,500 RPM mid-mount PTO option	Available
Category, 3-Point Hitch	I	Category I (Narrow)
Hitch Lift Capacity (at 24”)	974 lb	679 lb

R3 Turf - Rear	33x12.50-16.5	Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front	23x8.50-12	Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options	Front: R1 Agricultural 6-12 \| R3 Turf 23x8.50-12 \| R4 Industrial 25x8.50-14; Rear: R1 Agricultural 9.5-16 \| R3 Turf 33x12.50-16.5 \| R4 Industrial 14-17.5	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14-17.5	WT300 26x12.00-12 NHS TL 4PR
R4 Industrial - Front	25x8.50-14	WT300 18x8.5-10 NHS TL 4PR
R1 Agricultural - Rear	9.5-16	BAR R 24x12.00-12
R1 Agricultural - Front	6-12	BAR F 16x6.50-8

Coolant Capacity	5.3 qt \| 1.3 gal	3.7 qt
Crankcase Capacity	3.2 qt \| 0.8 gal	1.9 qt
Fuel Tank Capacity	6.0 gal \| 6.1 gal	6.6 gal
Front Axle Fluid Capacity	0.8 qt \| 0.2 gal	2.6 qt
Transmission / Hydraulic System Capacity	2.6 gal \| 2.6 gal	3.6 gal

Loader Lift Height	91.1 in. \| 91.1 in	71.3 in
Loader Breakout Force	2077 lb \| 2,076.7 lbf	1,235 lb
Quick Attach Loader System	Skid Steer style quick attach; BL110S loader with skid steer quick attach bucket (50" standard bucket)	TX22H: Quick attach mechanism
Loader Lift Capacity (Full Height)	1373 lb \| 1,373.5 lbf	617 lb

Clutch	Dry Single Plate	Not applicable
No. of Speeds	3-Range	Infinite 2-Range
Transmission Type	HST	HST
Max Travel Speed (Forward)	17 mph \| 27.3 kmph	8.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock

Brakes	Wet, Multi-disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Four-wheel drive	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Comfortable suspension seat	Not Published

Wheelbase	65.7 in. \| 65.7 in	53.1 in
Overall Width	53.8 in. \| 53.9 in	44.5 in
Ground Clearance	15.1 in. \| 15 in	8.3 in
Height to Top of ROPS	91.5 in. \| 91.7 in	86.6 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not specified in searched sources; ROPS is confirmed foldable but folded height not published	Not Published
Min. Turn Radius without Brakes	9.6 ft \| 2.9 m	86.6 in
Overall Length with 3-Point Hitch	122.9 in. \| 122.9 in	94.2 in

Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

TYM 2610 vs TYM T224: Quick Answers

Which has more horsepower, the TYM 2610 or the TYM T224?: The TYM 2610 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the TYM T224.
Which has more PTO horsepower, the TYM 2610 or the TYM T224?: The TYM 2610 leads on pto hp at 18 hp hp, compared to 15.1 hp hp for the TYM T224.
Which has more loader lift capacity, the TYM 2610 or the TYM T224?: The TYM 2610 leads on loader lift at 1,373 lb lb, compared to 617 lb lb for the TYM T224.
Which has more three-point hitch lift capacity, the TYM 2610 or the TYM T224?: The TYM 2610 leads on 3-pt lift (24 in) at 974 lb lb, compared to 679 lb lb for the TYM T224.
