TYM 5520C vs TYM T4058PC

Across 9 measurable specs, the TYM T4058PC leads 8 categories to 0 (1 tied). Machine pages: TYM 5520C and TYM T4058PC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM5520C	TYMT4058PC

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	T2300T3	T2300T1-UTC_4
Engine Type	4-cylinder, turbocharged diesel	4-cylinder, turbocharged diesel
No. of Cylinders	4	4
Displacement	139.5 in³	139.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	55 hp	58 hp
PTO Power	44 hp	48 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Not Published
Air Cleaner	Dry element	Dry element
Fuel System	IDI (indirect injection)	IDI (indirect injection)
Alternator	70 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Single gear pump
Implement Flow	11.4 gpm	11.4 gpm
Steering Flow	5.2 gpm	5.13 gpm
Total Hydraulic Flow	16.5 gpm	16.5 gpm
Overall Hydraulic Pump Flow	16.5 gpm	16.5 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4	Loader: 6; Rear: 6
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	15.3 gal
Coolant Capacity	8.3 qt	6.2 qt
Crankcase Capacity	4.8 qt	4.8 qt
Transmission / Hydraulic System Capacity	5520C: 10.3 gal; 5520CH: 11.1 gal	11.62 gal
Front Axle Fluid Capacity	6.8 qt	6.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540/750 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category II
Hitch Lift Capacity	3,306 lb	4,409 lb
Hitch Lift Capacity (at 24”)	2,425 lb	3,748 lb
Lift Control Type	Position control	Position and draft control (electronic)
▶Transmission & Drivetrain
Transmission Type	5520C: Synchromesh; 5520CH: HST	Power shuttle
No. of Speeds	5520C: F16 x R16; 5520CH: 4-Range	F12 x R12
Max Travel Speed (Forward)	5520C: 16 mph; 5520CH: 19.5 mph	24.04 mph
Max Travel Speed (Reverse)	5520C: 15.2 mph; 5520CH: 19.5 mph	19.39 mph
Clutch	5520C: Dry single type; 5520CH: N/A (HST)	Wet, multi-disc
Differential Lock & Limited Slip Options	Standard differential lock	Standard differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic	Hydrostatic
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Suspension seat	Suspension seat
Front Axle Type	4WD (selectable 2WD/4WD)	4WD (selectable 2WD/4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	141.5 in
Overall Width	64.9 in	68.9 in
Wheelbase	71.1 in	78.7 in
Ground Clearance	15.5 in	18.1 in
Min. Turn Radius without Brakes	L: 128.7 in; R: 126.0 in	L: 139.7 in; R: 141.9 in
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97 in	99.2 in
▶Weight
Tractor Weight (Base)	4,349 lb	4,951.5 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	6,251.5 lb
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf (golf), R4 Industrial
R1 Agricultural - Front	9.5-16	9.5-20
R1 Agricultural - Rear	13.6-26	14.9-28
R3 Turf - Front	27x8.5-15 / 29x12.5-15	29x12.5-15
R3 Turf - Rear	41x14-20 / 44x18-20	44x18.00-20
R4 Industrial - Front	12-16.5	10.5/80-18
R4 Industrial - Rear	17.5Lx24	16.9-24
▶Loader & Attachments
Quick Attach Loader System	BL200C: Quick attach mechanism	L4058PC: Quick attach mechanism
Loader Model	BL200C	L4058PC
Loader Lift Height	BL200C: 106.6 in	L4058PC: 117.5 in
Loader Lift Capacity (Full Height)	BL200C: 2,701 lb	L4058PC: 3,437 lb
Loader Breakout Force	BL200C: 3,660 lb	L4058PC: 4,742 lb
▶Warranty
Warranty Length & Coverage	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM Legacy Branson 20 Series Fuel Tank Guard $249.99 TYM Legacy Branson 20 Series Hydraulic Valve Guard $249.99	None tagged yet

Find a TYM dealer near you→

TYM 5520C vs TYM T4058PC: Quick Answers

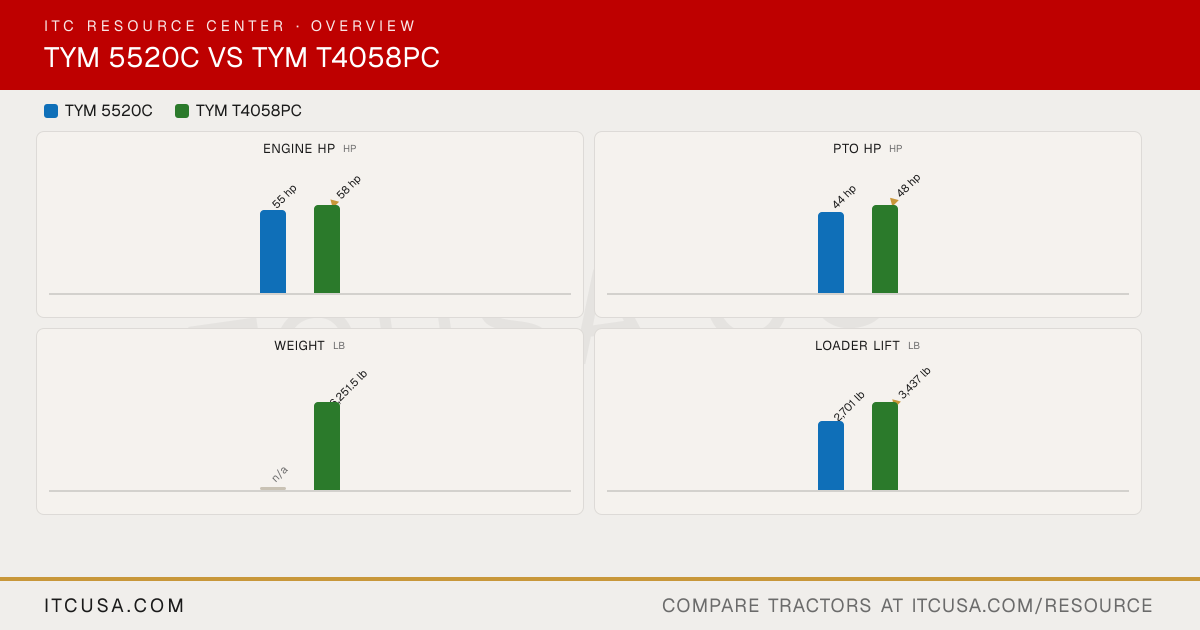

Which has more horsepower, the TYM 5520C or the TYM T4058PC?

The TYM T4058PC leads on engine hp at 58 hp hp, compared to 55 hp hp for the TYM 5520C.

Which has more PTO horsepower, the TYM 5520C or the TYM T4058PC?

The TYM T4058PC leads on pto hp at 48 hp hp, compared to 44 hp hp for the TYM 5520C.

Which is heavier, the TYM 5520C or the TYM T4058PC?

The TYM T4058PC leads on weight at 4,951.5 lb lb, compared to 4,349 lb lb for the TYM 5520C.

Which has more loader lift capacity, the TYM 5520C or the TYM T4058PC?

The TYM T4058PC leads on loader lift at 3,437 lb lb, compared to 2,701 lb lb for the TYM 5520C.

Which has more three-point hitch lift capacity, the TYM 5520C or the TYM T4058PC?

The TYM T4058PC leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the TYM 5520C.
