Which has more horsepower, the TYM T254 or the TYM T3025C?

The TYM T3025C leads on engine hp at 24 hp hp, compared to 23.9 hp hp for the TYM T254.

Which has more PTO horsepower, the TYM T254 or the TYM T3025C?

The TYM T3025C leads on pto hp at 21 hp hp, compared to 18.8 hp hp for the TYM T254.

Which has more loader lift capacity, the TYM T254 or the TYM T3025C?

The TYM T3025C leads on loader lift at 2,200 lb lb, compared to 948 lb lb for the TYM T254.

Which has more three-point hitch lift capacity, the TYM T254 or the TYM T3025C?

The TYM T3025C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,101 lb lb for the TYM T254.

TYM T254 vs TYM T3025C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T3025C leads 8 categories to 0. Machine pages: TYM T254 and TYM T3025C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T254	TYM T3025C
Engine HP (hp)	23.9 hp	▲ 24 hp
PTO HP (hp)	18.8 hp	▲ 21 hp
Loader Lift (lb)	948 lb	▲ 2,200 lb
3-Pt Lift (24 in) (lb)	1,101 lb	▲ 2,425 lb
Lift Height (in)	75 in	▲ 104.9 in
Breakout Force (lbf)	1,680 lbf	▲ 3,422 lbf
Hydraulic Flow (gpm)	6.9 gpm	▲ 11.9 gpm
Travel Speed (mph)	11 mph	▲ 14.6 mph

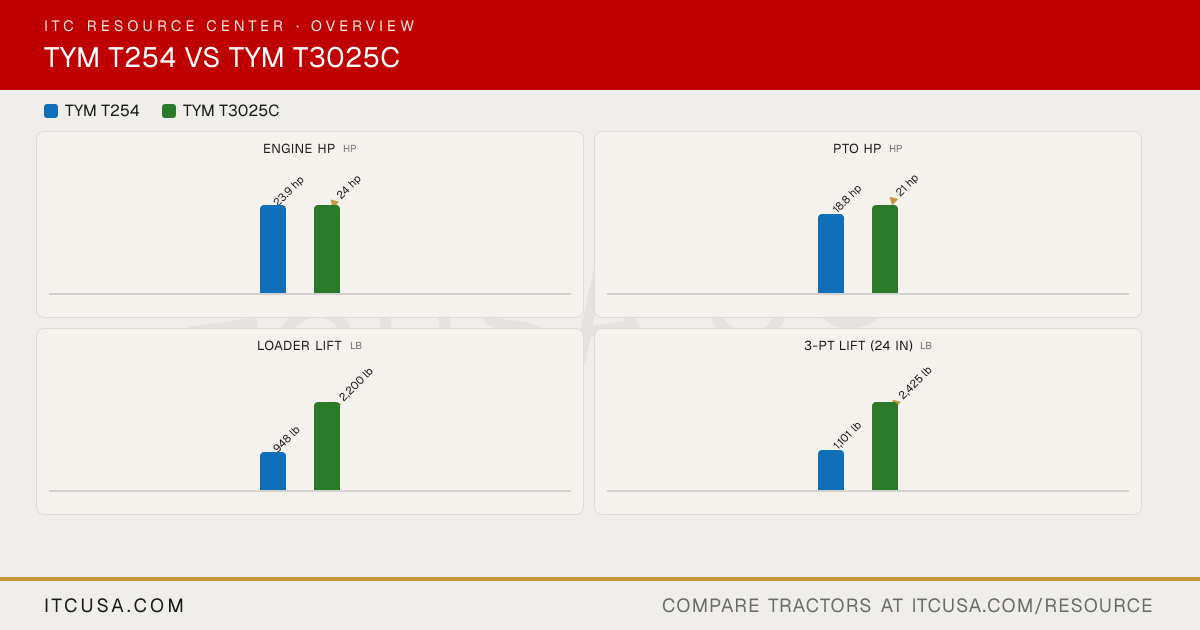

The headline numbers at a glance.

TYM T254TYM T3025C

Engine HPhp

23.9 hp

▲24 hp

PTO HPhp

18.8 hp

▲21 hp

Weightlb

—

Loader Liftlb

948 lb

▲2,200 lb

3-Pt Lift (24 in)lb

1,101 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT254	TYMT3025C


PTO Power	18.8 hp	21 hp
Alternator	40 A, 12 V	70 A, 12 V
Air Cleaner	Single dry	Dry element
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	77.3 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	2100 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	Yanmar	TYM
Engine Power (Gross)	23.9 hp	24 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Single gear pump	Dual gear pump
Steering Flow	2.8 gpm	4.2 gpm
Implement Flow	4.2 gpm	7.7 gpm
Total Hydraulic Flow	6.9 gpm	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.9 gpm	11.9 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	0	Loader: 4; Rear: 0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,214 lb	3,306 lb
Mid-PTO Availability	Available	Not Published
Category, 3-Point Hitch	Category I (Narrow)	Category I
Hitch Lift Capacity (at 24”)	1,101 lb	2,425 lb

R3 Turf - Rear	29x12.50-15	Not Applicable
R3 Turf - Front	20x8.00-10	Not Applicable
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)	R1 Agricultural, Golf Tires, R4 Industrial
R4 Industrial - Rear	27x12.5-15; 12-16.5	380/70-19.5, 6PR
R4 Industrial - Front	20x8.00-10; 23x8.50-12	Not Published
R1 Agricultural - Rear	9.5-16	11.2-24, 8PR
R1 Agricultural - Front	6.0-12	7-16, 6PR

Coolant Capacity	3.8 qt	5.3 qt
Crankcase Capacity	2.9 qt	4.5 qt
Fuel Tank Capacity	5.8 gal	7.1 gal
Front Axle Fluid Capacity	3.7 qt	6.8 qt
Transmission / Hydraulic System Capacity	3.7 gal	9.8 gal

Loader Lift Height	75 in	104.9 in
Loader Breakout Force	1,680 lb	3,422 lb
Quick Attach Loader System	TX25P: Quick attach mechanism	L3048: Quick attach mechanism
Loader Lift Capacity (Full Height)	948 lb	2,200 lb

Clutch	Not applicable	Not Applicable
No. of Speeds	Infinite 2-Range	3-range
Transmission Type	HST	Hydrostatic (HST)
Max Travel Speed (Forward)	11.0 mph	14.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet disc	Wet, multi-disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Ergonomic seating	Not Published

Wheelbase	57.5 in	65.7 in
Overall Width	45.8 in	55.6 in
Ground Clearance	9.4 in	13.1 in
Height to Top of ROPS	91.3 in	Not Applicable
Height to Top of Cab Model	Not Published	89.3 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	100 in	L: 105.51 in; R: 104.72 in
Overall Length with 3-Point Hitch	100.5 in	120.9 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection RK24/T254 /BRANSON 2505/EMAX 25 Skid Plate $89.99	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

TYM T254 vs TYM T3025C: Quick Answers

Which has more horsepower, the TYM T254 or the TYM T3025C?: The TYM T3025C leads on engine hp at 24 hp hp, compared to 23.9 hp hp for the TYM T254.
Which has more PTO horsepower, the TYM T254 or the TYM T3025C?: The TYM T3025C leads on pto hp at 21 hp hp, compared to 18.8 hp hp for the TYM T254.
Which has more loader lift capacity, the TYM T254 or the TYM T3025C?: The TYM T3025C leads on loader lift at 2,200 lb lb, compared to 948 lb lb for the TYM T254.
Which has more three-point hitch lift capacity, the TYM T254 or the TYM T3025C?: The TYM T3025C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,101 lb lb for the TYM T254.
