Bad Boy Tractors 1022 vs Kioti CK2620

Across 9 measurable specs, the Kioti CK2620 leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and Kioti CK2620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	KiotiCK2620

▶Engine
Engine Manufacturer	Yanmar	KIOTI
Engine Model	3TNM74F	CK2620: 3A165LWM-U; CK2620H, CK2620SEH CAB: 3A165LWH-U
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder, in-line, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	60.6 in³	100.5 in³
Rated Engine Speed	3200 rpm	2400 rpm
Engine Power (Gross)	21.5 hp	24.5 hp
PTO Power	15.4 hp	CK2620: 19.5 hp; CK2620H, CK2620SEH CAB: 18.7 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Dry element
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	Not Published
▶Hydraulics
Pump Type	Single gear pump with flow divider	Gear
Implement Flow	4.17 gpm	CK2620, CK2620H: 7.14 gpm; CK2620SEH CAB: 6.86 gpm
Steering Flow	2.11 gpm	CK2620, CK2620H: 4.59 gpm; CK2620SEH CAB: 4.46 gpm
Total Hydraulic Flow	6.3 gpm	CK2620, CK2620H: 11.73 gpm; CK2620SEH CAB: 11.33 gpm
Overall Hydraulic Pump Flow	6.97 gpm	CK2620, CK2620H: 11.73 gpm; CK2620SEH CAB: 11.33 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	CK2620, CK2620H: 0; CK2620SEH CAB: 2
No. of Optional Remote Valves	1	CK2620, CK2620H: 2
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	9.0 gal
Coolant Capacity	3.7 qt	0.89 gal
Crankcase Capacity	2.1 qt	1.6 gal
Transmission / Hydraulic System Capacity	3.6 gal	5.8 gal
Front Axle Fluid Capacity	2.6 qt	1.6 gal
▶PTO & Hitch
PTO Type	Independent	CK2620, CK2620H: Live; CK2620SEH CAB: Independent
PTO Rear	540 rpm	540 rpm (1-3/8 in, 6 splines)
Mid-PTO Availability	Optional, 2,500 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1 (limited)	Category I
Hitch Lift Capacity	1,100 lb	2,270 lb
Hitch Lift Capacity (at 24”)	679 lb	1,631 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	CK2620: Manual; CK2620H, CK2620SEH CAB: Hydrostatic
No. of Speeds	2 range	CK2620: 9F/3R; CK2620H, CK2620SEH CAB: Infinite, 3 range
Max Travel Speed (Forward)	7.8 mph	CK2620: 9.79 mph; CK2620H, CK2620SEH CAB: 10.01 mph
Max Travel Speed (Reverse)	Not Published	CK2620: 6.39 mph; CK2620H, CK2620SEH CAB: 7.01 mph
Clutch	Dry single plate	CK2620: Dry dual stage; CK2620H: Dry single stage; CK2620SEH CAB: None (hydrostatic)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet multi-disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	4WD, manual engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	94.2 in	120.9 in
Overall Width	44.5 in	54.5 in
Wheelbase	53.1 in	65.7 in
Ground Clearance	8.3 in	13.4 in
Min. Turn Radius without Brakes	86.6 in	107.5 in
Height to Top of ROPS	86.6 in	92.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.5 in
▶Weight
Tractor Weight (Base)	1,433 lb	CK2620: 2,634 lb; CK2620H: 2,689 lb; CK2620SEH CAB: 3,397 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)
R1 Agricultural - Front	16x7.50-9	7-16
R1 Agricultural - Rear	24x12.00-12	11.2-24
R3 Turf - Front	18x8.5-10	28x8.5-15/6
R3 Turf - Rear	26x12.00-12	41x14-20/4
R4 Industrial - Front	18x8.5-10	27x8.5-15
R4 Industrial - Rear	26x12.00-12	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL100	KL4030; KL4030C
Loader Lift Height	78.5 in	98.4 in (KL4030 and KL4030C loaders)
Loader Lift Capacity (Full Height)	617 lb	KL4030: 1,835 lb; KL4030C: 1,969 lb
Loader Breakout Force	1,253 lbf	KL4030: 3,464 lb; KL4030C: 2,989 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

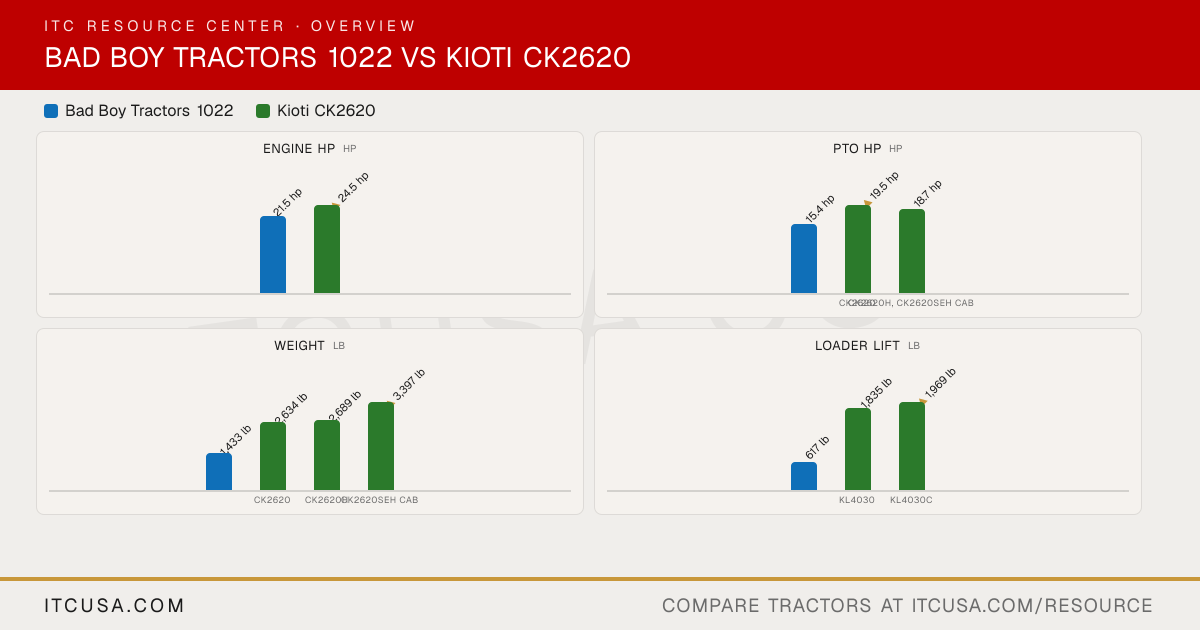

Bad Boy Tractors 1022 vs Kioti CK2620: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the Kioti CK2620?

The Kioti CK2620 leads on engine hp at 24.5 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Kioti CK2620?

The Kioti CK2620 leads on pto hp at 19.5 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the Kioti CK2620?

The Kioti CK2620 leads on weight at 3,397 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kioti CK2620?

The Kioti CK2620 leads on loader lift at 1,969 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Kioti CK2620?

The Kioti CK2620 leads on 3-pt lift (24 in) at 1,631 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
