Bad Boy Tractors 3026 vs Kioti CK2620

Across 9 measurable specs, the Kioti CK2620 leads 8 categories to 1. Machine pages: Bad Boy Tractors 3026 and Kioti CK2620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

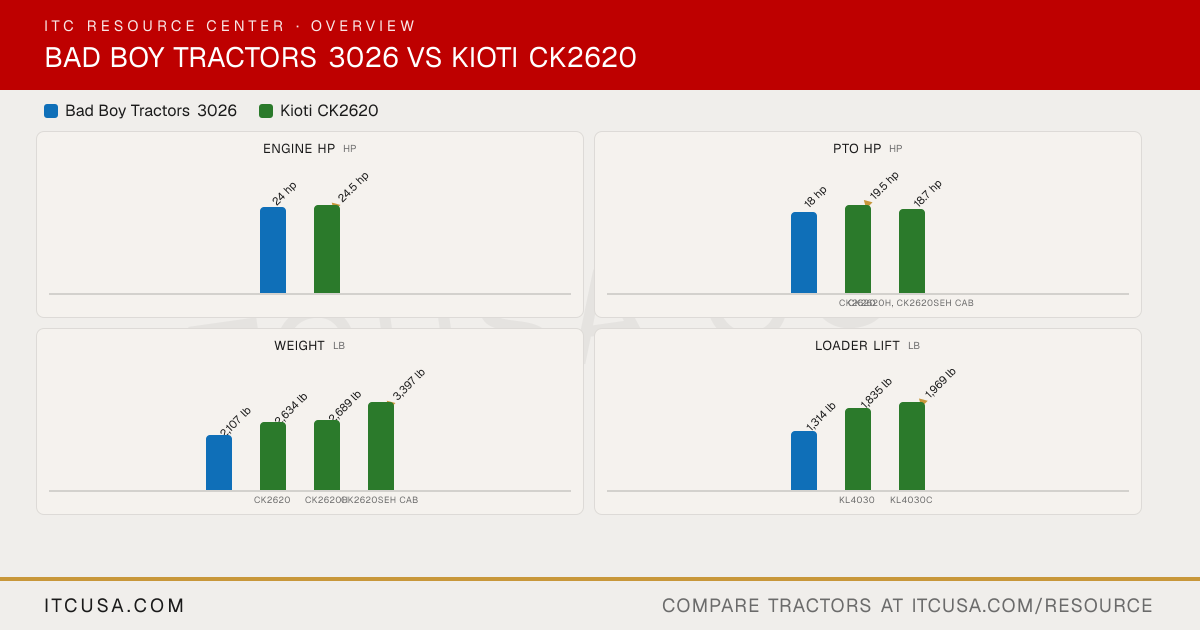

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KiotiCK2620

▶Engine
Engine Manufacturer	TYM	KIOTI
Engine Model	A1100N2	CK2620: 3A165LWM-U; CK2620H, CK2620SEH CAB: 3A165LWH-U
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder, in-line, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	70.7 in³	100.5 in³
Rated Engine Speed	2600 rpm	2400 rpm
Engine Power (Gross)	24 hp	24.5 hp
PTO Power	18 hp	CK2620: 19.5 hp; CK2620H, CK2620SEH CAB: 18.7 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry element
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear
Implement Flow	4.3 gpm	CK2620, CK2620H: 7.14 gpm; CK2620SEH CAB: 6.86 gpm
Steering Flow	3.1 gpm	CK2620, CK2620H: 4.59 gpm; CK2620SEH CAB: 4.46 gpm
Total Hydraulic Flow	7.4 gpm	CK2620, CK2620H: 11.73 gpm; CK2620SEH CAB: 11.33 gpm
Overall Hydraulic Pump Flow	7.7 gpm	CK2620, CK2620H: 11.73 gpm; CK2620SEH CAB: 11.33 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	CK2620, CK2620H: 0; CK2620SEH CAB: 2
No. of Optional Remote Valves	1	CK2620, CK2620H: 2
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	9.0 gal
Coolant Capacity	1.21 gal	0.89 gal
Crankcase Capacity	0.79 gal	1.6 gal
Transmission / Hydraulic System Capacity	2.90 gal	5.8 gal
Front Axle Fluid Capacity	0.79 gal	1.6 gal
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	CK2620, CK2620H: Live; CK2620SEH CAB: Independent
PTO Rear	540 / 960 rpm	540 rpm (1-3/8 in, 6 splines)
Mid-PTO Availability	Optional, 2,500 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	1,433 lb	2,270 lb
Hitch Lift Capacity (at 24”)	974 lb	1,631 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	CK2620: Manual; CK2620H, CK2620SEH CAB: Hydrostatic
No. of Speeds	3 range (L/M/H)	CK2620: 9F/3R; CK2620H, CK2620SEH CAB: Infinite, 3 range
Max Travel Speed (Forward)	14.8 mph	CK2620: 9.79 mph; CK2620H, CK2620SEH CAB: 10.01 mph
Max Travel Speed (Reverse)	14.8 mph	CK2620: 6.39 mph; CK2620H, CK2620SEH CAB: 7.01 mph
Clutch	Dry, single plate	CK2620: Dry dual stage; CK2620H: Dry single stage; CK2620SEH CAB: None (hydrostatic)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	4WD, manual engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	120.9 in
Overall Width	53.9 in	54.5 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	16.4 in	13.4 in
Min. Turn Radius without Brakes	Not Published	107.5 in
Height to Top of ROPS	91.4 in	92.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.5 in
▶Weight
Tractor Weight (Base)	2,107 lb	CK2620: 2,634 lb; CK2620H: 2,689 lb; CK2620SEH CAB: 3,397 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)
R1 Agricultural - Front	7-16 6PR	7-16
R1 Agricultural - Rear	11.2-20	11.2-24
R3 Turf - Front	Not Published	28x8.5-15/6
R3 Turf - Rear	Not Published	41x14-20/4
R4 Industrial - Front	25x8.50-14	27x8.5-15
R4 Industrial - Rear	14-17.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	KL4030; KL4030C
Loader Lift Height	87.5 in	98.4 in (KL4030 and KL4030C loaders)
Loader Lift Capacity (Full Height)	1,314 lb	KL4030: 1,835 lb; KL4030C: 1,969 lb
Loader Breakout Force	1,960 lbf	KL4030: 3,464 lb; KL4030C: 2,989 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

Bad Boy Tractors 3026 vs Kioti CK2620: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Kioti CK2620?

The Kioti CK2620 leads on engine hp at 24.5 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kioti CK2620?

The Kioti CK2620 leads on pto hp at 19.5 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Kioti CK2620?

The Kioti CK2620 leads on weight at 3,397 lb lb, compared to 2,107 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kioti CK2620?

The Kioti CK2620 leads on loader lift at 1,969 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kioti CK2620?

The Kioti CK2620 leads on 3-pt lift (24 in) at 1,631 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
