Bad Boy Tractors 3026 vs Kioti CS2410

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 7 categories to 2. Machine pages: Bad Boy Tractors 3026 and Kioti CS2410.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KiotiCS2410

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1100N2	S773L
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder diesel with pressurized radiator
No. of Cylinders	3	3
Displacement	70.7 in³	69.0 in³
Rated Engine Speed	2600 rpm	3000 rpm
Engine Power (Gross)	24 hp	24.5 hp
PTO Power	18 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled (pressurized radiator)
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Indirect injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear
Implement Flow	4.3 gpm	Not Published
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	6.5 gpm
Overall Hydraulic Pump Flow	7.7 gpm	6.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	6.7 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Standard (2,200 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	700 lb
Lift Control Type	Position control	Position
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	3 range (L/M/H)	Infinite, 2 range
Max Travel Speed (Forward)	14.8 mph	10.31 mph
Max Travel Speed (Reverse)	14.8 mph	6.96 mph
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	4WD (standard, single-lever engagement)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	98.1 in
Overall Width	53.9 in	46.5 in
Wheelbase	65.7 in	55.1 in
Ground Clearance	16.4 in	6.4 in
Min. Turn Radius without Brakes	Not Published	8.3 ft (with brake applied)
Height to Top of ROPS	91.4 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1,485 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	7-16 6PR	18x8.5-10
R1 Agricultural - Rear	11.2-20	26x12.00-12
R3 Turf - Front	Not Published	18x8.5-10
R3 Turf - Rear	Not Published	26x12.00-12
R4 Industrial - Front	25x8.50-14	18x8.5-10
R4 Industrial - Rear	14-17.5	26x12.00-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Quick attach (QA) bucket, 48 in
Loader Model	BBL300	SL2410
Loader Lift Height	87.5 in	SL2410: 71.3 in
Loader Lift Capacity (Full Height)	1,314 lb	SL2410: 675.3 lb
Loader Breakout Force	1,960 lbf	SL2410: 1,332 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

Bad Boy Tractors 3026 vs Kioti CS2410: Quick Answers

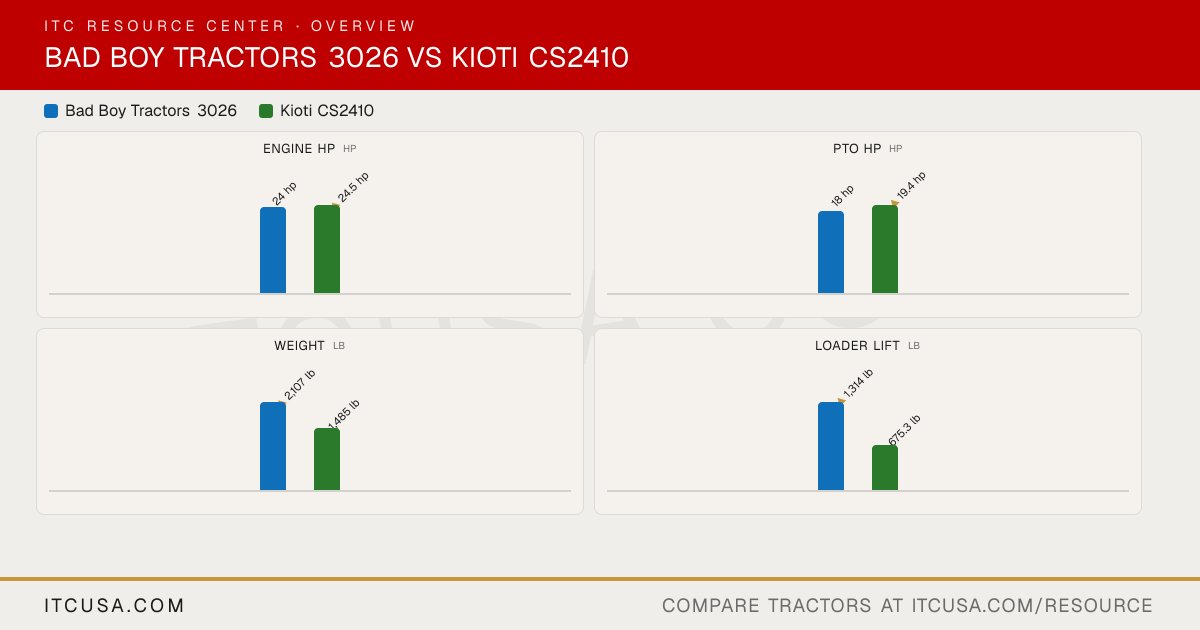

Which has more horsepower, the Bad Boy Tractors 3026 or the Kioti CS2410?

The Kioti CS2410 leads on engine hp at 24.5 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kioti CS2410?

The Kioti CS2410 leads on pto hp at 19.4 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Kioti CS2410?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,485 lb lb for the Kioti CS2410.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kioti CS2410?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 675.3 lb lb for the Kioti CS2410.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kioti CS2410?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 700 lb lb for the Kioti CS2410.
