Bad Boy Tractors 3026 vs Kubota L2550

Across 9 measurable specs, the Kubota L2550 leads 5 categories to 4. Machine pages: Bad Boy Tractors 3026 and Kubota L2550.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KubotaL2550

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1100N2	F (2WD), DT (4WD): D1402-DI-A; GST (4WD): D1402-DI-AE
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	Direct injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	70.7 in³	85.1 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	29.5 hp
PTO Power	18 hp	23.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water-cooled, pressurized radiator
Air Cleaner	Dry element	Paper element
Fuel System	Indirect injection (swirl chamber)	Direct injection
Alternator	50 A, 12 V	35 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	6.7 gpm
Steering Flow	3.1 gpm	2.8 gpm
Total Hydraulic Flow	7.4 gpm	Not Published
Overall Hydraulic Pump Flow	7.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.7 gal
Coolant Capacity	1.21 gal	4.9 qt
Crankcase Capacity	0.79 gal	6.0 qt
Transmission / Hydraulic System Capacity	2.90 gal	F (2WD), DT (4WD): 7.5 gal; GST (4WD): 7.1 gal
Front Axle Fluid Capacity	0.79 gal	6.8 qt (4WD)
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Continuous running (live PTO with dual clutch if equipped)
PTO Rear	540 / 960 rpm	540/1000 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional mid-PTO, 1080/2000 rpm (USA No. 5, Kubota 10-tooth)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	2425 lb
Hitch Lift Capacity (at 24”)	974 lb	1810 lb
Lift Control Type	Position control	Position control (draft control optional)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	F (2WD), DT (4WD): Mechanical shuttle, 8F/8R; GST (4WD): Glide Shift Transmission, 8F/8R
No. of Speeds	3 range (L/M/H)	8F/8R
Max Travel Speed (Forward)	14.8 mph	F (2WD), DT (4WD): 13.5 mph; GST (4WD): 13.3 mph
Max Travel Speed (Reverse)	14.8 mph	F (2WD), DT (4WD): 12.2 mph; GST (4WD): 11.9 mph
Clutch	Dry, single plate	F (2WD), DT (4WD): Dry single plate or two plate (live PTO if equipped); GST (4WD): Dry single plate
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (bevel gear differential)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Two-post ROPS
Steering	Hydrostatic power steering	F (2WD), DT (4WD): Recirculating ball manual steering or integral power steering (if equipped); GST (4WD): Integral type power steering
Brakes	Wet disc	Wet disc type
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	109.1 in (w/o 3P) (without 3-point hitch)
Overall Width	53.9 in	51.4 in
Wheelbase	65.7 in	64.6 in
Ground Clearance	16.4 in	F (2WD): 14.6 in; DT (4WD), GST (4WD): 13.6 in
Min. Turn Radius without Brakes	Not Published	7.5 ft
Height to Top of ROPS	91.4 in	79.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	F (2WD): 2250 lb; DT (4WD): 2470 lb; GST (4WD): 2557 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	Ag: 5.00-15 (2WD) or 7-16 (4WD) front, 11.2-24 rear
R1 Agricultural - Front	7-16 6PR	F (2WD): 5.00-15; DT (4WD), GST (4WD): 7-16
R1 Agricultural - Rear	11.2-20	11.2-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	14-17.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	BF400G; LA450A
Loader Lift Height	87.5 in	BF400G: 93.7 in; LA450A: 95 in
Loader Lift Capacity (Full Height)	1,314 lb	BF400G: 882 lb; LA450A: 992 lb
Loader Breakout Force	1,960 lbf	BF400G: 1654 lbf; LA450A: 1863 lbf
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

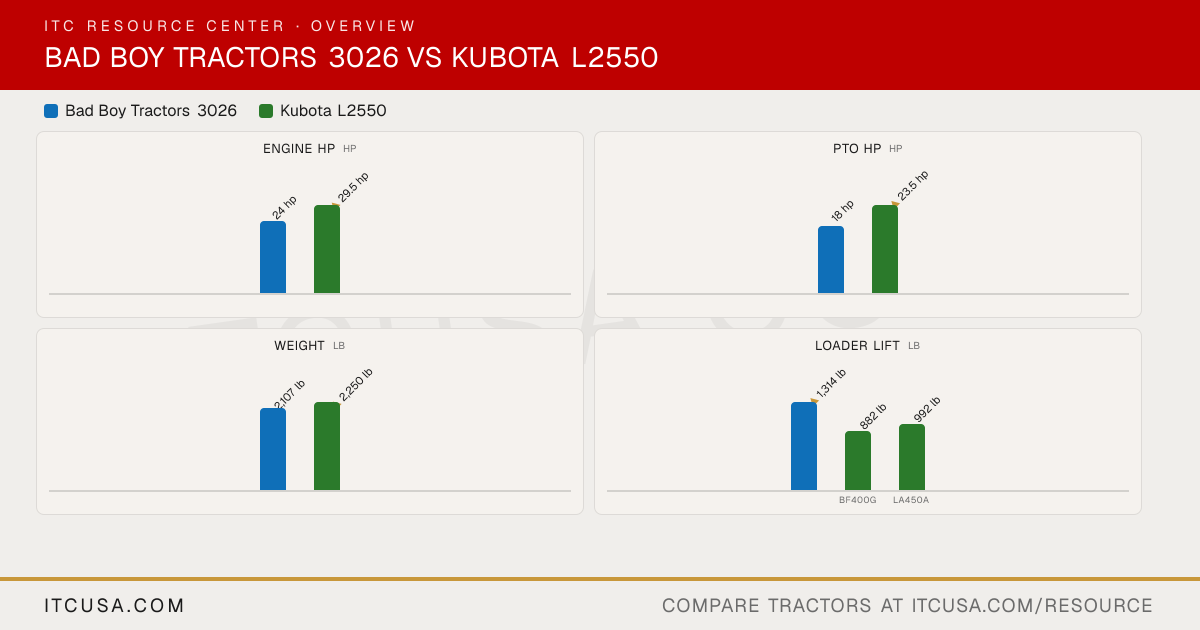

Bad Boy Tractors 3026 vs Kubota L2550: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Kubota L2550?

The Kubota L2550 leads on engine hp at 29.5 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kubota L2550?

The Kubota L2550 leads on pto hp at 23.5 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Kubota L2550?

The Kubota L2550 leads on weight at 2,250 lb lb, compared to 2,107 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kubota L2550?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 992 lb lb for the Kubota L2550.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kubota L2550?

The Kubota L2550 leads on 3-pt lift (24 in) at 1,810 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
