Bad Boy Tractors 3026 vs Yanmar SA221

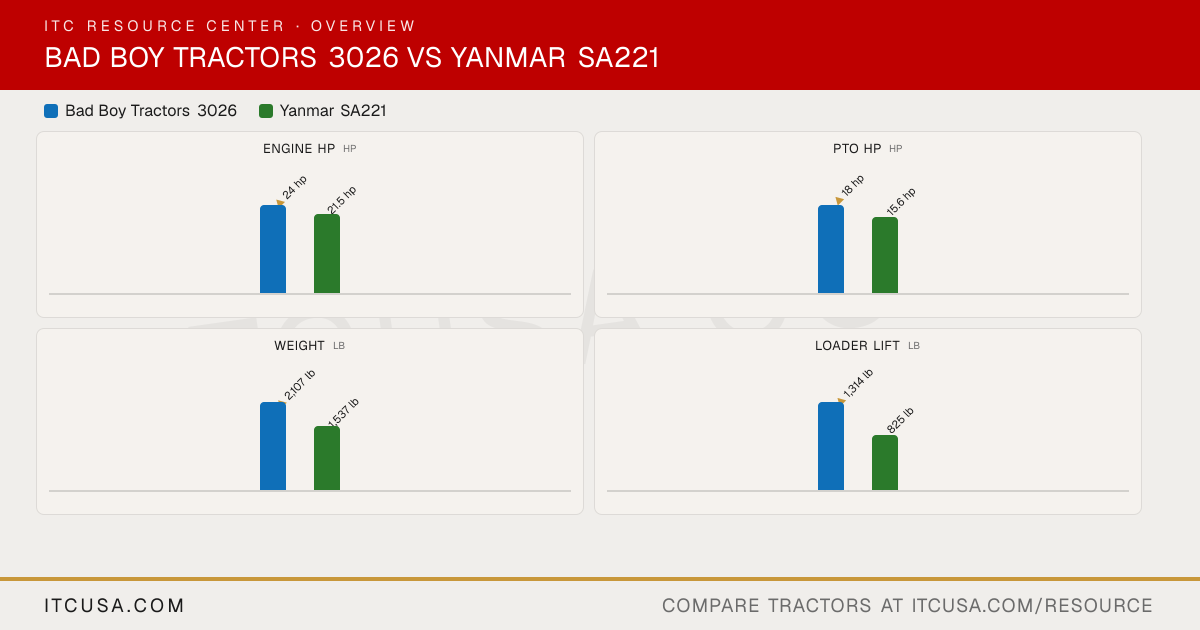

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 8 categories to 1. Machine pages: Bad Boy Tractors 3026 and Yanmar SA221.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	YanmarSA221

▶Engine
Engine Manufacturer	TYM	YANMAR
Engine Model	A1100N2	3TNM74F
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	4-cycle inline, water-cooled diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	70.7 in³	60.6 in³
Rated Engine Speed	2600 rpm	3200 rpm
Engine Power (Gross)	24 hp	21.5 hp
PTO Power	18 hp	15.6 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Dual hydraulic pump
Implement Flow	4.3 gpm	4.3 gpm
Steering Flow	3.1 gpm	3.7 gpm
Total Hydraulic Flow	7.4 gpm	8.0 gpm (4.3 + 3.7, computed)
Overall Hydraulic Pump Flow	7.7 gpm	8.0 gpm (4.3 + 3.7, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	6.1 gal
Coolant Capacity	1.21 gal	3.0 qt
Crankcase Capacity	0.79 gal	3.1 qt
Transmission / Hydraulic System Capacity	2.90 gal	4.1 gal
Front Axle Fluid Capacity	0.79 gal	3.17 qt
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent, hydraulic clutch
PTO Rear	540 / 960 rpm	554 rpm @ 3,200 engine rpm; 1.4 in OD, 6 splines
Mid-PTO Availability	Optional, 2,500 rpm	Independent mid-PTO, 2,057 rpm @ 3,200 engine rpm, SAE 16/32, 15 splines
Category, 3-Point Hitch	Category I	Limited Category I
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	660 lb
Lift Control Type	Position control	Select control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission
No. of Speeds	3 range (L/M/H)	Infinite forward and reverse (hydrostatic); 1 range
Max Travel Speed (Forward)	14.8 mph	8.6 mph (with R4 tires)
Max Travel Speed (Reverse)	14.8 mph	6.3 mph (with R4 tires)
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Full-frame chassis
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Fore-and-aft adjustable operator seat
Front Axle Type	Selectable 4WD	Cast iron, selectable 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	102.1 in
Overall Width	53.9 in	47.3 in (with R4 tires)
Wheelbase	65.7 in	57.9 in
Ground Clearance	16.4 in	6.4 in (with R4 tires)
Min. Turn Radius without Brakes	Not Published	7.87 ft
Height to Top of ROPS	91.4 in	82.3 in (with R4 tires)
Height to Top of ROPS (folded)	Not Published	66.3 in (folded ROPS, top of steering wheel, R4 tires)
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1,537 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R3 Turf; R4 Industrial
R1 Agricultural - Front	7-16 6PR	Not Published
R1 Agricultural - Rear	11.2-20	Not Published
R3 Turf - Front	Not Published	18x8.50-10 4PR
R3 Turf - Rear	Not Published	26x12.0-12 4PR
R4 Industrial - Front	25x8.50-14	18x8.50-10 6PR
R4 Industrial - Rear	14-17.5	26x12.0-12 4PR
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	YL110: YANMAR quick attachment system
Loader Model	BBL300	YL110
Loader Lift Height	87.5 in	YL110: 71 in to pivot pin (51 in under level bucket)
Loader Lift Capacity (Full Height)	1,314 lb	YL110: 825 lb at pivot pin
Loader Breakout Force	1,960 lbf	YL110: 1,342 lb at pivot pin
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Tractor (private individual usage): 24 months or 2,000 hours; Powertrain (engine and transmission core components): 10 years or 3,000 hours; Attachments: 1-year limited warranty
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 3026 vs Yanmar SA221: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Yanmar SA221?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 21.5 hp hp for the Yanmar SA221.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Yanmar SA221?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 15.6 hp hp for the Yanmar SA221.

Which is heavier, the Bad Boy Tractors 3026 or the Yanmar SA221?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,537 lb lb for the Yanmar SA221.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Yanmar SA221?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 825 lb lb for the Yanmar SA221.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Yanmar SA221?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 660 lb lb for the Yanmar SA221.
