Bad Boy Tractors 3026 vs Yanmar SA424

Across 0 measurable specs, this matchup is a dead heat: 0 categories to the Bad Boy Tractors 3026, 0 to the Yanmar SA424. Machine pages: Bad Boy Tractors 3026 and Yanmar SA424.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

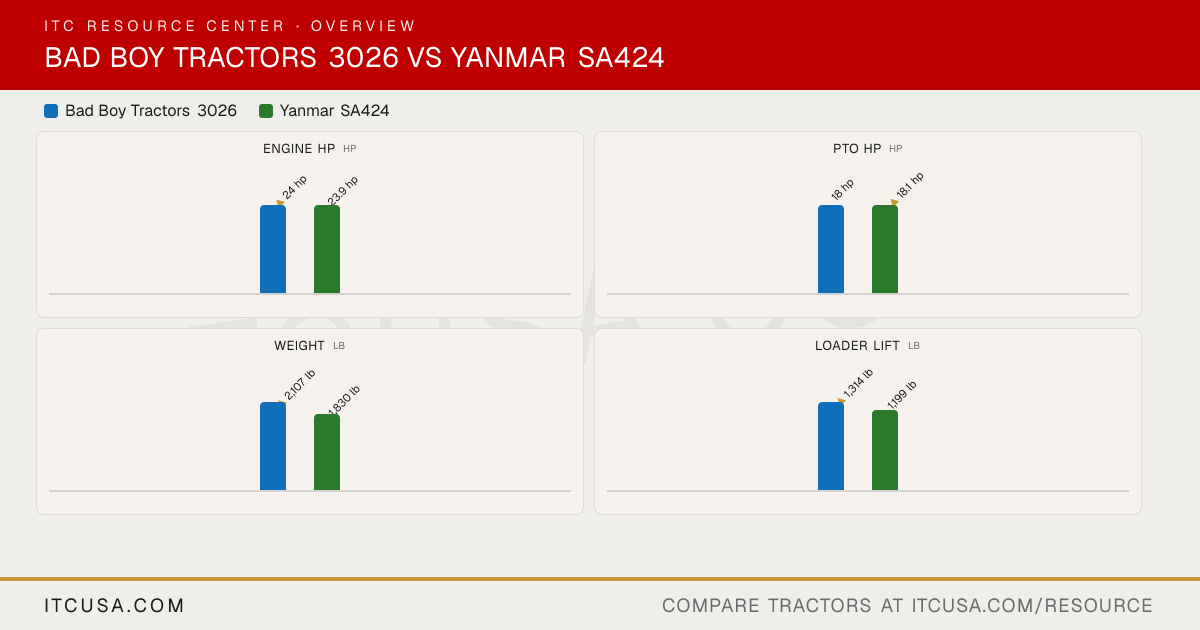

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	YanmarSA424

▶Engine
Engine Manufacturer	TYM	n/a
Engine Model	A1100N2	n/a
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	n/a
No. of Cylinders	3	n/a
Displacement	70.7 in³	n/a
Rated Engine Speed	2600 rpm	n/a
Engine Power (Gross)	24 hp	n/a
PTO Power	18 hp	n/a
Engine Emissions Constraints	Tier 4	n/a
Cooling System Type	Water-cooled	n/a
Air Cleaner	Dry element	n/a
Fuel System	Indirect injection (swirl chamber)	n/a
Alternator	50 A, 12 V	n/a
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	n/a
Implement Flow	4.3 gpm	n/a
Steering Flow	3.1 gpm	n/a
Total Hydraulic Flow	7.4 gpm	n/a
Overall Hydraulic Pump Flow	7.7 gpm	n/a
Hydraulic System Type	Open center	n/a
Rear Remote Hydraulic Flow	Not Published	n/a
No. of Standard Remote Valves	0	n/a
No. of Optional Remote Valves	1	n/a
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	n/a
Coolant Capacity	1.21 gal	n/a
Crankcase Capacity	0.79 gal	n/a
Transmission / Hydraulic System Capacity	2.90 gal	n/a
Front Axle Fluid Capacity	0.79 gal	n/a
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	n/a
PTO Rear	540 / 960 rpm	n/a
Mid-PTO Availability	Optional, 2,500 rpm	n/a
Category, 3-Point Hitch	Category 1	n/a
Hitch Lift Capacity	1,433 lb	n/a
Hitch Lift Capacity (at 24”)	974 lb	n/a
Lift Control Type	Position control	n/a
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	n/a
No. of Speeds	3 range (L/M/H)	n/a
Max Travel Speed (Forward)	14.8 mph	n/a
Max Travel Speed (Reverse)	14.8 mph	n/a
Clutch	Dry, single plate	n/a
Differential Lock & Limited Slip Options	Mechanical rear differential lock	n/a
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	n/a
Steering	Hydrostatic power steering	n/a
Brakes	Wet disc	n/a
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	n/a
Front Axle Type	Selectable 4WD	n/a
Front Axle Rating	Not Published	n/a
Drawbar Capacity	Not Published	n/a
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	n/a
Overall Width	53.9 in	n/a
Wheelbase	65.7 in	n/a
Ground Clearance	16.4 in	n/a
Min. Turn Radius without Brakes	Not Published	n/a
Height to Top of ROPS	91.4 in	n/a
Height to Top of ROPS (folded)	Not Published	n/a
Height to Top of Cab Model	Not Published	n/a
▶Weight
Tractor Weight (Base)	2,107 lb	n/a
Weight with ROPS and Loader	Not Published	n/a
Weight with Cab and Loader	Not Published	n/a
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	n/a
R1 Agricultural - Front	7-16 6PR	n/a
R1 Agricultural - Rear	11.2-20	n/a
R3 Turf - Front	Not Published	n/a
R3 Turf - Rear	Not Published	n/a
R4 Industrial - Front	25x8.50-14	n/a
R4 Industrial - Rear	14-17.5	n/a
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	n/a
Loader Model	BBL300	n/a
Loader Lift Height	87.5 in	n/a
Loader Lift Capacity (Full Height)	1,314 lb	n/a
Loader Breakout Force	1,960 lbf	n/a
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	n/a
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet
