Bad Boy Tractors 4025 vs Case IH Farmall 25A Mechanical

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 6 categories to 2. Machine pages: Bad Boy Tractors 4025 and Case IH Farmall 25A Mechanical.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

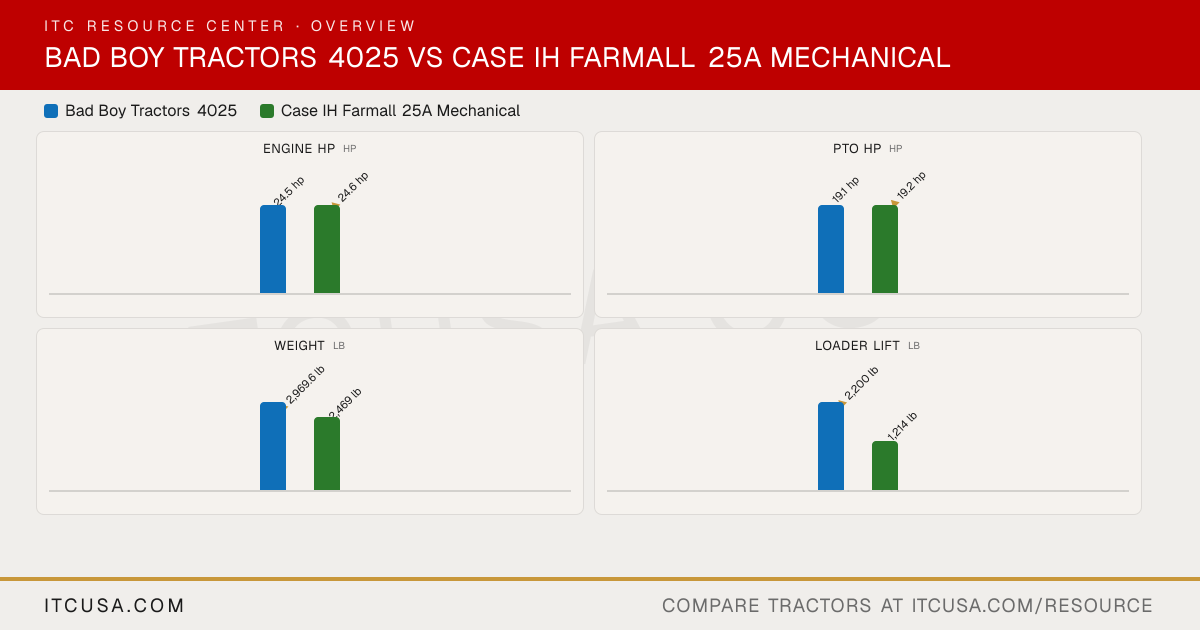

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	Case IHFarmall 25A Mechanical

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1700N6-BUTR_3	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	104.7 in³	80.4 in³
Rated Engine Speed	2100 rpm	2500 rpm
Engine Power (Gross)	24.5 hp	24.6 hp
PTO Power	19.1 hp	19.2 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Implement Flow	7.5 gpm	7.9 gpm
Steering Flow	4 gpm	Not Published
Total Hydraulic Flow	11.5 gpm	Not Published
Overall Hydraulic Pump Flow	11.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	2	1
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.4 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)
No. of Speeds	3 range (A/B/C)	12 forward, 12 reverse
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Dry clutch
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Power steering
Brakes	Wet multi-disc	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	117.2 in
Overall Width	56.7 in	Not Published
Wheelbase	65.7 in	65.9 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	88.2 in
Height to Top of ROPS (folded)	Not Published	68.2 in
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	Not Published
R1 Agricultural - Front	8.0-16	Not Published
R1 Agricultural - Rear	12.4-24	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	15-19.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	L330
Loader Lift Height	104 in	94.3 in
Loader Lift Capacity (Full Height)	2,200 lb	1214 lb
Loader Breakout Force	3,660 lbf	1926 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 4025 vs Case IH Farmall 25A Mechanical: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Case IH Farmall 25A Mechanical?

The Case IH Farmall 25A Mechanical leads on engine hp at 24.6 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Case IH Farmall 25A Mechanical?

The Case IH Farmall 25A Mechanical leads on pto hp at 19.2 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the Case IH Farmall 25A Mechanical?

The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 2,469 lb lb for the Case IH Farmall 25A Mechanical.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Case IH Farmall 25A Mechanical?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,214 lb lb for the Case IH Farmall 25A Mechanical.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Case IH Farmall 25A Mechanical?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the Case IH Farmall 25A Mechanical.
