Bad Boy Tractors 4025 vs Mahindra 1126 HST Cab

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 6 categories to 2. Machine pages: Bad Boy Tractors 4025 and Mahindra 1126 HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

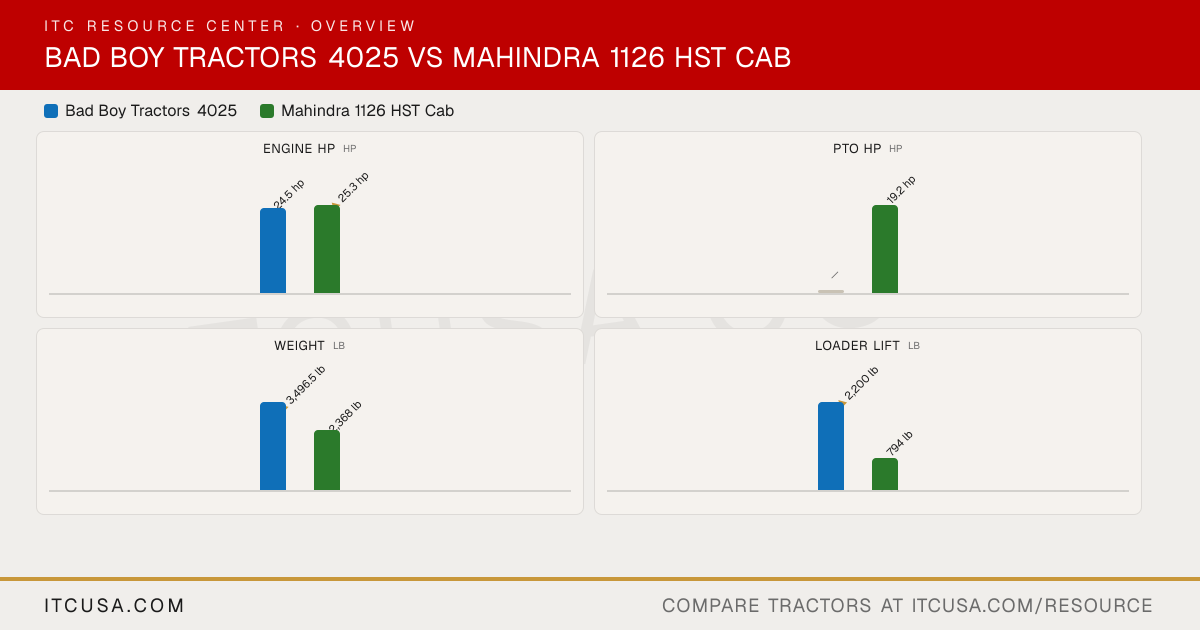

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	Mahindra1126 HST Cab

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1700N6-BUTR_3	MVL3E3
Engine Type	Vertical, 4-stroke, water-cooled diesel	Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel
No. of Cylinders	3	3
Displacement	104.5 in³	67.2 in³
Rated Engine Speed	2100 rpm	3000 rpm
Engine Power (Gross)	25 hp	25.3 hp
PTO Power	19.1 hp	19.2 hp
Engine Emissions Constraints	Not Published	No DPF
Cooling System Type	Water-cooled	Water-Cooled
Air Cleaner	Dry	Not Published
Fuel System	Not Published	Indirect Injection
Alternator	50 A, 12 V	55 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Implement Flow	7.5 gpm	7.6 gpm
Steering Flow	4 gpm	3.8 gpm
Total Hydraulic Flow	11.5 gpm	11.2 gpm
Overall Hydraulic Pump Flow	11.5 gpm	11.2 gpm
Hydraulic System Type	Open center	Open Center, full-live hydraulic with position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Single or dual
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	6.6 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent Wet Clutch
PTO Rear	540 rpm	540 rpm @ 2837 rpm
Mid-PTO Availability	Not Published	Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch	Category I	CAT I with check chains
Hitch Lift Capacity	3,307 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	771 lb
Lift Control Type	Position control	Position Control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	HST - 2 Range
No. of Speeds	3 range (A/B/C)	Infinite
Max Travel Speed (Forward)	Not Published	7.3 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic Power Steering
Brakes	Wet multi-disc	Single Pedal
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	56.7 in	46.3 in
Wheelbase	65.7 in	55.1 in
Ground Clearance	13.1 in	6.7 in
Min. Turn Radius without Brakes	Not Published	7.2 ft (with brake applied)
Height to Top of ROPS	104.06 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	80.5 in
Overall Length	134.88 in	100.4 in
▶Weight
Tractor Weight (Base)	2,970 lb	1,962 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	2,368 lb (1,962 + 406, computed; L11 loader shipping weight)
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	Industrial, Turf
R1 Agricultural - Front	8.0-16	Not Published
R1 Agricultural - Rear	12.4-24	Not Published
R3 Turf - Front	Not Published	18x8.5-10
R3 Turf - Rear	Not Published	26x12-12
R4 Industrial - Front	25x8.50-14	18x8.5-10
R4 Industrial - Rear	15-19.5	26x12-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	L11: Front loader skid-steer couplers for superfast hookups
Loader Model	BBL400	L11
Loader Lift Height	104 in	L11: 68 in
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	L11: 794 lb; Measured at: pivot pin, full height
Loader Breakout Force	3,660 lbf	L11: 1,433 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	7-Year Limited Powertrain Warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 4025 vs Mahindra 1126 HST Cab: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Mahindra 1126 HST Cab?

The Mahindra 1126 HST Cab leads on engine hp at 25.3 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Mahindra 1126 HST Cab?

The Mahindra 1126 HST Cab leads on pto hp at 19.2 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the Mahindra 1126 HST Cab?

The Bad Boy Tractors 4025 leads on weight at 2,970 lb lb, compared to 1,962 lb lb for the Mahindra 1126 HST Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Mahindra 1126 HST Cab?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 794 lb lb for the Mahindra 1126 HST Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Mahindra 1126 HST Cab?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 771 lb lb for the Mahindra 1126 HST Cab.
