Across 2 measurable specs, the TYM 3520 leads 2 categories to 0. Machine pages: Bad Boy Tractors 4025 and TYM 3520.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 4025 | TYM 3520 |
|---|
| Engine HP (hp) | 25 hp | ▲ 35 hp |
| PTO HP (hp) | 19.1 hp | n/a |
| Weight (lb) | 2,970 lb | ▲ 3,624 lb |
| Loader Lift (lb) | 2,200 lb | n/a |
| 3-Pt Lift (24 in) (lb) | 2,425 lb | n/a |
| Lift Height (in) | 104 in | n/a |
| Breakout Force (lbf) | 3,660 lbf | n/a |
| Hydraulic Flow (gpm) | 11.5 gpm | n/a |

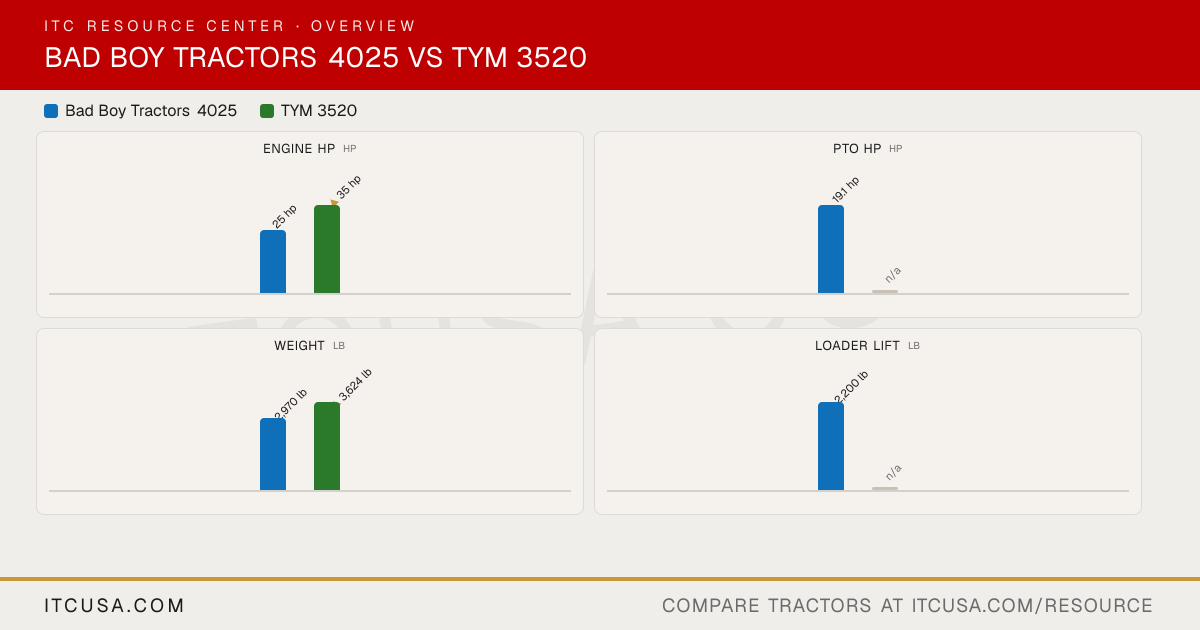

The headline numbers at a glance.
Bad Boy Tractors 4025TYM 3520
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors4025 | TYM3520 |
|---|
|
|---|
| Engine Manufacturer | TYM | Kukje |
|---|
| Engine Model | A1700N6-BUTR_3 | 3T90L-ATC |
|---|
| Engine Type | Vertical, 4-stroke, water-cooled diesel | Diesel, liquid-cooled |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 104.7 in³ | 109.5 in³ |
|---|
| Rated Engine Speed | 2100 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 25 hp | 35 hp |
|---|
| PTO Power | 19.1 hp | Not Published |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Water-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry | Dry element |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | 50 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev) | Not Published |
|---|
| Implement Flow | 7.5 gpm | Not Published |
|---|
| Steering Flow | 4 gpm | Not Published |
|---|
| Total Hydraulic Flow | 11.5 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 11.5 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | 2 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 7.13 gal | 10.6 gal |
|---|
| Coolant Capacity | 1.32 gal | Not Published |
|---|
| Crankcase Capacity | 1.14 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Manual: 8.98 gal; HST: 9.77 gal | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Transmission-driven |
|---|
| PTO Rear | 533 rpm | 540 / 1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 3,307 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2,425 lb | Not Published |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | Hydrostatic (HST) | Synchronized shuttle |
|---|
| No. of Speeds | 3 range (A/B/C) | 12F/12R |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | None (HST) | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock | Not Published |
|---|
|
|---|
| Frame Type | Heavy-duty steel frame with cast iron axles | Not Published |
|---|
| Steering | Fully hydraulic power steering | Power steering |
|---|
| Brakes | Wet multi-disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Selectable 4WD | 4WD (MFWD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 134.88 in | 129.7 in |
|---|
| Overall Width | 56.7 in | 60 in |
|---|
| Wheelbase | 65.7 in | 68.8 in |
|---|
| Ground Clearance | 15 in | 12.2 in |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 96.85 in | 86.4 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 2,970 lb | 3,624 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R4 Industrial (25x8.50-14 / 15-19.5) | Agricultural: 8-18 front / 12.4-28 rear |
|---|
| R1 Agricultural - Front | 8.0-16 | 8-18 |
|---|
| R1 Agricultural - Rear | 12.4-24 | 12.4-28 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | 25x8.50-14 | Not Published |
|---|
| R4 Industrial - Rear | 15-19.5 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Quick attach front loader | Not Published |
|---|
| Loader Model | BBL400 | Not Published |
|---|
| Loader Lift Height | 104 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 2,200 lb | Not Published |
|---|
| Loader Breakout Force | 3,660 lbf | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours | Not Published |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Bad Boy Tractors 4025 vs TYM 3520: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 4025 or the TYM 3520?
- The TYM 3520 leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.
- Which is heavier, the Bad Boy Tractors 4025 or the TYM 3520?
- The TYM 3520 leads on weight at 3,624 lb lb, compared to 2,970 lb lb for the Bad Boy Tractors 4025.
