Bad Boy Tractors 4035 Cab vs TYM 3015

Across 9 measurable specs, the TYM 3015 leads 4 categories to 3 (2 tied). Machine pages: Bad Boy Tractors 4035 Cab and TYM 3015.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

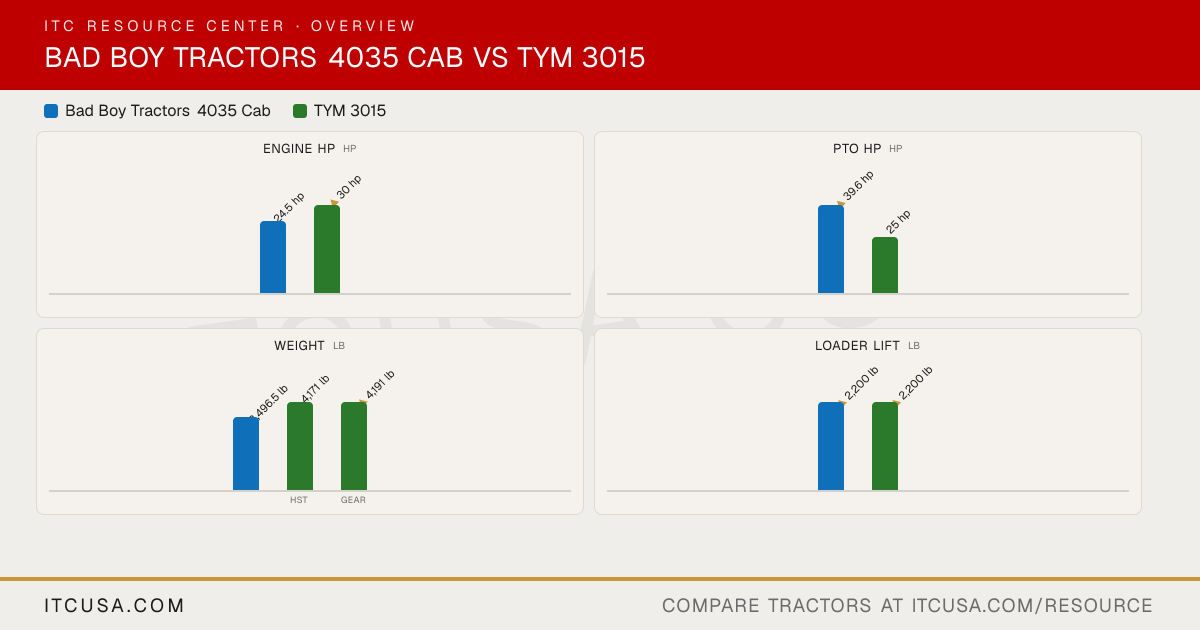

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	TYM3015

▶Engine
PTO Power	39.6 hp	25 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Not Published	Dry Element
Engine Type	Vertical, water cooled 4-cycle, diesel engine	3-cylinder, naturally aspirated diesel
Fuel System	Diesel fuel	IDI
Displacement	104.6 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2600 rpm
Cooling System Type	Pressurized Radiator	Not Published
Engine Manufacturer	Not specified in source	TYM T1700N3
Engine Power (Gross)	24.5 hp	30 hp
Engine Emissions Constraints	Not Published	Tier 4
▶Weight
Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Applicable	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	3,551 lb (tractor only)	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Not Published	Single Gear Pump
Steering Flow	4.4 gpm	8 gpm
Implement Flow	8.2 gpm	4.3 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	12.3 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	12.3 gpm
No. of Optional Remote Valves	Optional (Up to 2)	Up to 4
No. of Standard Remote Valves	Not Published	0
▶PTO & Hitch
PTO Rear	540 rpm	560 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306.9 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	43X16.00-20	43x16.00-20
R4 Industrial - Front	28X8.50-15	28x8.50-15
R1 Agricultural - Rear	11.2-24 8PR	12.4-24
R1 Agricultural - Front	7-16 6PR	8.0-16
▶Fluid Capacity
Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	5.3 qt
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	4.5 qt
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	7.1 gal
Front Axle Fluid Capacity	Not Published	1.7 qt
Transmission / Hydraulic System Capacity	HST: 9.77 gal	HST: 9.8 gal; Gear: 8.9 gal
▶Loader & Attachments
Loader Lift Height	104 in	104.9 in
Loader Breakout Force	3,660 lb	3,422 lb
Quick Attach Loader System	SSQA	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	2,200 lb
▶Transmission & Drivetrain
Clutch	None (HST)	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	3 Range	HST: 3-Range; Gear: F12 x R12
Transmission Type	HST (Hydrostatic Transmission) with range shift	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	18.21 mph (range C)	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock
▶Chassis, Steering & Controls
Brakes	Wet multi-disc	Wet, Multi-disc
Steering	Fully hydraulic power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat
▶Dimensions & Maneuverability
Wheelbase	65.79 in	65.7 in
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	56.3 in
Overall Length	134.88 in	—
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	14.4 in
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	97.3 in
Height to Top of Cab Model	86 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	104.7 in
Overall Length with 3-Point Hitch	134.88 in	120.9 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Bad Boy Tractors 4035 Cab vs TYM 3015: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the TYM 3015?

The TYM 3015 leads on engine hp at 30 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the TYM 3015?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 25 hp hp for the TYM 3015.

Which is heavier, the Bad Boy Tractors 4035 Cab or the TYM 3015?

The TYM 3015 leads on weight at 4,191 lb lb, compared to 3,496.5 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the TYM 3015?

They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the TYM 3015?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
