Which has more horsepower, the Bad Boy Tractors 4035 Cab or the TYM T254?

The Bad Boy Tractors 4035 Cab leads on engine hp at 24.5 hp hp, compared to 23.9 hp hp for the TYM T254.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the TYM T254?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 18.8 hp hp for the TYM T254.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the TYM T254?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 948 lb lb for the TYM T254.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the TYM T254?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,101 lb lb for the TYM T254.

Bad Boy Tractors 4035 Cab vs TYM T254

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 8 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and TYM T254.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035 Cab	TYM T254
Engine HP (hp)	▲ 24.5 hp	23.9 hp
PTO HP (hp)	▲ 39.6 hp	18.8 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	948 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,101 lb
Lift Height (in)	▲ 104 in	75 in
Breakout Force (lbf)	▲ 3,660 lbf	1,680 lbf
Hydraulic Flow (gpm)	▲ 12.6 gpm	6.9 gpm
Travel Speed (mph)	▲ 18.2 mph	11 mph

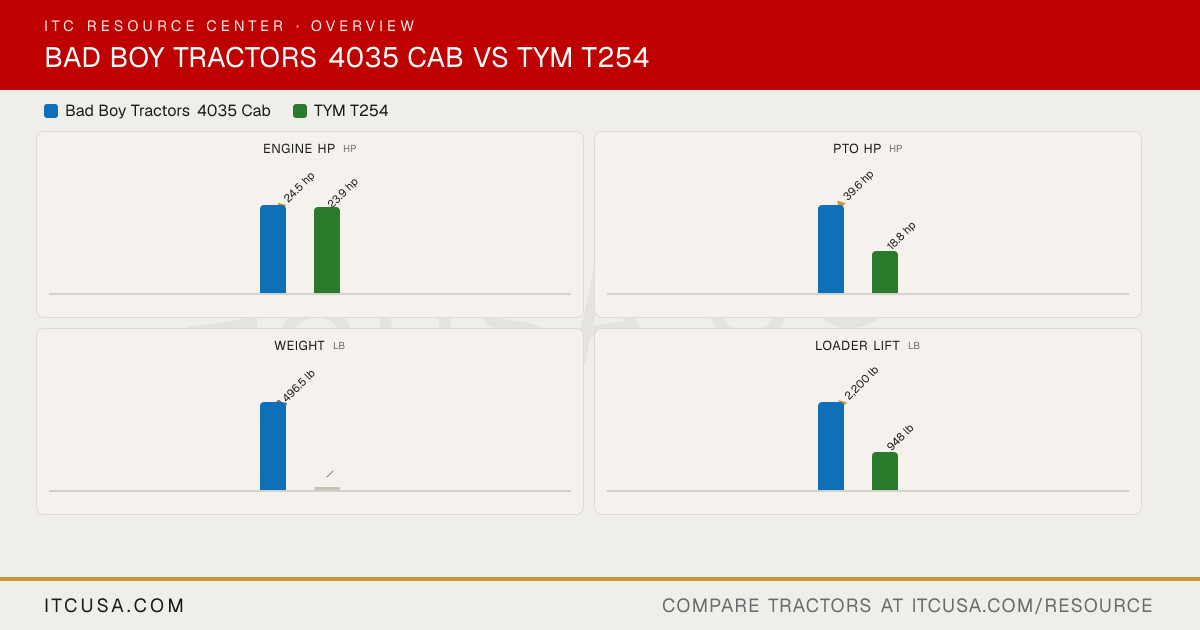

The headline numbers at a glance.

Bad Boy Tractors 4035 CabTYM T254

Engine HPhp

▲24.5 hp

23.9 hp

PTO HPhp

▲39.6 hp

18.8 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

948 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,101 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	TYMT254


PTO Power	39.6 hp	18.8 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Single dry
Engine Type	Vertical, water cooled 4-cycle, diesel engine	3-cylinder, naturally aspirated diesel
Fuel System	Diesel fuel	IDI
Displacement	104.6 in³	77.3 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	3000 rpm
Cooling System Type	Pressurized Radiator	Water-cooled
Engine Manufacturer	Not specified in source	Yanmar
Engine Power (Gross)	24.5 hp	23.9 hp
Engine Emissions Constraints	Not Published	Tier 4

Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	3,551 lb (tractor only)	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Single gear pump
Steering Flow	4.4 gpm	2.8 gpm
Implement Flow	8.2 gpm	4.2 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	6.9 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	6.9 gpm
No. of Optional Remote Valves	Optional (Up to 2)	1
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306.9 lb	1,214 lb
Mid-PTO Availability	Not Published	Available
Category, 3-Point Hitch	Cat 1	Category I (Narrow)
Hitch Lift Capacity (at 24”)	2,425 lb	1,101 lb

R3 Turf - Rear	Not Published	29x12.50-15
R3 Turf - Front	Not Published	20x8.00-10
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
R4 Industrial - Rear	43X16.00-20	27x12.5-15; 12-16.5
R4 Industrial - Front	28X8.50-15	20x8.00-10; 23x8.50-12
R1 Agricultural - Rear	11.2-24 8PR	9.5-16
R1 Agricultural - Front	7-16 6PR	6.0-12

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	3.8 qt
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	2.9 qt
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	5.8 gal
Front Axle Fluid Capacity	Not Published	3.7 qt
Transmission / Hydraulic System Capacity	HST: 9.77 gal	3.7 gal

Loader Lift Height	104 in	75 in
Loader Breakout Force	3,660 lb	1,680 lb
Quick Attach Loader System	SSQA	TX25P: Quick attach mechanism
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	948 lb

Clutch	None (HST)	Not applicable
No. of Speeds	3 Range	Infinite 2-Range
Transmission Type	HST (Hydrostatic Transmission) with range shift	HST
Max Travel Speed (Forward)	18.21 mph (range C)	11.0 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Wet multi-disc	Wet disc
Steering	Fully hydraulic power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Ergonomic seating

Wheelbase	65.79 in	57.5 in
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	45.8 in
Overall Length	134.88 in	—
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	9.4 in
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	91.3 in
Height to Top of Cab Model	86 in	Not Published
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	100 in
Overall Length with 3-Point Hitch	134.88 in	100.5 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection RK24/T254 /BRANSON 2505/EMAX 25 Skid Plate $89.99
