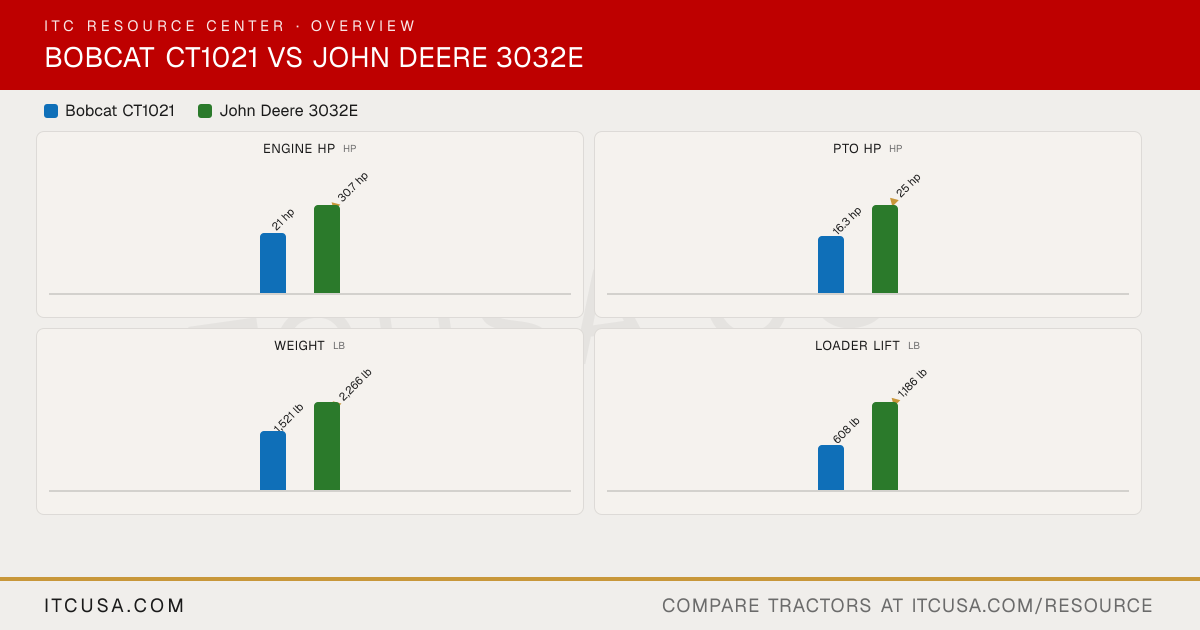

Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT1021
John Deere3032E
Engine Manufacturer
Daedong
Yanmar
Engine Model
3C100LWH-U2
3TNV88C-NJT2
Engine Type
Diesel
Diesel, naturally aspirated
No. of Cylinders
3
3
Displacement
61.5 in³
100.2 in³
Rated Engine Speed
3200 rpm
2500 rpm
Engine Power (Gross)
21 hp
30.7 hp
PTO Power
16.3 hp
25 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Not Published
Water pump
Air Cleaner
Not Published
Dry type with safety element
Fuel System
Not Published
High pressure common rail direct injection
Alternator
Not Published
55 A, 12 V
Pump Type
Not Published
Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston
Implement Flow
Not Published
5.3 gpm
Steering Flow
Not Published
4.0 gpm
Total Hydraulic Flow
7.2 gpm
9.3 gpm
Overall Hydraulic Pump Flow
7.2 gpm
10.3 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
None (rear hydraulics optional)
Not Published
No. of Optional Remote Valves
1 pair
Up to 2 (optional)
Fuel Tank Capacity
6.7 gal
7.5 gal
Coolant Capacity
Not Published
1.3 gal
Crankcase Capacity
Not Published
4.5 qt
Transmission / Hydraulic System Capacity
Not Published
5.5 gal
Front Axle Fluid Capacity
Not Published
1.0 gal
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Standard: 2200 rpm
Not Published
Category, 3-Point Hitch
Category 1 Limited
Category 1
Hitch Lift Capacity
Not Published
Not Published
Hitch Lift Capacity (at 24”)
700 lb
1356 lb
Lift Control Type
Hydraulic Position Control System
Position control
Transmission Type
2-Range HST
Hydrostatic (2-range)
No. of Speeds
Infinite forward and reverse (2-range)
Infinite (2-range HST)
Max Travel Speed (Forward)
11.1 mph
Not Published
Max Travel Speed (Reverse)
7.6 mph
Not Published
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Rear differential lock (standard)
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Power steering
Brakes
Wet multi-disc
Wet disc
Seat Suspension & Adjustability
Adjustable seat (standard)
Not Published
Front Axle Type
Four-wheel drive (standard)
4WD (MFWD)
Front Axle Rating
Not Published
1760 lb
Drawbar Capacity
Not Published
880 lb
Overall Length with 3-Point Hitch
99.3 in
115.9 in
Overall Width
45.7 in
56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)
Wheelbase
55.1 in
62.8 in
Ground Clearance
6.3 in
12.7 in (R4 tires)
Min. Turn Radius without Brakes
100.0 in (with brake applied)
9.4 ft (2.9 m)
Height to Top of ROPS
87.6 in
95.3 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
1521 lb
2266 lb
Weight with ROPS and Loader
Not Published
2972 lb
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front
18x8.5-10
7-14
R1 Agricultural - Rear
26x12.00-12
11.2-24
R3 Turf - Front
Not Published
27X8.50-15
R3 Turf - Rear
Not Published
41X14-20
R4 Industrial - Front
18x8.5-10
25X8.50-14 or 27X8.50-15
R4 Industrial - Rear
26x12.00-12
15.00-19.5 or 43X16-20
Quick Attach Loader System
Standard quick attach mounting system
Quick-change attachment carrier
Loader Model
FL6
D160
Loader Lift Height
71.9 in
84.0 in
Loader Lift Capacity (Full Height)
608 lb
1,186 lb
Loader Breakout Force
1554 lb
1,704 lb
Warranty Length & Coverage
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
