Bobcat CT1021 vs Kubota B2401

Across 9 measurable specs, the Kubota B2401 leads 7 categories to 1 (1 tied). Machine pages: Bobcat CT1021 and Kubota B2401.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1021	KubotaB2401

▶Engine
Engine Manufacturer	Daedong	Kubota
Engine Model	3C100LWH-U2	D1105
Engine Type	Diesel	E-TVCS, liquid cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	61.5 in³	68.5 in³
Rated Engine Speed	3200 rpm	2600 rpm
Engine Power (Gross)	21 hp	21.9 hp
PTO Power	16.3 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid Cooled
Air Cleaner	Not Published	Dual paper element
Fuel System	Not Published	Not Published
Alternator	Not Published	40 A
▶Hydraulics
Pump Type	Not Published	Dual pump
Implement Flow	Not Published	4.4 gpm
Steering Flow	Not Published	2.6 gpm
Total Hydraulic Flow	7.2 gpm	7.0 gpm
Overall Hydraulic Pump Flow	7.2 gpm	7.0 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None (rear hydraulics optional)	0
No. of Optional Remote Valves	1 pair	1
▶Fluid Capacity
Fuel Tank Capacity	6.7 gal	6.1 gal
Coolant Capacity	Not Published	4.0 qt
Crankcase Capacity	Not Published	3.3 qt
Transmission / Hydraulic System Capacity	Not Published	3.3 gal
Front Axle Fluid Capacity	Not Published	0.9 gal
▶PTO & Hitch
PTO Type	Independent	Transmission driven with one way clutch
PTO Rear	540 rpm	540, 1000 rpm
Mid-PTO Availability	Standard: 2200 rpm	2500 rpm
Category, 3-Point Hitch	Category 1 Limited	Category I
Hitch Lift Capacity	Not Published	1653 lb
Hitch Lift Capacity (at 24”)	700 lb	1290 lb
Lift Control Type	Hydraulic Position Control System	Position control valve
▶Transmission & Drivetrain
Transmission Type	2-Range HST	Gear (9 Forward, 3 Reverse)
No. of Speeds	Infinite forward and reverse (2-range)	9 Forward, 3 Reverse
Max Travel Speed (Forward)	11.1 mph	11.7 mph
Max Travel Speed (Reverse)	7.6 mph	6.0 mph
Clutch	Not Published	Dry single plate
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Wet multi-disc	Multi-plate wet disc
Seat Suspension & Adjustability	Adjustable seat (standard)	Fore and aft slide adjustment (position adjust lever)
Front Axle Type	Four-wheel drive (standard)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	660 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	99.3 in	93.9 in (without 3-point hitch)
Overall Width	45.7 in	44.3 in
Wheelbase	55.1 in	61.4 in
Ground Clearance	6.3 in	12.0 in
Min. Turn Radius without Brakes	100.0 in (with brake applied)	6.9 ft (with brake applied)
Height to Top of ROPS	87.6 in	83.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1521 lb	1521 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear; R14: 23x8.50-12 front, 12-16.5 rear
R1 Agricultural - Front	18x8.5-10	6-12
R1 Agricultural - Rear	26x12.00-12	9.5-16
R3 Turf - Front	Not Published	23x8.50-12
R3 Turf - Rear	Not Published	33x12.5-15
R4 Industrial - Front	18x8.5-10	23x8.50-12
R4 Industrial - Rear	26x12.00-12	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Standard quick attach mounting system	LA435 Swift-Tach Loader; 1-lever Quick Coupler (standard); 2-Lever Quick Coupler (optional)
Loader Model	FL6	LA435
Loader Lift Height	71.9 in	78.5 in
Loader Lift Capacity (Full Height)	608 lb	948 lb
Loader Breakout Force	1554 lb	2,146 lbf
▶Warranty
Warranty Length & Coverage	24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00

Find a dealer near you→Find a Kubota dealer near you→

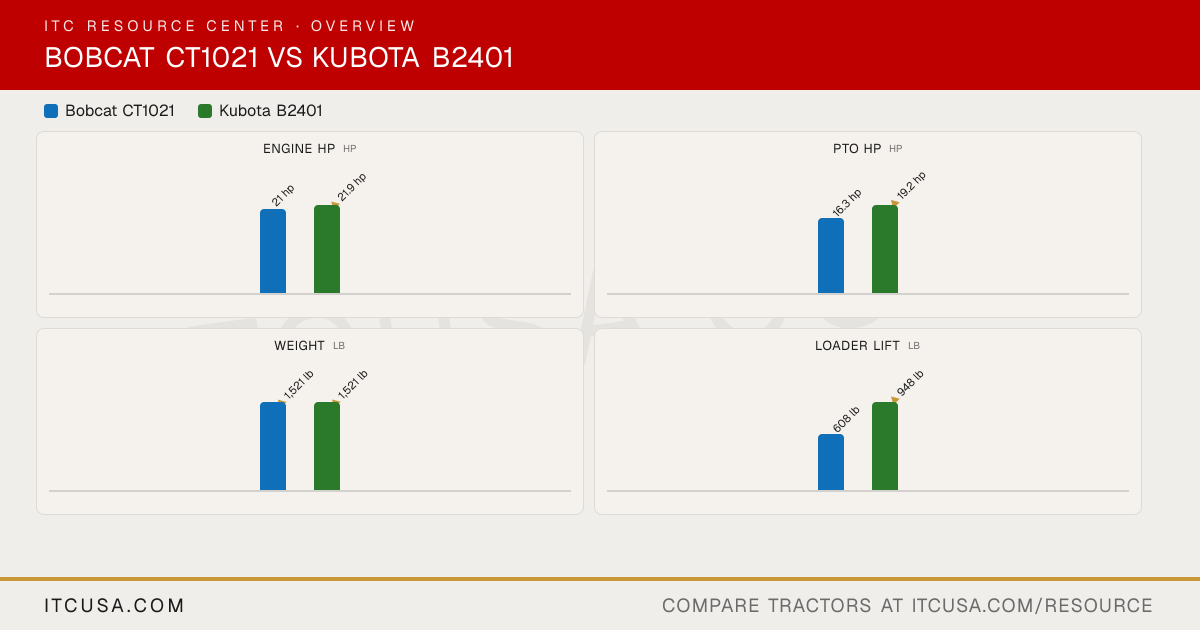

Bobcat CT1021 vs Kubota B2401: Quick Answers

Which has more horsepower, the Bobcat CT1021 or the Kubota B2401?

The Kubota B2401 leads on engine hp at 21.9 hp hp, compared to 21 hp hp for the Bobcat CT1021.

Which has more PTO horsepower, the Bobcat CT1021 or the Kubota B2401?

The Kubota B2401 leads on pto hp at 19.2 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.

Which is heavier, the Bobcat CT1021 or the Kubota B2401?

They are effectively tied: both machines are rated at 1,521 lb lb for weight.

Which has more loader lift capacity, the Bobcat CT1021 or the Kubota B2401?

The Kubota B2401 leads on loader lift at 948 lb lb, compared to 608 lb lb for the Bobcat CT1021.

Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Kubota B2401?

The Kubota B2401 leads on 3-pt lift (24 in) at 1,290 lb lb, compared to 700 lb lb for the Bobcat CT1021.
