Which has more horsepower, the Bobcat CT1021 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on engine hp at 24.4 hp hp, compared to 21 hp hp for the Bobcat CT1021.

Which has more PTO horsepower, the Bobcat CT1021 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on pto hp at 17.3 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.

Which has more loader lift capacity, the Bobcat CT1021 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 608 lb lb for the Bobcat CT1021.

Which has more three-point hitch lift capacity, the Bobcat CT1021 or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 700 lb lb for the Bobcat CT1021.

Bobcat CT1021 vs New Holland Workmaster 25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Workmaster 25 leads 8 categories to 0. Machine pages: Bobcat CT1021 and New Holland Workmaster 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat CT1021	New Holland Workmaster 25
Engine HP (hp)	21 hp	▲ 24.4 hp
PTO HP (hp)	16.3 hp	▲ 17.3 hp
Loader Lift (lb)	608 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	700 lb	▲ 1,433 lb
Lift Height (in)	71.9 in	▲ 72 in
Breakout Force (lbf)	1,554 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	7.2 gpm	▲ 12.5 gpm
Travel Speed (mph)	11.1 mph	▲ 14.3 mph

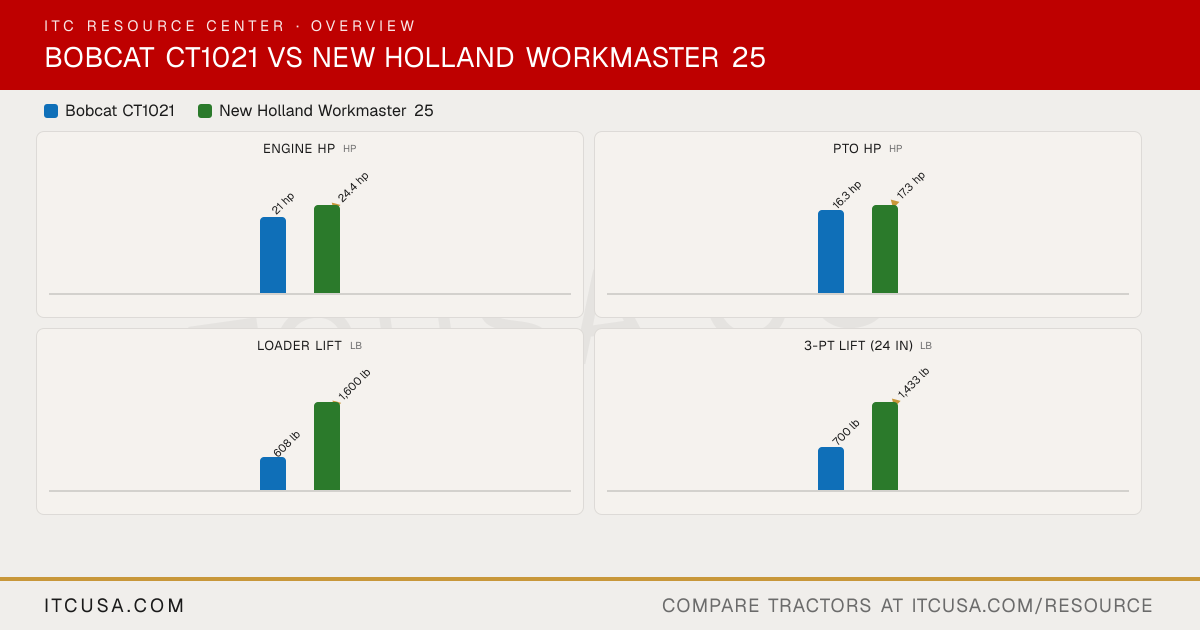

The headline numbers at a glance.

Bobcat CT1021New Holland Workmaster 25

Engine HPhp

21 hp

▲24.4 hp

PTO HPhp

16.3 hp

▲17.3 hp

Weightlb

—

Loader Liftlb

608 lb

▲1,600 lb

3-Pt Lift (24 in)lb

700 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1021	New HollandWorkmaster 25


PTO Power	16.3 hp	17.3 hp
Alternator	alternator	50 A, 12 V
Air Cleaner	NOT FOUND	Not Published
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Mechanical Fuel Injection; Indirect (Swirl chamber)	In-line injection pump
Displacement	61.4 in³	80.4 in³
Engine Model	3C100LWH-U2	—
No. of Cylinders	3	3
Rated Engine Speed	3200	2500 rpm
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	Daedong	Mitsubishi
Engine Power (Gross)	21 hp	24.4 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Mechanical
Steering Flow	N/A	4.6 gpm
Implement Flow	6.5 gpm (24.5 Lpm)	7.9 gpm
Total Hydraulic Flow	7.2 gpm	12.5 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	7.2 gpm	12.5 gpm
No. of Optional Remote Valves	1 Pair	1 or 2
No. of Standard Remote Valves	1	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent, electro-hydraulic engagement
Lift Control Type	Hydraulic Position Control System	Position control
Hitch Lift Capacity	700 lb.	1,808 lb
Mid-PTO Availability	Standard: 2200 rpm	HST: Standard; Gear: Optional
Category, 3-Point Hitch	Category 1 Limited	Category I
Hitch Lift Capacity (at 24”)	700 lb	1,433 lb

R3 Turf - Rear	26X12.00-12	41X14.00-20
R3 Turf - Front	18X8.5-10	25X8.50-14
Tire Size & Options	Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	26X12.00-12	43X16-20
R4 Industrial - Front	18X8.5-10	25X8.50-14
R1 Agricultural - Rear	26X12.00-12	11.2-24
R1 Agricultural - Front	18X8.5-10	7.0-14

Coolant Capacity	2.0 (1.9) qts (L)	5.2 qt
Crankcase Capacity	5.2 (4.9) qts (L)	4.4 qt
Fuel Tank Capacity	6.7 gal.	7.4 gal
Front Axle Fluid Capacity	NOT FOUND	6.9 qt
Transmission / Hydraulic System Capacity	NOT FOUND	8.5 gal

Loader Model	FL6	—
Loader Lift Height	71.9 in.	72 in
Loader Breakout Force	1554 lb.	2,637 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	200LC: Quick Mount system; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	608 lb.	1,600 lb

Clutch	Clutch-free (Hydrostatic)	HST: Not Applicable; Gear: 9.4 in
No. of Speeds	2	HST: 3-range; Gear: 12F/12R
Transmission Type	2-Range HST	HST: 3-range hydrostatic; Gear: 12x12 mechanical shuttle
Max Travel Speed (Forward)	11.1 mph (17.8 km/hr.)	HST: 14.33 mph; Gear: 13.78 mph
Max Travel Speed (Reverse)	7.6 mph (12.2 km/hr.)	HST: 10.79 mph; Gear: 13.10 mph
Differential Lock & Limited Slip Options	Std	Mechanical rear differential lock

Brakes	Wet Multi-disc	Wet disc
Steering	Hydrostatic Power Steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD (FWD)
Drawbar Capacity	7.7 kN / 1730 lb	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension Seat ■	Not Published

Wheelbase	55.1 in.	65.9 in
Overall Width	46.0 in.	54.1 in
Ground Clearance	6.3 in.	13 in
Height to Top of ROPS	87.6 in.	88.2 in
Height to Top of Cab Model	NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.	Not Applicable
Height to Top of ROPS (folded)	NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)	68.2 in
Min. Turn Radius without Brakes	100.0 in.	120 in
Overall Length with 3-Point Hitch	99.3 in.	131 in
