24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
3-year warranty; 7-year limited powertrain
Pump Type
Gear
Not Published
Steering Flow
N/A
Not Published
Implement Flow
6.5 gpm (24.5 Lpm)
Not Published
Total Hydraulic Flow
7.2 gpm
6.5 gpm
Hydraulic System Type
Open Center
Not Published
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
7.2 gpm
Not Published
No. of Optional Remote Valves
1 Pair
Not Published
No. of Standard Remote Valves
1
1
PTO Rear
540 rpm
540/540E rpm
PTO Type
Independent
Mechanical
Lift Control Type
Hydraulic Position Control System
Not Published
Hitch Lift Capacity
700 lb.
1,323 lb
Mid-PTO Availability
Standard: 2200 rpm
Not Published
Category, 3-Point Hitch
Category 1 Limited
CAT-1N
Hitch Lift Capacity (at 24”)
700 lb
Not Published
R3 Turf - Rear
26X12.00-12
33x15.5-16.5; 13.6x16
R3 Turf - Front
18X8.5-10
23x8.50-12; 25x8.50-14
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12.00-12
33x15.5-16.5
R4 Industrial - Front
18X8.5-10
23x8.50-12
R1 Agricultural - Rear
26X12.00-12
8.3x20; 8.3x24; 280/70 R18
R1 Agricultural - Front
18X8.5-10
6x12; 7x14; 6.5/80-12
Coolant Capacity
2.0 (1.9) qts (L)
Not Published
Crankcase Capacity
5.2 (4.9) qts (L)
Not Published
Fuel Tank Capacity
6.7 gal.
5.8 gal
Front Axle Fluid Capacity
NOT FOUND
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND
Not Published
Loader Model
FL6
—
Loader Lift Height
71.9 in.
85 in
Loader Breakout Force
1554 lb.
1,146 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
XB24 (MSL)
Loader Lift Capacity (Full Height)
608 lb.
1,411 lb
Clutch
Clutch-free (Hydrostatic)
Not Published
No. of Speeds
2
9F+9R
Transmission Type
2-Range HST
Constant Mesh with Synchromesh Shuttle transmission
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
Not Published
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
Not Published
Differential Lock & Limited Slip Options
Std
NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source
Brakes
Wet Multi-disc
Oil immersed brakes; mechanical, foot operated
Steering
Hydrostatic Power Steering
Power steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
4WD
Drawbar Capacity
7.7 kN / 1730 lb
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension Seat ■
Not Published
Wheelbase
55.1 in.
61.8 in
Overall Width
46.0 in.
47.83 in
Ground Clearance
6.3 in.
9.44 in
Height to Top of ROPS
87.6 in.
91.53 in
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
Not Published
Min. Turn Radius without Brakes
100.0 in.
Not Published
Overall Length with 3-Point Hitch
99.3 in.
113.98 in

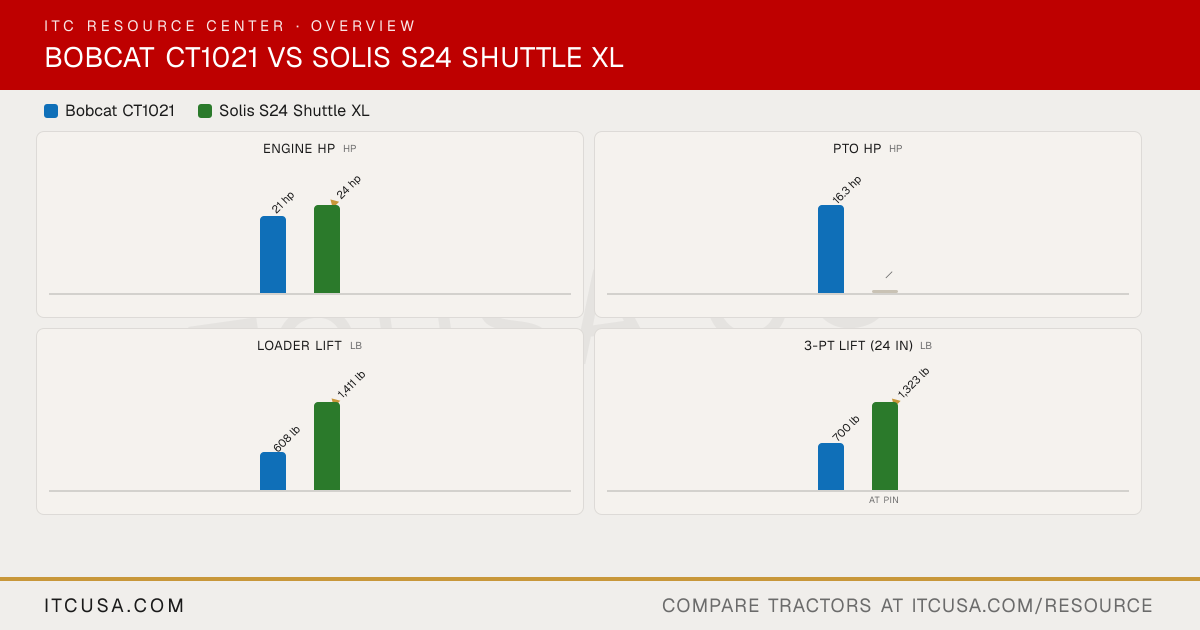

Bobcat CT1021 vs Solis S24 Shuttle XL: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Solis S24 Shuttle XL?
The Solis S24 Shuttle XL leads on engine hp at 24 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the Solis S24 Shuttle XL?
The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Solis S24 Shuttle XL?
The Solis S24 Shuttle XL leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 700 lb lb for the Bobcat CT1021.
