Which has more horsepower, the Bobcat CT1021 or the TYM T224?

The TYM T224 leads on engine hp at 21.5 hp hp, compared to 21 hp hp for the Bobcat CT1021.

Which has more PTO horsepower, the Bobcat CT1021 or the TYM T224?

The Bobcat CT1021 leads on pto hp at 16.3 hp hp, compared to 15.1 hp hp for the TYM T224.

Which has more loader lift capacity, the Bobcat CT1021 or the TYM T224?

The TYM T224 leads on loader lift at 617 lb lb, compared to 608 lb lb for the Bobcat CT1021.

Which has more three-point hitch lift capacity, the Bobcat CT1021 or the TYM T224?

The Bobcat CT1021 leads on 3-pt lift (24 in) at 700 lb lb, compared to 679 lb lb for the TYM T224.

Bobcat CT1021 vs TYM T224

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Bobcat CT1021 leads 6 categories to 2. Machine pages: Bobcat CT1021 and TYM T224.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat CT1021	TYM T224
Engine HP (hp)	21 hp	▲ 21.5 hp
PTO HP (hp)	▲ 16.3 hp	15.1 hp
Loader Lift (lb)	608 lb	▲ 617 lb
3-Pt Lift (24 in) (lb)	▲ 700 lb	679 lb
Lift Height (in)	▲ 71.9 in	71.3 in
Breakout Force (lbf)	▲ 1,554 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 7.2 gpm	6.7 gpm
Travel Speed (mph)	▲ 11.1 mph	8.4 mph

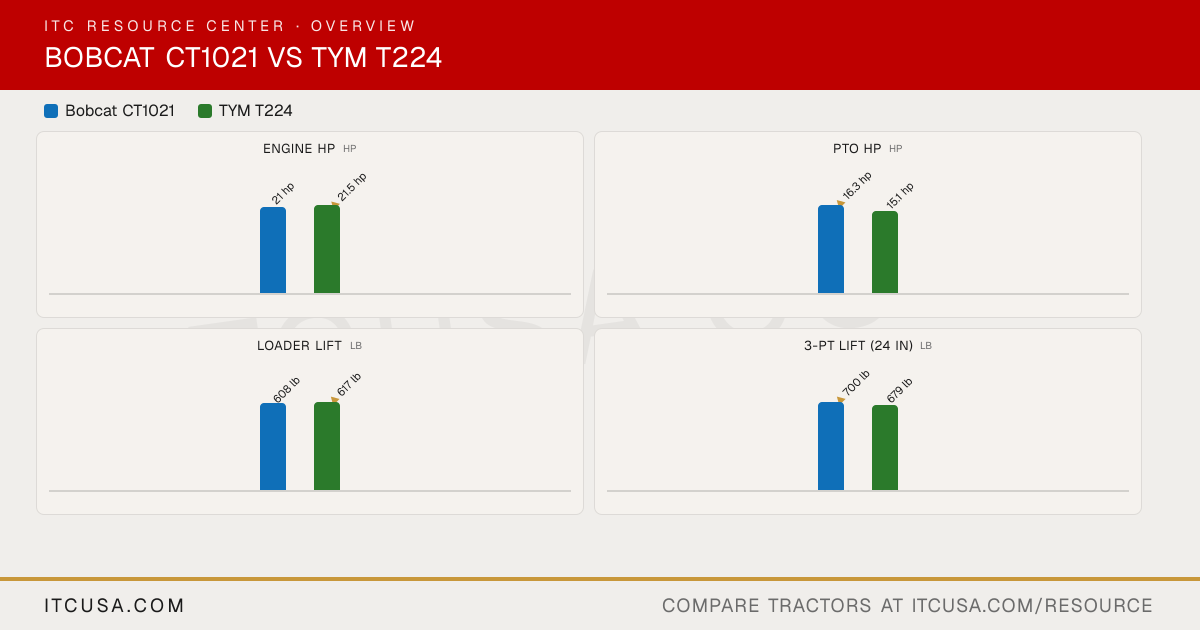

The headline numbers at a glance.

Bobcat CT1021TYM T224

Engine HPhp

21 hp

▲21.5 hp

PTO HPhp

▲16.3 hp

15.1 hp

Weightlb

—

Loader Liftlb

608 lb

▲617 lb

3-Pt Lift (24 in)lb

▲700 lb

679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT1021	TYMT224


PTO Power	16.3 hp	15.1 hp
Alternator	alternator	40 A, 12 V
Air Cleaner	NOT FOUND	Single dry
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Mechanical Fuel Injection; Indirect (Swirl chamber)	IDI
Displacement	61.4 in³	60.6 in³
Engine Model	3C100LWH-U2	—
No. of Cylinders	3	3
Rated Engine Speed	3200	3200 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Daedong	Yanmar
Engine Power (Gross)	21 hp	21.5 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear	Single gear pump
Steering Flow	N/A	2.1 gpm
Implement Flow	6.5 gpm (24.5 Lpm)	4.6 gpm
Total Hydraulic Flow	7.2 gpm	6.7 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	7.2 gpm	6.7 gpm
No. of Optional Remote Valves	1 Pair	1
No. of Standard Remote Valves	1	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Hydraulic Position Control System	Position control
Hitch Lift Capacity	700 lb.	1,100 lb
Mid-PTO Availability	Standard: 2200 rpm	Available
Category, 3-Point Hitch	Category 1 Limited	Category I (Narrow)
Hitch Lift Capacity (at 24”)	700 lb	679 lb

R3 Turf - Rear	26X12.00-12	Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front	18X8.5-10	Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options	Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	26X12.00-12	WT300 26x12.00-12 NHS TL 4PR
R4 Industrial - Front	18X8.5-10	WT300 18x8.5-10 NHS TL 4PR
R1 Agricultural - Rear	26X12.00-12	BAR R 24x12.00-12
R1 Agricultural - Front	18X8.5-10	BAR F 16x6.50-8

Coolant Capacity	2.0 (1.9) qts (L)	3.7 qt
Crankcase Capacity	5.2 (4.9) qts (L)	1.9 qt
Fuel Tank Capacity	6.7 gal.	6.6 gal
Front Axle Fluid Capacity	NOT FOUND	2.6 qt
Transmission / Hydraulic System Capacity	NOT FOUND	3.6 gal

Loader Model	FL6	—
Loader Lift Height	71.9 in.	71.3 in
Loader Breakout Force	1554 lb.	1,235 lb
Quick Attach Loader System	Standard Quick Attach Mounting System	TX22H: Quick attach mechanism
Loader Lift Capacity (Full Height)	608 lb.	617 lb

Clutch	Clutch-free (Hydrostatic)	Not applicable
No. of Speeds	2	Infinite 2-Range
Transmission Type	2-Range HST	HST
Max Travel Speed (Forward)	11.1 mph (17.8 km/hr.)	8.4 mph
Max Travel Speed (Reverse)	7.6 mph (12.2 km/hr.)	Not Published
Differential Lock & Limited Slip Options	Std	Differential lock

Brakes	Wet Multi-disc	Wet disc
Steering	Hydrostatic Power Steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	7.7 kN / 1730 lb	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Suspension Seat ■	Not Published

Wheelbase	55.1 in.	53.1 in
Overall Width	46.0 in.	44.5 in
Ground Clearance	6.3 in.	8.3 in
Height to Top of ROPS	87.6 in.	86.6 in
Height to Top of Cab Model	NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.	Not Published
Height to Top of ROPS (folded)	NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)	Not Published
Min. Turn Radius without Brakes	100.0 in.	86.6 in
Overall Length with 3-Point Hitch	99.3 in.	94.2 in
