Bobcat CT2535 vs Kubota LX3520DTN
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 6 measurable specs, the Kubota LX3520DTN leads 3 categories to 2 (1 tied). Machine pages: Bobcat CT2535 and Kubota LX3520DTN.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

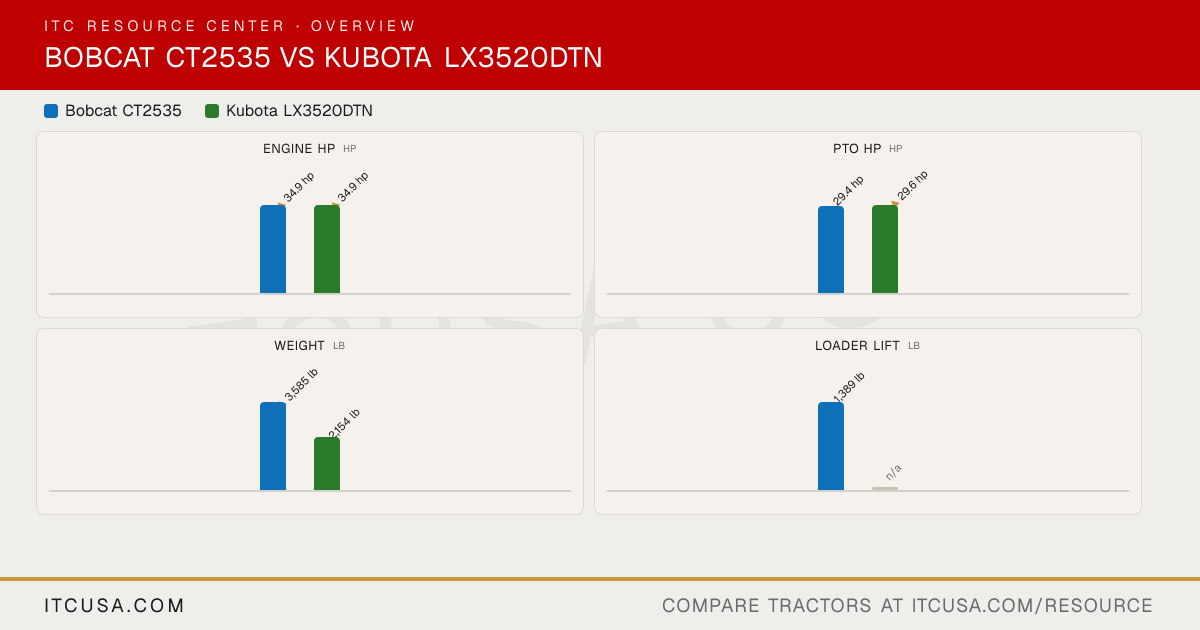

Category Verdict
| Spec | Bobcat CT2535 | Kubota LX3520DTN |
|---|---|---|
| Engine HP (hp) | 34.9 hp | 34.9 hp |
| PTO HP (hp) | 29.4 hp | ▲ 29.6 hp |
| Weight (lb) | ▲ 3,585 lb | 2,154 lb |
| Loader Lift (lb) | 1,389 lb | n/a |
| 3-Pt Lift (24 in) (lb) | 1,631 lb | ▲ 1,819 lb |
| Lift Height (in) | 99.6 in | n/a |
| Breakout Force (lbf) | 3,285 lbf | n/a |
| Hydraulic Flow (gpm) | ▲ 11.4 gpm | 9.1 gpm |
| Travel Speed (mph) | 14 mph | ▲ 14.7 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | BobcatCT2535 | KubotaLX3520DTN |
|---|
| Engine Manufacturer | Daedong | Kubota |
|---|---|---|
| Engine Model | 3F-TM(H)4 | V1505-CR-TE5-D40R6 |
| Engine Type | 3-cylinder, water-cooled, 4-cycle, vertical in-line CRDI diesel | Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger |
| No. of Cylinders | 3 | 4 |
| Displacement | 111.4 in³ | 91.4 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 34.9 hp | 34.9 hp |
| PTO Power | 29.4 hp | 29.6 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Water-cooled | Pressurized radiator |
| Air Cleaner | Dry type, replaceable | 6 in paper filter (with dual element) |
| Fuel System | Common rail direct injection (CRDI) | Direct injection |
| Alternator | 75 A, 12 V | Not Published |
Bobcat CT2535 vs Kubota LX3520DTN: Quick Answers
- Which has more horsepower, the Bobcat CT2535 or the Kubota LX3520DTN?
- They are effectively tied: both machines are rated at 34.9 hp hp for engine hp.
- Which has more PTO horsepower, the Bobcat CT2535 or the Kubota LX3520DTN?
- The Kubota LX3520DTN leads on pto hp at 29.6 hp hp, compared to 29.4 hp hp for the Bobcat CT2535.
- Which is heavier, the Bobcat CT2535 or the Kubota LX3520DTN?
- The Bobcat CT2535 leads on weight at 3,585 lb lb, compared to 2,154 lb lb for the Kubota LX3520DTN.
- Which has more three-point hitch lift capacity, the Bobcat CT2535 or the Kubota LX3520DTN?
- The Kubota LX3520DTN leads on 3-pt lift (24 in) at 1,819 lb lb, compared to 1,631 lb lb for the Bobcat CT2535.
