Bad Boy Tractors 3026 vs Bobcat CT2535

Across 9 measurable specs, the Bobcat CT2535 leads 8 categories to 1. Machine pages: Bad Boy Tractors 3026 and Bobcat CT2535.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

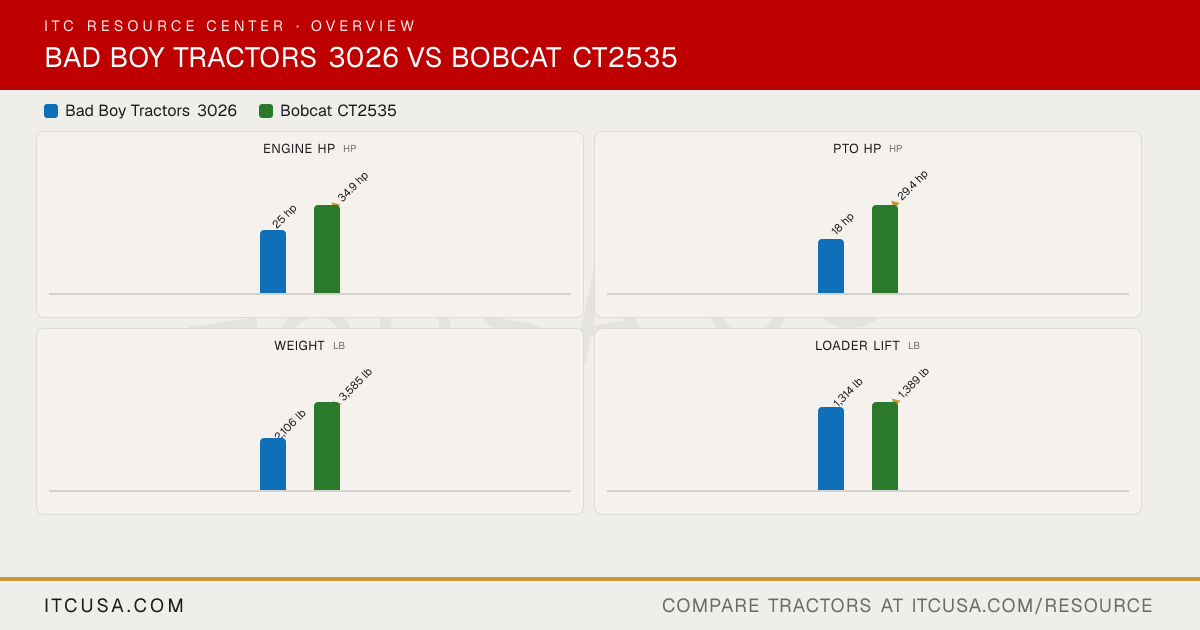

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	BobcatCT2535

▶Engine
Engine Manufacturer	TYM	Daedong
Engine Model	A1100N2	3F-TM(H)4
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	3-cylinder diesel
No. of Cylinders	3	3
Displacement	71.7 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	34.9 hp
PTO Power	18 hp	29.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	6.9 gpm
Steering Flow	3.1 gpm	4.5 gpm
Total Hydraulic Flow	7.4 gpm	11.4 gpm
Overall Hydraulic Pump Flow	7.7 gpm	11.4 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	2 pairs
No. of Optional Remote Valves	1	None additional; 2 pairs are standard
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	9.0 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional, 1988 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	1,631 lb
Lift Control Type	Position control	Hydraulic position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic (HST), 3-range
No. of Speeds	3 range (L/M/H)	Infinite (3 ranges)
Max Travel Speed (Forward)	14.8 mph	14.0 mph
Max Travel Speed (Reverse)	14.8 mph	9.7 mph
Clutch	Dry, single plate	n/a (hydrostatic transmission)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Adjustable seat with fully retractable seat belt
Front Axle Type	Selectable 4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	Not Published
Wheelbase	65.7 in	65.7 in
Ground Clearance	16.4 in	12.3 in
Min. Turn Radius without Brakes	Not Published	106.3 in
Height to Top of ROPS	91.4 in	n/a (cab model)
Height to Top of ROPS (folded)	Not Published	n/a (cab model)
Height to Top of Cab Model	Not Published	91.0 in
Overall Length	110 in	120.9 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	2,106 lb	3,585 lb
Weight with ROPS and Loader	Not Published	n/a (cab model)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	Agricultural, Turf, Industrial
R1 Agricultural - Front	7-16 6PR	Not Published
R1 Agricultural - Rear	11.2-20	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	14x17.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Standard quick attach mounting system
Loader Model	BBL300	FL8
Loader Lift Height	86 in	99.4 in
Loader Lift Capacity (Full Height)	1,314 lb	1,389 lb
Loader Breakout Force	1,960 lbf	3,285 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 24 months or 1,500 hours, defects in material and workmanship
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 3026 vs Bobcat CT2535: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Bobcat CT2535?

The Bobcat CT2535 leads on engine hp at 34.9 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Bobcat CT2535?

The Bobcat CT2535 leads on pto hp at 29.4 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Bobcat CT2535?

The Bobcat CT2535 leads on weight at 3,585 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Bobcat CT2535?

The Bobcat CT2535 leads on loader lift at 1,389 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Bobcat CT2535?

The Bobcat CT2535 leads on 3-pt lift (24 in) at 1,631 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
