Which has more horsepower, the Bobcat CT5545 or the Kioti NX4510H?

They are effectively tied: both machines are rated at 45 hp hp for engine hp.

Which has more PTO horsepower, the Bobcat CT5545 or the Kioti NX4510H?

They are effectively tied: both machines are rated at 33.9 hp hp for pto hp.

Which has more loader lift capacity, the Bobcat CT5545 or the Kioti NX4510H?

The Kioti NX4510H leads on loader lift at 2,761 lb lb, compared to 2,346 lb lb for the Bobcat CT5545.

Which has more three-point hitch lift capacity, the Bobcat CT5545 or the Kioti NX4510H?

They are effectively tied: both machines are rated at 3,177 lb lb for 3-pt lift (24 in).

Bobcat CT5545 vs Kioti NX4510H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Kioti NX4510H leads 2 categories to 1 (3 tied). Machine pages: Bobcat CT5545 and Kioti NX4510H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bobcat CT5545	Kioti NX4510H
Engine HP (hp)	45 hp	45 hp
PTO HP (hp)	33.9 hp	33.9 hp
Weight (lb)	—	4,000 lb
Loader Lift (lb)	2,346 lb	▲ 2,761 lb
3-Pt Lift (24 in) (lb)	3,177 lb	3,177 lb
Lift Height (in)	—	108.3 in
Breakout Force (lbf)	—	3,727 lbf
Hydraulic Flow (gpm)	17.8 gpm	▲ 17.9 gpm
Travel Speed (mph)	▲ 17.5 mph	16.5 mph

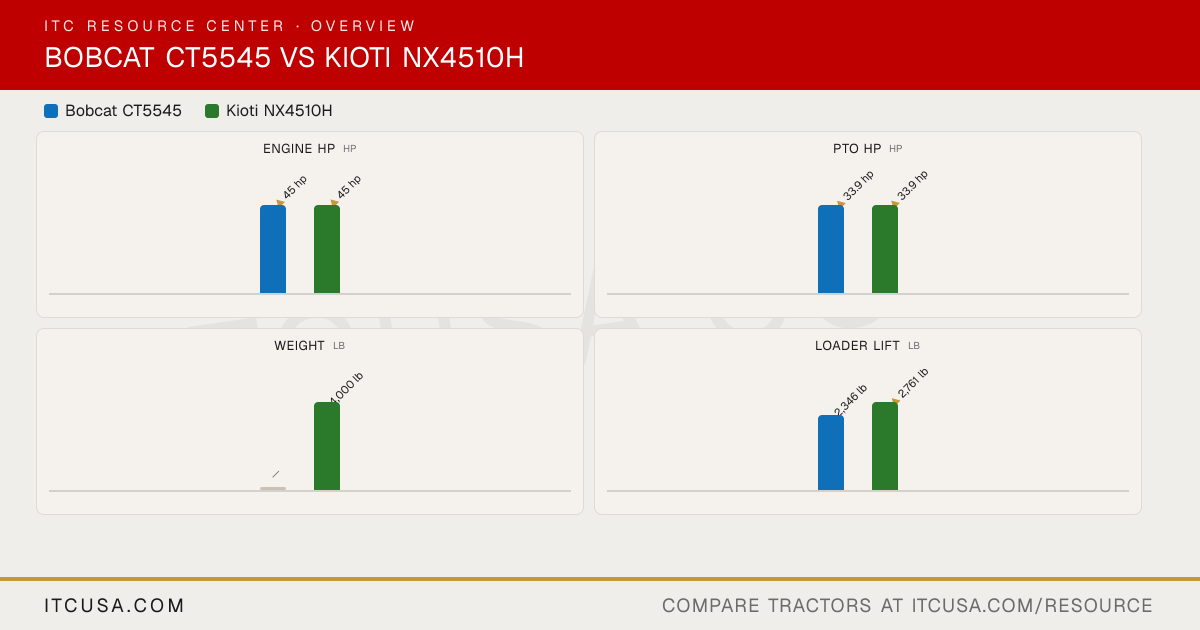

The headline numbers at a glance.

Bobcat CT5545Kioti NX4510H

Engine HPhp

▲45 hp

PTO HPhp

▲33.9 hp

Weightlb

—

4,000 lb

Loader Liftlb

2,346 lb

▲2,761 lb

3-Pt Lift (24 in)lb

▲3,177 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT5545	KiotiNX4510H


PTO Power	33.9 hp	33.9 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Not Published	Common Rail Direct Injection (CRDI)
Displacement	109.8 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2750 rpm	2600 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	Not Published	KIOTI (Daedong)
Engine Power (Gross)	45 hp	45 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Applicable	4,000 lb
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	24 months / 1,500 hours (whichever occurs first)	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)

Pump Type	Not Published	Gear
Steering Flow	8.2 gpm	8.2 gpm
Implement Flow	9.6 gpm	9.6 gpm
Total Hydraulic Flow	17.8 gpm	17.90 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	17.8 gpm	17.90 gpm
No. of Optional Remote Valves	2	1
No. of Standard Remote Valves	1	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position with Draft Control	Position with Draft Control
Hitch Lift Capacity	3,177 lb	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional: 2,103 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	3,177 lb	3,177 lbs

R3 Turf - Rear	Not Published	21.5lx16.1
R3 Turf - Front	Not Published	29x12.5-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	14.9-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	Not Published	13.6-24
R1 Agricultural - Front	Not Published	8.0-16

Coolant Capacity	Not Published	2.0 gal
Crankcase Capacity	Not Published	1.58 gal
Fuel Tank Capacity	14.8 gal	14.8 gal
Front Axle Fluid Capacity	Not Published	1.8 gal
Transmission / Hydraulic System Capacity	Not Published	11.89 gal

Loader Lift Height	Not Published	108.3 in
Loader Breakout Force	Not Published	3,727 lb
Quick Attach Loader System	Not Published	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	2,346 lb	2,761 lb

Clutch	Not Applicable	None
No. of Speeds	Not Applicable	3 Range
Transmission Type	Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.)	Hydrostatic
Max Travel Speed (Forward)	17.5 mph (28.2 km/hr)	16.52 mph
Max Travel Speed (Reverse)	17.5 mph (28.2 km/hr)	16.52 mph
Differential Lock & Limited Slip Options	Std	Differential Lock: Rear (Standard)

Brakes	Wet Multi-Disc	Wet Multi Disc
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Adjustable Seat

Wheelbase	75.6 in	75.6 in
Overall Width	74.2 in	65.6 in
Ground Clearance	13.0 in	13.7 in
Height to Top of ROPS	Not Applicable	103.1 in
Height to Top of Cab Model	94.2 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	117.6 in	9.81 ft (2.99 m)
Overall Length with 3-Point Hitch	139.6 in	139.6 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Bobcat CT5545 vs Kioti NX4510H: Quick Answers

Which has more horsepower, the Bobcat CT5545 or the Kioti NX4510H?: They are effectively tied: both machines are rated at 45 hp hp for engine hp.
Which has more PTO horsepower, the Bobcat CT5545 or the Kioti NX4510H?: They are effectively tied: both machines are rated at 33.9 hp hp for pto hp.
Which has more loader lift capacity, the Bobcat CT5545 or the Kioti NX4510H?: The Kioti NX4510H leads on loader lift at 2,761 lb lb, compared to 2,346 lb lb for the Bobcat CT5545.
Which has more three-point hitch lift capacity, the Bobcat CT5545 or the Kioti NX4510H?: They are effectively tied: both machines are rated at 3,177 lb lb for 3-pt lift (24 in).
