Across 6 measurable specs, the Yanmar YT347 leads 4 categories to 2. Machine pages: Bobcat CT5545 and Yanmar YT347.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bobcat CT5545 | Yanmar YT347 |
|---|
| Engine HP (hp) | 45 hp | ▲ 46 hp |
| PTO HP (hp) | 33.9 hp | ▲ 39.5 hp |
| Weight (lb) | — | 4,976 lb |
| Loader Lift (lb) | 2,346 lb | ▲ 2,500 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,177 lb | 2,756 lb |
| Lift Height (in) | — | 113 in |
| Breakout Force (lbf) | — | 3,969 lbf |
| Hydraulic Flow (gpm) | ▲ 17.8 gpm | 15.8 gpm |
| Travel Speed (mph) | 17.5 mph | ▲ 18 mph |

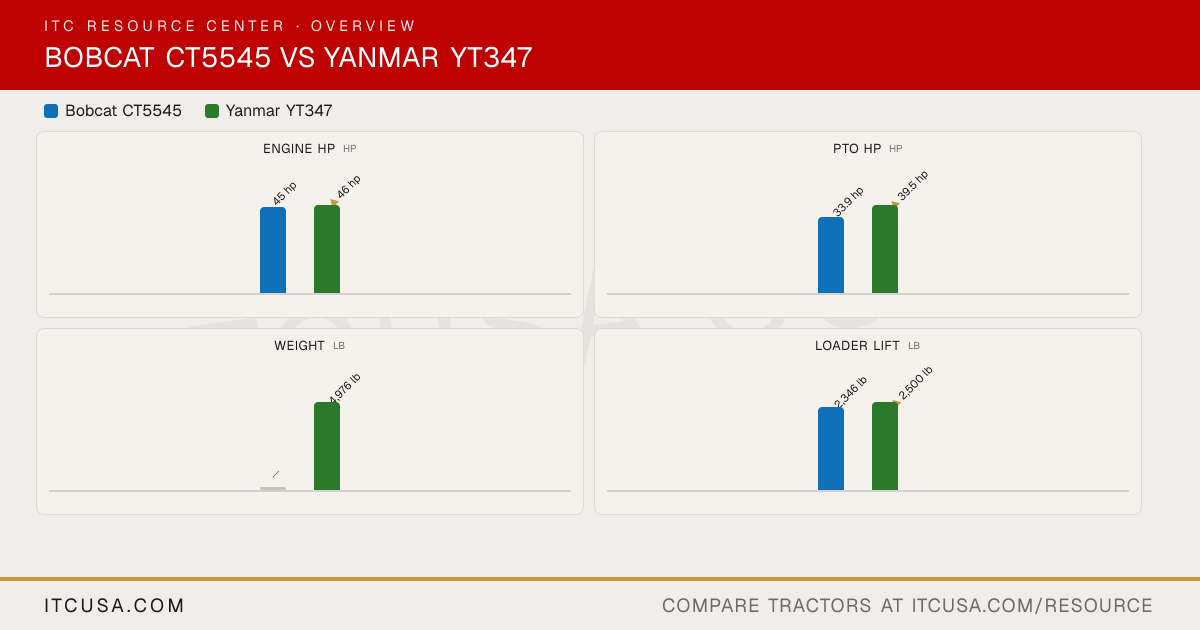

The headline numbers at a glance.
Bobcat CT5545Yanmar YT347
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | BobcatCT5545 | YanmarYT347 |
|---|
|
|---|
| PTO Power | 33.9 hp | 39.5 hp |
|---|
| Alternator | Not Published | 55 A, 12 V |
|---|
| Air Cleaner | Not Published | Dual stage cyclonic (resin 5.5") |
|---|
| Engine Type | Diesel | 4-cylinder, naturally aspirated diesel |
|---|
| Fuel System | Not Published | Common rail direct injection |
|---|
| Displacement | 109.8 in³ | 133.6 in³ |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Rated Engine Speed | 2750 rpm | 2800 rpm |
|---|
| Cooling System Type | Not Published | Liquid cooled |
|---|
| Engine Manufacturer | Not Published | YANMAR |
|---|
| Engine Power (Gross) | 45 hp | 46 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Applicable | 4,976 lb |
|---|
| Weight with Cab and Loader | Not Published | Not Applicable |
|---|
|
|---|
| Warranty Length & Coverage | 24 months / 1,500 hours (whichever occurs first) | Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Steering Flow | 8.2 gpm | 5.7 gpm |
|---|
| Implement Flow | 9.6 gpm | 10.1 gpm |
|---|
| Total Hydraulic Flow | 17.8 gpm | 15.8 gpm |
|---|
| Hydraulic System Type | Not Published | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 17.8 gpm | 15.8 gpm |
|---|
| No. of Optional Remote Valves | 2 | 1 |
|---|
| No. of Standard Remote Valves | 1 | 2 |
|---|
|
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| PTO Type | Independent | Independent (electro-hydraulic) |
|---|
| Lift Control Type | Position with Draft Control | Position control |
|---|
| Hitch Lift Capacity | 3,177 lb | 3,307 lb |
|---|
| Mid-PTO Availability | Optional: 2,103 rpm | Not Published |
|---|
| Category, 3-Point Hitch | Category 1 | Category I |
|---|
| Hitch Lift Capacity (at 24”) | 3,177 lb | 2,756 lb |
|---|
|
|---|
| R3 Turf - Rear | Not Published | 44 x 18 - 20.0 |
|---|
| R3 Turf - Front | Not Published | 27.0 - 10.5 |
|---|
| Tire Size & Options | Not Published | R1 Agricultural; R3 Turf; R4 Industrial |
|---|
| R4 Industrial - Rear | Not Published | 4.6 gal - 24.0 |
|---|
| R4 Industrial - Front | Not Published | 10.0 - 16.5 |
|---|
| R1 Agricultural - Rear | Not Published | 14.9 - 24.0 |
|---|
| R1 Agricultural - Front | Not Published | 8.0 - 16.0 |
|---|
|
|---|
| Coolant Capacity | Not Published | 6.2 qt |
|---|
| Crankcase Capacity | Not Published | 7.0 qt |
|---|
| Fuel Tank Capacity | 14.8 gal | 12.7 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 2.4 gal |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 7.7 gal |
|---|
|
|---|
| Loader Lift Height | Not Published | 113 in |
|---|
| Loader Breakout Force | Not Published | 3,969 lb |
|---|
| Quick Attach Loader System | Not Published | YL610: Skid-steer-style loader quick attachment system |
|---|
| Loader Lift Capacity (Full Height) | 2,346 lb | 2,500 lb |
|---|
|
|---|
| Clutch | Not Applicable | Clutch-less shifting (i-HMT) |
|---|
| No. of Speeds | Not Applicable | 3 ranges (variable speed) |
|---|
| Transmission Type | Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.) | I-HMT (Integrated Hydro Mechanical Transmission) |
|---|
| Max Travel Speed (Forward) | 17.5 mph (28.2 km/hr) | 18 mph |
|---|
| Max Travel Speed (Reverse) | 17.5 mph (28.2 km/hr) | 18 mph |
|---|
| Differential Lock & Limited Slip Options | Std | Rear differential lock (foot pedal engagement) |
|---|
|
|---|
| Brakes | Wet Multi-Disc | Mechanical wet disc |
|---|
| Steering | Hydrostatic power steering | Fully hydraulic power steering |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Selectable 2WD/4WD engagement |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 75.6 in | 75.9 in |
|---|
| Overall Width | 74.2 in | 70.6 in |
|---|
| Ground Clearance | 13.0 in | 12.8 in |
|---|
| Height to Top of ROPS | Not Applicable | 95.7 in |
|---|
| Height to Top of Cab Model | 94.2 in | Not Applicable |
|---|
| Height to Top of ROPS (folded) | Not Applicable | Not Published |
|---|
| Min. Turn Radius without Brakes | 117.6 in | Not Published |
|---|
| Overall Length with 3-Point Hitch | 139.6 in | 130.9 in |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Bobcat CT5545 vs Yanmar YT347: Quick Answers
- Which has more horsepower, the Bobcat CT5545 or the Yanmar YT347?
- The Yanmar YT347 leads on engine hp at 46 hp hp, compared to 45 hp hp for the Bobcat CT5545.
- Which has more PTO horsepower, the Bobcat CT5545 or the Yanmar YT347?
- The Yanmar YT347 leads on pto hp at 39.5 hp hp, compared to 33.9 hp hp for the Bobcat CT5545.
- Which has more loader lift capacity, the Bobcat CT5545 or the Yanmar YT347?
- The Yanmar YT347 leads on loader lift at 2,500 lb lb, compared to 2,346 lb lb for the Bobcat CT5545.
- Which has more three-point hitch lift capacity, the Bobcat CT5545 or the Yanmar YT347?
- The Bobcat CT5545 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,756 lb lb for the Yanmar YT347.
