Case IH Farmall 25A Mechanical vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Case IH Farmall 25A Mechanical leads 6 categories to 2. Machine pages: Case IH Farmall 25A Mechanical and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A Mechanical	New Holland Workmaster 25S
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	17.2 hp
Weight (lb)	▲ 2,469 lb	1,444 lb
Loader Lift (lb)	▲ 1,214 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 94.3 in	72 in
Breakout Force (lbf)	1,926 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	6.7 gpm
Travel Speed (mph)	n/a	9.1 mph

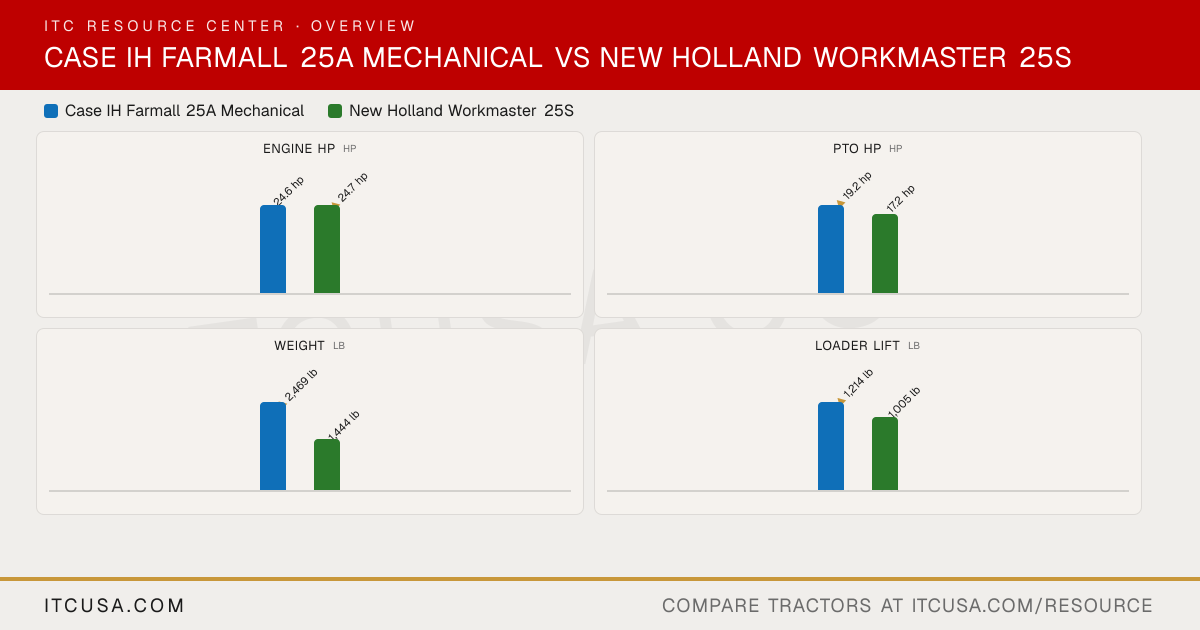

The headline numbers at a glance.

Case IH Farmall 25A MechanicalNew Holland Workmaster 25S

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

17.2 hp

Weightlb

▲2,469 lb

1,444 lb

Loader Liftlb

▲1,214 lb

1,005 lb

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A Mechanical	New HollandWorkmaster 25S


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	n/a
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.4 in³	76.9 in³
Rated Engine Speed	2500 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24.7 hp
PTO Power	19.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final
Cooling System Type	Liquid-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	3.5 qt
Crankcase Capacity	Not Published	3.0 qt
Transmission / Hydraulic System Capacity	Not Published	3.0 gal
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	992 lb at ball ends
Hitch Lift Capacity (at 24”)	1,433 lb	728 lb
Lift Control Type	Not Published	Lift-hold-lower

Transmission Type	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)	2-Range Hydrostatic / Dual Pedal
No. of Speeds	12 forward, 12 reverse	Infinite (2-range)
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	5.5 mph
Clutch	Dry clutch	Not Applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical, foot-operated rear diff lock

Frame Type	Not Published	Not Published
Steering	Power steering	Central support, bevel gear type
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	117.2 in	97.4 in
Overall Width	Not Published	46.7 in
Wheelbase	65.9 in	56.1 in
Ground Clearance	Not Published	12 in
Min. Turn Radius without Brakes	Not Published	94 in
Height to Top of ROPS	88.2 in	90 in
Height to Top of ROPS (folded)	68.2 in	64 in
Height to Top of Cab Model	Not Published	87.4 in

Tractor Weight (Base)	2,469 lb	n/a
Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	Not Published	1,805 lb (Cab tractor only)

Tire Size & Options	Not Published	R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	Not Applicable
R1 Agricultural - Rear	Not Published	Not Applicable
R3 Turf - Front	Not Published	18X8.50-10
R3 Turf - Rear	Not Published	26X12.0-12
R4 Industrial - Front	Not Published	18X8.50-10
R4 Industrial - Rear	Not Published	26X12.0-12

Quick Attach Loader System	Not Published	100LC: Quick Mount system (no tools)
Loader Model	L330	n/a
Loader Lift Height	94.3 in	72 in
Loader Lift Capacity (Full Height)	1214 lb	1,005 lb
Loader Breakout Force	1926 lb	2,078 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 25A Mechanical vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall 25A Mechanical.
Which has more PTO horsepower, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?: The Case IH Farmall 25A Mechanical leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which is heavier, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?: The Case IH Farmall 25A Mechanical leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.
Which has more loader lift capacity, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?: The Case IH Farmall 25A Mechanical leads on loader lift at 1,214 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?: The Case IH Farmall 25A Mechanical leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

More Head-to-Heads

Case IH

Farmall 25A Mechanical

Farmall 25A Mechanical

Farmall 25A Mechanical

Farmall 25A Mechanical

Farmall 25A Mechanical

Category Verdict

Spec	Case IH Farmall 25A Mechanical	New Holland Workmaster 25S
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	17.2 hp
Weight (lb)	▲ 2,469 lb	1,444 lb
Loader Lift (lb)	▲ 1,214 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 94.3 in	72 in
Breakout Force (lbf)	1,926 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	6.7 gpm
Travel Speed (mph)	n/a	9.1 mph

The headline numbers at a glance.

Case IH Farmall 25A MechanicalNew Holland Workmaster 25S

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

17.2 hp

Weightlb

▲2,469 lb

1,444 lb

Loader Liftlb

▲1,214 lb

1,005 lb

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A Mechanical	New HollandWorkmaster 25S


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	n/a
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.4 in³	76.9 in³
Rated Engine Speed	2500 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24.7 hp
PTO Power	19.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final
Cooling System Type	Liquid-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	3.5 qt
Crankcase Capacity	Not Published	3.0 qt
Transmission / Hydraulic System Capacity	Not Published	3.0 gal
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	992 lb at ball ends
Hitch Lift Capacity (at 24”)	1,433 lb	728 lb
Lift Control Type	Not Published	Lift-hold-lower

Transmission Type	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)	2-Range Hydrostatic / Dual Pedal
No. of Speeds	12 forward, 12 reverse	Infinite (2-range)
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	5.5 mph
Clutch	Dry clutch	Not Applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical, foot-operated rear diff lock

Frame Type	Not Published	Not Published
Steering	Power steering	Central support, bevel gear type
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	117.2 in	97.4 in
Overall Width	Not Published	46.7 in
Wheelbase	65.9 in	56.1 in
Ground Clearance	Not Published	12 in
Min. Turn Radius without Brakes	Not Published	94 in
Height to Top of ROPS	88.2 in	90 in
Height to Top of ROPS (folded)	68.2 in	64 in
Height to Top of Cab Model	Not Published	87.4 in

Tractor Weight (Base)	2,469 lb	n/a
Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	Not Published	1,805 lb (Cab tractor only)

Tire Size & Options	Not Published	R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	Not Applicable
R1 Agricultural - Rear	Not Published	Not Applicable
R3 Turf - Front	Not Published	18X8.50-10
R3 Turf - Rear	Not Published	26X12.0-12
R4 Industrial - Front	Not Published	18X8.50-10
R4 Industrial - Rear	Not Published	26X12.0-12

Quick Attach Loader System	Not Published	100LC: Quick Mount system (no tools)
Loader Model	L330	n/a
Loader Lift Height	94.3 in	72 in
Loader Lift Capacity (Full Height)	1214 lb	1,005 lb
Loader Breakout Force	1926 lb	2,078 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 25A Mechanical vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?

The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall 25A Mechanical.

Which has more PTO horsepower, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?

The Case IH Farmall 25A Mechanical leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?

The Case IH Farmall 25A Mechanical leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?

The Case IH Farmall 25A Mechanical leads on loader lift at 1,214 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A Mechanical or the New Holland Workmaster 25S?

The Case IH Farmall 25A Mechanical leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
