Case IH Farmall 35C vs LS Tractor XR3135

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor XR3135 leads 5 categories to 2 (1 tied). Machine pages: Case IH Farmall 35C and LS Tractor XR3135.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 35C	LS Tractor XR3135
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	28 hp	▲ 29.7 hp
Weight (lb)	3,175 lb	▲ 3,655 lb
Loader Lift (lb)	1,540 lb	▲ 2,185 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	▲ 105 in	94.4 in
Breakout Force (lbf)	2,640 lbf	▲ 3,612 lbf
Hydraulic Flow (gpm)	13.5 gpm	▲ 13.7 gpm
Travel Speed (mph)	14.8 mph	n/a

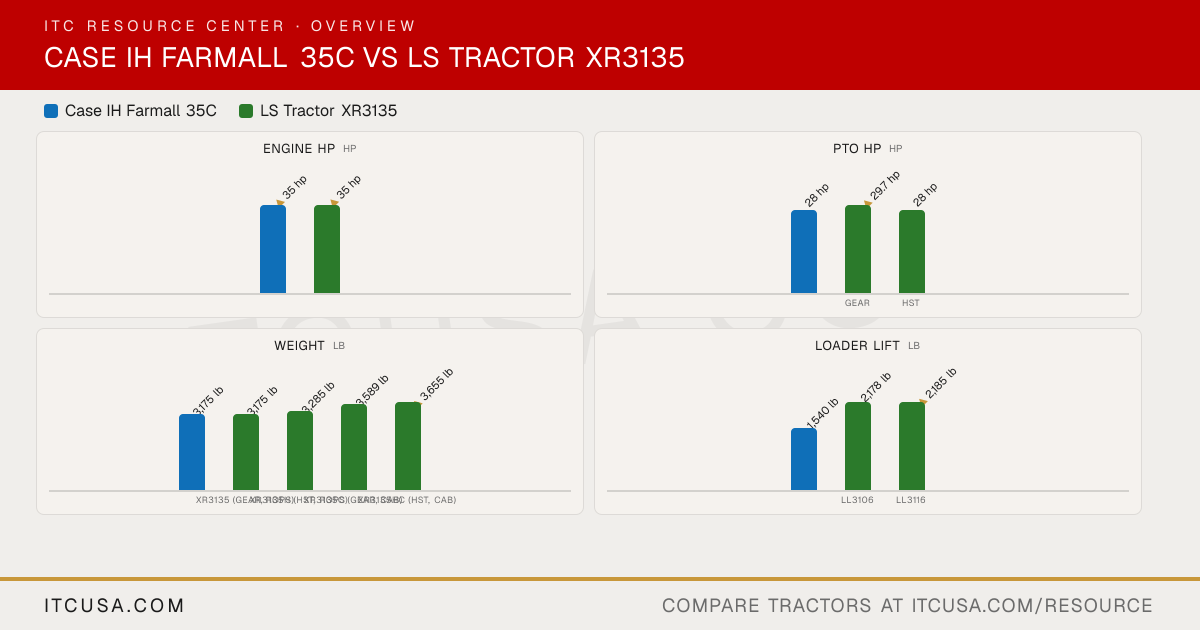

The headline numbers at a glance.

Case IH Farmall 35CLS Tractor XR3135

Engine HPhp

▲35 hp

PTO HPhp

28 hp

▲29.7 hp

28 hp

gearHST

Weightlb

3,175 lb

3,285 lb

3,589 lb

▲3,655 lb

XR3135 (gear, ROPS)XR3135H (HST, ROPS)XR3135C (gear, cab)XR3135HC (HST, cab)

Loader Liftlb

1,540 lb

2,178 lb

▲2,185 lb

LL3106LL3116

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35C	LS TractorXR3135


Engine Manufacturer	LS Mtron	LS
Engine Model	L3C19-T5	L3C19-T5
Engine Type	Diesel, 3-cylinder, turbocharged	Vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	115.9 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	28 hp	XR3135, XR3135C (gear): 29.7 hp; XR3135H, XR3135HC (HST): 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Replaceable dry element	Dry
Fuel System	Common rail direct injection	CRDI (common rail direct injection)
Alternator	70 A	70 A, 12 V

Pump Type	Not Published	Gear pump, engine driven
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.3 gpm	XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed)	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	Not Published	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	2 pairs
No. of Optional Remote Valves	2	Optional (2 or 6 quick couplers)

Fuel Tank Capacity	10.5 gal	XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal
Coolant Capacity	Not Published	1.9 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	7.9 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm (3-speed 540/750/1000 optional)
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,808 lb	1,433 lb
Lift Control Type	Mechanical draft control (MDC)	Position and draft control

Transmission Type	3-range hydrostatic (HST)	XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST
No. of Speeds	Infinitely variable, 3 ranges	XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Applicable	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.4 in	62 in
Wheelbase	66 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	93.5 in	94 in
Height to Top of ROPS (folded)	74.1 in	Not Published
Height to Top of Cab Model	Not Applicable	86.6 in
Overall Length	122.5 in	128.3 in (bumper to link)

Tractor Weight (Base)	3,175 lb	XR3135 (gear, ROPS): 3,175 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.5-14
R3 Turf - Rear	41x14.00-20	41x14-20
R4 Industrial - Front	25x8.50-14	25x8.5-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	Quick-Attach faceplate; mid-mount frame with fast loader connect and disconnect (L350A)	LL3106, LL3116: quick attach, skid steer compatible
Loader Model	L350A	LL3106; LL3116
Loader Lift Height	105 in	LL3106: 92.7 in; LL3116: 94.4 in
Loader Lift Capacity (Full Height)	1,540 lb at 31.5 in forward of pivot pin	LL3106: 2,178 lb; LL3116: 2,185 lb (at pivot pin)
Loader Breakout Force	2,640 lb	LL3106: 3,450 lb; LL3116: 3,612 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year, 72-month total)	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 35C vs LS Tractor XR3135: Quick Answers

Which has more horsepower, the Case IH Farmall 35C or the LS Tractor XR3135?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 35C or the LS Tractor XR3135?: The LS Tractor XR3135 leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the Case IH Farmall 35C.
Which is heavier, the Case IH Farmall 35C or the LS Tractor XR3135?: The LS Tractor XR3135 leads on weight at 3,655 lb lb, compared to 3,175 lb lb for the Case IH Farmall 35C.
Which has more loader lift capacity, the Case IH Farmall 35C or the LS Tractor XR3135?: The LS Tractor XR3135 leads on loader lift at 2,185 lb lb, compared to 1,540 lb lb for the Case IH Farmall 35C.
Which has more three-point hitch lift capacity, the Case IH Farmall 35C or the LS Tractor XR3135?: The Case IH Farmall 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the LS Tractor XR3135.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 35C	LS Tractor XR3135
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	28 hp	▲ 29.7 hp
Weight (lb)	3,175 lb	▲ 3,655 lb
Loader Lift (lb)	1,540 lb	▲ 2,185 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	▲ 105 in	94.4 in
Breakout Force (lbf)	2,640 lbf	▲ 3,612 lbf
Hydraulic Flow (gpm)	13.5 gpm	▲ 13.7 gpm
Travel Speed (mph)	14.8 mph	n/a

The headline numbers at a glance.

Case IH Farmall 35CLS Tractor XR3135

Engine HPhp

▲35 hp

PTO HPhp

28 hp

▲29.7 hp

28 hp

gearHST

Weightlb

3,175 lb

3,285 lb

3,589 lb

▲3,655 lb

XR3135 (gear, ROPS)XR3135H (HST, ROPS)XR3135C (gear, cab)XR3135HC (HST, cab)

Loader Liftlb

1,540 lb

2,178 lb

▲2,185 lb

LL3106LL3116

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35C	LS TractorXR3135


Engine Manufacturer	LS Mtron	LS
Engine Model	L3C19-T5	L3C19-T5
Engine Type	Diesel, 3-cylinder, turbocharged	Vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	115.9 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	28 hp	XR3135, XR3135C (gear): 29.7 hp; XR3135H, XR3135HC (HST): 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Replaceable dry element	Dry
Fuel System	Common rail direct injection	CRDI (common rail direct injection)
Alternator	70 A	70 A, 12 V

Pump Type	Not Published	Gear pump, engine driven
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.3 gpm	XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed)	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	Not Published	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	2 pairs
No. of Optional Remote Valves	2	Optional (2 or 6 quick couplers)

Fuel Tank Capacity	10.5 gal	XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal
Coolant Capacity	Not Published	1.9 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	7.9 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm (3-speed 540/750/1000 optional)
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,808 lb	1,433 lb
Lift Control Type	Mechanical draft control (MDC)	Position and draft control

Transmission Type	3-range hydrostatic (HST)	XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST
No. of Speeds	Infinitely variable, 3 ranges	XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Applicable	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.4 in	62 in
Wheelbase	66 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	93.5 in	94 in
Height to Top of ROPS (folded)	74.1 in	Not Published
Height to Top of Cab Model	Not Applicable	86.6 in
Overall Length	122.5 in	128.3 in (bumper to link)

Tractor Weight (Base)	3,175 lb	XR3135 (gear, ROPS): 3,175 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.5-14
R3 Turf - Rear	41x14.00-20	41x14-20
R4 Industrial - Front	25x8.50-14	25x8.5-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	Quick-Attach faceplate; mid-mount frame with fast loader connect and disconnect (L350A)	LL3106, LL3116: quick attach, skid steer compatible
Loader Model	L350A	LL3106; LL3116
Loader Lift Height	105 in	LL3106: 92.7 in; LL3116: 94.4 in
Loader Lift Capacity (Full Height)	1,540 lb at 31.5 in forward of pivot pin	LL3106: 2,178 lb; LL3116: 2,185 lb (at pivot pin)
Loader Breakout Force	2,640 lb	LL3106: 3,450 lb; LL3116: 3,612 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year, 72-month total)	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 35C vs LS Tractor XR3135: Quick Answers

Which has more horsepower, the Case IH Farmall 35C or the LS Tractor XR3135?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 35C or the LS Tractor XR3135?

The LS Tractor XR3135 leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the Case IH Farmall 35C.

Which is heavier, the Case IH Farmall 35C or the LS Tractor XR3135?

The LS Tractor XR3135 leads on weight at 3,655 lb lb, compared to 3,175 lb lb for the Case IH Farmall 35C.

Which has more loader lift capacity, the Case IH Farmall 35C or the LS Tractor XR3135?

The LS Tractor XR3135 leads on loader lift at 2,185 lb lb, compared to 1,540 lb lb for the Case IH Farmall 35C.

Which has more three-point hitch lift capacity, the Case IH Farmall 35C or the LS Tractor XR3135?

The Case IH Farmall 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the LS Tractor XR3135.
