Case IH Farmall 35C vs New Holland Workmaster 35

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Case IH Farmall 35C leads 4 categories to 2 (3 tied). Machine pages: Case IH Farmall 35C and New Holland Workmaster 35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 35C	New Holland Workmaster 35
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	28 hp	▲ 29.7 hp
Weight (lb)	▲ 3,175 lb	3,067 lb
Loader Lift (lb)	▲ 1,540 lb	1,500 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	▲ 105 in	91.5 in
Breakout Force (lbf)	2,640 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	13.5 gpm	13.5 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

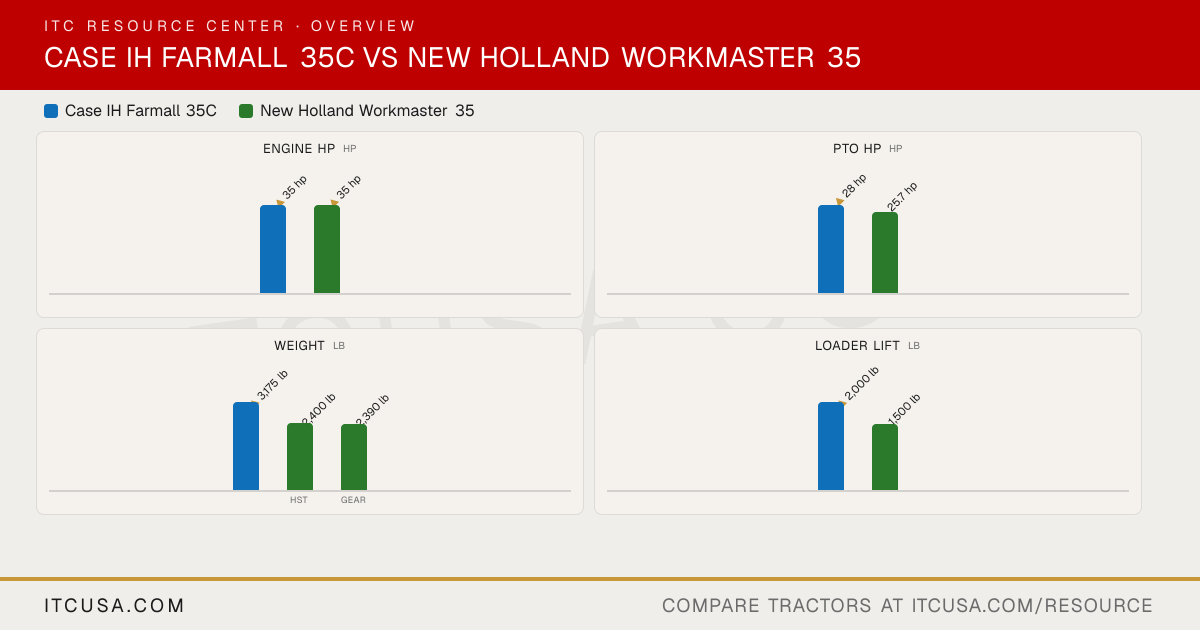

The headline numbers at a glance.

Case IH Farmall 35CNew Holland Workmaster 35

Engine HPhp

▲35 hp

PTO HPhp

28 hp

▲29.7 hp

28 hp

GearHST

Weightlb

▲3,175 lb

3,067 lb

Loader Liftlb

▲1,540 lb

1,500 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35C	New HollandWorkmaster 35


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T5	L3C19-T5
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	115.9 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	28 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Air Cleaner	Replaceable dry element	Dual element (primary and inner safety element)
Fuel System	Common rail direct injection	High pressure common rail, ECU-controlled timing
Alternator	70 A	70 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.3 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed)	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Not Published	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	2	1 or 2

Fuel Tank Capacity	10.5 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,808 lb	1,433 lb
Lift Control Type	Mechanical draft control (MDC)	Position control

Transmission Type	3-range hydrostatic (HST)	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	Infinitely variable, 3 ranges	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	14.8 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.63 mph; HST: 14.96 mph
Clutch	Not Applicable	Gear: 9.4 in single dry disc; HST: Not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Mechanical suspension seat, fore/aft adjustable, tilting
Front Axle Type	Mechanical Front Drive (MFD)	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.4 in	66.5 in
Wheelbase	66 in	67.5 in
Ground Clearance	Not Published	13 in
Min. Turn Radius without Brakes	Not Published	123 in (left turn); 124 in (right turn)
Height to Top of ROPS	93.5 in	87.7 in
Height to Top of ROPS (folded)	74.1 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	122.5 in	121 in

Tractor Weight (Base)	3,175 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	Quick-Attach faceplate; mid-mount frame with fast loader connect and disconnect (L350A)	140TL: tool-free quick-mount system; optional skid-steer quick-attach plates
Loader Model	L350A	140TL
Loader Lift Height	105 in	140TL: 91.5 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,540 lb at 31.5 in forward of pivot pin	140TL: 1,500 lb (at bucket pivot pin, max height)
Loader Breakout Force	2,640 lb	140TL: 2,700 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year, 72-month total)	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 35C vs New Holland Workmaster 35: Quick Answers

Which has more horsepower, the Case IH Farmall 35C or the New Holland Workmaster 35?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 35C or the New Holland Workmaster 35?: The New Holland Workmaster 35 leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the Case IH Farmall 35C.
Which is heavier, the Case IH Farmall 35C or the New Holland Workmaster 35?: The Case IH Farmall 35C leads on weight at 3,175 lb lb, compared to 3,067 lb lb for the New Holland Workmaster 35.
Which has more loader lift capacity, the Case IH Farmall 35C or the New Holland Workmaster 35?: The Case IH Farmall 35C leads on loader lift at 1,540 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 35.
Which has more three-point hitch lift capacity, the Case IH Farmall 35C or the New Holland Workmaster 35?: The Case IH Farmall 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 35.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 35C	New Holland Workmaster 35
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	28 hp	▲ 29.7 hp
Weight (lb)	▲ 3,175 lb	3,067 lb
Loader Lift (lb)	▲ 1,540 lb	1,500 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	▲ 105 in	91.5 in
Breakout Force (lbf)	2,640 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	13.5 gpm	13.5 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

The headline numbers at a glance.

Case IH Farmall 35CNew Holland Workmaster 35

Engine HPhp

▲35 hp

PTO HPhp

28 hp

▲29.7 hp

28 hp

GearHST

Weightlb

▲3,175 lb

3,067 lb

Loader Liftlb

▲1,540 lb

1,500 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35C	New HollandWorkmaster 35


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T5	L3C19-T5
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	115.9 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	28 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Air Cleaner	Replaceable dry element	Dual element (primary and inner safety element)
Fuel System	Common rail direct injection	High pressure common rail, ECU-controlled timing
Alternator	70 A	70 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.3 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed)	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Not Published	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	2	1 or 2

Fuel Tank Capacity	10.5 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	1,808 lb	1,433 lb
Lift Control Type	Mechanical draft control (MDC)	Position control

Transmission Type	3-range hydrostatic (HST)	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	Infinitely variable, 3 ranges	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	14.8 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.63 mph; HST: 14.96 mph
Clutch	Not Applicable	Gear: 9.4 in single dry disc; HST: Not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Mechanical suspension seat, fore/aft adjustable, tilting
Front Axle Type	Mechanical Front Drive (MFD)	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.4 in	66.5 in
Wheelbase	66 in	67.5 in
Ground Clearance	Not Published	13 in
Min. Turn Radius without Brakes	Not Published	123 in (left turn); 124 in (right turn)
Height to Top of ROPS	93.5 in	87.7 in
Height to Top of ROPS (folded)	74.1 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	122.5 in	121 in

Tractor Weight (Base)	3,175 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	Quick-Attach faceplate; mid-mount frame with fast loader connect and disconnect (L350A)	140TL: tool-free quick-mount system; optional skid-steer quick-attach plates
Loader Model	L350A	140TL
Loader Lift Height	105 in	140TL: 91.5 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,540 lb at 31.5 in forward of pivot pin	140TL: 1,500 lb (at bucket pivot pin, max height)
Loader Breakout Force	2,640 lb	140TL: 2,700 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year, 72-month total)	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 35C vs New Holland Workmaster 35: Quick Answers

Which has more horsepower, the Case IH Farmall 35C or the New Holland Workmaster 35?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 35C or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the Case IH Farmall 35C.

Which is heavier, the Case IH Farmall 35C or the New Holland Workmaster 35?

The Case IH Farmall 35C leads on weight at 3,175 lb lb, compared to 3,067 lb lb for the New Holland Workmaster 35.

Which has more loader lift capacity, the Case IH Farmall 35C or the New Holland Workmaster 35?

The Case IH Farmall 35C leads on loader lift at 1,540 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 35.

Which has more three-point hitch lift capacity, the Case IH Farmall 35C or the New Holland Workmaster 35?

The Case IH Farmall 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 35.
