Case IH Farmall 40A vs New Holland Boomer 40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Boomer 40 leads 4 categories to 0 (4 tied). Machine pages: Case IH Farmall 40A and New Holland Boomer 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 40A	New Holland Boomer 40
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	32 hp	32 hp
Weight (lb)	3,067 lb	n/a
Loader Lift (lb)	1,250 lb	▲ 1,822 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	98.4 in	▲ 104 in
Breakout Force (lbf)	1,913 lbf	▲ 2,444 lbf
Hydraulic Flow (gpm)	13.5 gpm	▲ 13.8 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

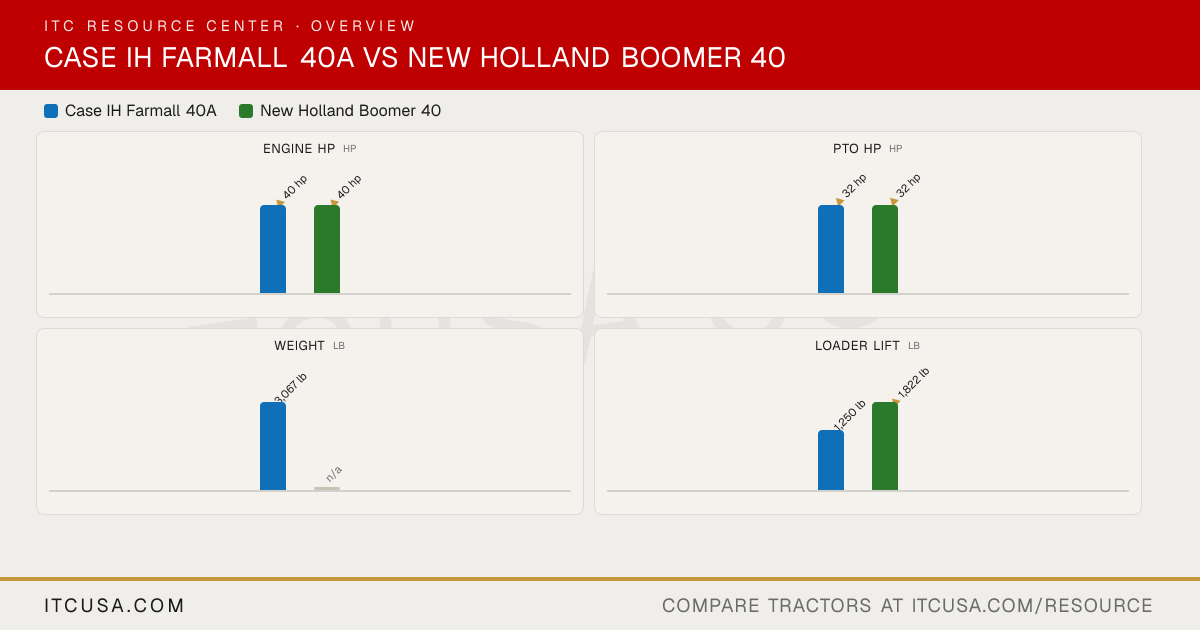

The headline numbers at a glance.

Case IH Farmall 40ANew Holland Boomer 40

Engine HPhp

▲40 hp

PTO HPhp

▲32 hp

Weightlb

3,067 lb

n/a

Loader Liftlb

1,250 lb

▲1,822 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40A	New HollandBoomer 40


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T4	LS Mtron L3C19-T
Engine Type	3-cylinder, turbocharged diesel, Tier 4 B/Final	Not Published
No. of Cylinders	3	3
Displacement	116 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	32 hp	32 hp
Engine Emissions Constraints	Tier 4	T4B Final
Cooling System Type	Pressurized liquid cooling with recirculating bypass	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	High pressure common rail	CRDI
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.3 gpm	HST: 5.6 gpm; Gear: 4.2 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed) (8.2 + 4.2, computed)	HST: 13.8 gpm; Gear: 12.4 gpm
Overall Hydraulic Pump Flow	Not Published	HST: 13.8 gpm; Gear: 12.4 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1 or 2

Fuel Tank Capacity	7.4 gal	ROPS: 10.5 gal; CAB: 12.4 gal
Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	Not Published
Front Axle Fluid Capacity	6.9 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent (wet clutch, switch-actuated)
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	1,808 lb	1808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1433 lb
Lift Control Type	Mechanical Draft Control (MDC)	Not Published

Transmission Type	3-range hydrostatic (optional)	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle
No. of Speeds	infinite, 3 ranges	HST: 3-range; Gear: 12F/12R
Max Travel Speed (Forward)	14.8 mph	HST: 14.8 mph; Gear: 14.2 mph
Max Travel Speed (Reverse)	14.96 mph	Not Published
Clutch	Dry clutch	Gear: Dry single disc; HST: Not Applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc, mechanical actuation	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	145.2 in	119 in
Overall Width	66.5 in	66.4 in
Wheelbase	67.2 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	123 in	Not Published
Height to Top of ROPS	87.6 in	97.1 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	94 in

Tractor Weight (Base)	3,067 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 agricultural, R3 turf, or R4 industrial (R4 standard)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7x14	7.0-14
R1 Agricultural - Rear	11.2x24	11.2-24
R3 Turf - Front	25x8.50-14	25X8.50-14
R3 Turf - Rear	41x14.00-20	41X14.00-20
R4 Industrial - Front	25x8.50-14	25X8.50-14
R4 Industrial - Rear	43x16.00-20	43X16.00X20; 43X16-20

Quick Attach Loader System	Not Published	250TLA: New Holland Quick Mount; optional skid steer quick attach
Loader Model	L340A	Not Published
Loader Lift Height	98.4 in	104 in
Loader Lift Capacity (Full Height)	1,250 lb	1822 lb
Loader Breakout Force	1913 lb	2444 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year Boomer Guard Limited Warranty (2-year full + 4-year powertrain)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 40A vs New Holland Boomer 40: Quick Answers

Which has more horsepower, the Case IH Farmall 40A or the New Holland Boomer 40?: They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 40A or the New Holland Boomer 40?: They are effectively tied: both machines are rated at 32 hp hp for pto hp.
Which has more loader lift capacity, the Case IH Farmall 40A or the New Holland Boomer 40?: The New Holland Boomer 40 leads on loader lift at 1,822 lb lb, compared to 1,250 lb lb for the Case IH Farmall 40A.
Which has more three-point hitch lift capacity, the Case IH Farmall 40A or the New Holland Boomer 40?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 40A	New Holland Boomer 40
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	32 hp	32 hp
Weight (lb)	3,067 lb	n/a
Loader Lift (lb)	1,250 lb	▲ 1,822 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	98.4 in	▲ 104 in
Breakout Force (lbf)	1,913 lbf	▲ 2,444 lbf
Hydraulic Flow (gpm)	13.5 gpm	▲ 13.8 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

The headline numbers at a glance.

Case IH Farmall 40ANew Holland Boomer 40

Engine HPhp

▲40 hp

PTO HPhp

▲32 hp

Weightlb

3,067 lb

n/a

Loader Liftlb

1,250 lb

▲1,822 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40A	New HollandBoomer 40


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T4	LS Mtron L3C19-T
Engine Type	3-cylinder, turbocharged diesel, Tier 4 B/Final	Not Published
No. of Cylinders	3	3
Displacement	116 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	32 hp	32 hp
Engine Emissions Constraints	Tier 4	T4B Final
Cooling System Type	Pressurized liquid cooling with recirculating bypass	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	High pressure common rail	CRDI
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.3 gpm	HST: 5.6 gpm; Gear: 4.2 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed) (8.2 + 4.2, computed)	HST: 13.8 gpm; Gear: 12.4 gpm
Overall Hydraulic Pump Flow	Not Published	HST: 13.8 gpm; Gear: 12.4 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1 or 2

Fuel Tank Capacity	7.4 gal	ROPS: 10.5 gal; CAB: 12.4 gal
Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	Not Published
Front Axle Fluid Capacity	6.9 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent (wet clutch, switch-actuated)
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	1,808 lb	1808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1433 lb
Lift Control Type	Mechanical Draft Control (MDC)	Not Published

Transmission Type	3-range hydrostatic (optional)	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle
No. of Speeds	infinite, 3 ranges	HST: 3-range; Gear: 12F/12R
Max Travel Speed (Forward)	14.8 mph	HST: 14.8 mph; Gear: 14.2 mph
Max Travel Speed (Reverse)	14.96 mph	Not Published
Clutch	Dry clutch	Gear: Dry single disc; HST: Not Applicable
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc, mechanical actuation	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	145.2 in	119 in
Overall Width	66.5 in	66.4 in
Wheelbase	67.2 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	123 in	Not Published
Height to Top of ROPS	87.6 in	97.1 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	94 in

Tractor Weight (Base)	3,067 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 agricultural, R3 turf, or R4 industrial (R4 standard)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7x14	7.0-14
R1 Agricultural - Rear	11.2x24	11.2-24
R3 Turf - Front	25x8.50-14	25X8.50-14
R3 Turf - Rear	41x14.00-20	41X14.00-20
R4 Industrial - Front	25x8.50-14	25X8.50-14
R4 Industrial - Rear	43x16.00-20	43X16.00X20; 43X16-20

Quick Attach Loader System	Not Published	250TLA: New Holland Quick Mount; optional skid steer quick attach
Loader Model	L340A	Not Published
Loader Lift Height	98.4 in	104 in
Loader Lift Capacity (Full Height)	1,250 lb	1822 lb
Loader Breakout Force	1913 lb	2444 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year Boomer Guard Limited Warranty (2-year full + 4-year powertrain)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 40A vs New Holland Boomer 40: Quick Answers

Which has more horsepower, the Case IH Farmall 40A or the New Holland Boomer 40?

They are effectively tied: both machines are rated at 40 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 40A or the New Holland Boomer 40?

They are effectively tied: both machines are rated at 32 hp hp for pto hp.

Which has more loader lift capacity, the Case IH Farmall 40A or the New Holland Boomer 40?

The New Holland Boomer 40 leads on loader lift at 1,822 lb lb, compared to 1,250 lb lb for the Case IH Farmall 40A.

Which has more three-point hitch lift capacity, the Case IH Farmall 40A or the New Holland Boomer 40?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
