Case IH Farmall 40C Gear vs New Holland Workmaster 40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Case IH Farmall 40C Gear leads 4 categories to 3 (2 tied). Machine pages: Case IH Farmall 40C Gear and New Holland Workmaster 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 40C Gear	New Holland Workmaster 40
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	▲ 34 hp	29 hp
Weight (lb)	▲ 3,803 lb	2,400 lb
Loader Lift (lb)	▲ 2,000 lb	1,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 105 in	91.5 in
Breakout Force (lbf)	2,640 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 13 gpm
Travel Speed (mph)	14.2 mph	▲ 15 mph

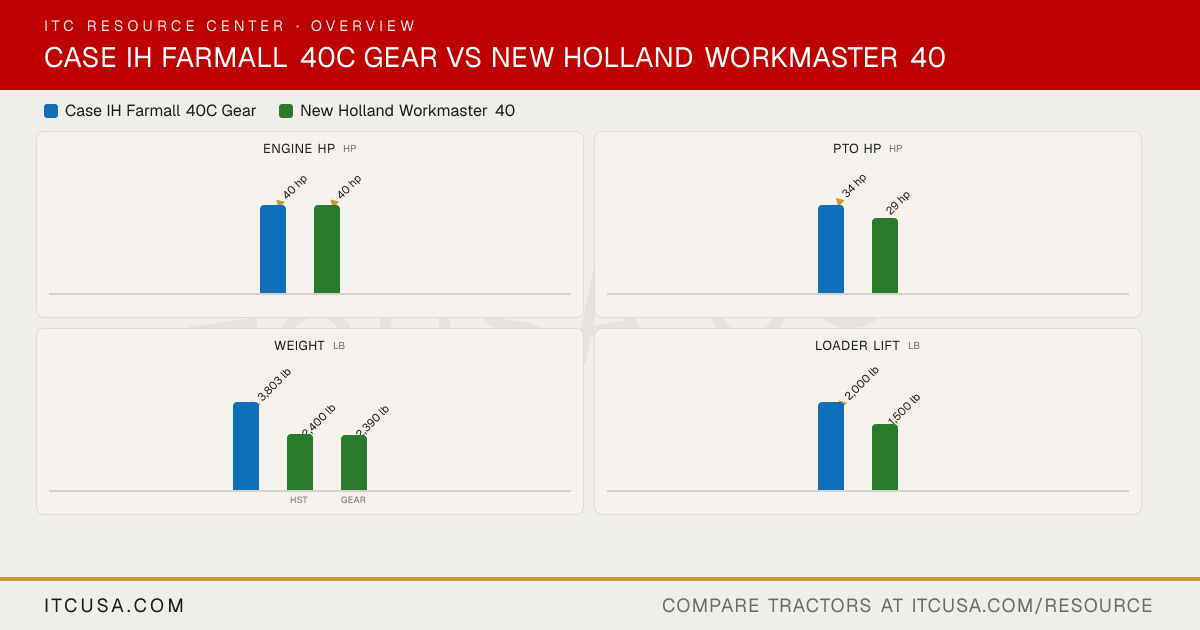

The headline numbers at a glance.

Case IH Farmall 40C GearNew Holland Workmaster 40

Engine HPhp

▲40 hp

PTO HPhp

▲34 hp

29 hp

Weightlb

▲3,803 lb

2,400 lb

2,390 lb

HSTGear

Loader Liftlb

▲2,000 lb

1,500 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40C Gear	New HollandWorkmaster 40


Engine Manufacturer	Not Published	LS Mtron
Engine Model	Not Published	LS Mtron L3C19-T
Engine Type	Diesel, 3-cylinder, turbocharged	Turbocharged diesel
No. of Cylinders	3	3
Displacement	116 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	34 hp	29 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Air Cleaner	Replaceable dry element	Dual element dry air cleaner
Fuel System	Common rail direct injection	High pressure common rail (ECU controlled timing)
Alternator	70 A	70 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.2 gpm	4.8 gpm
Total Hydraulic Flow	Not Published	13.0 gpm
Overall Hydraulic Pump Flow	Not Published	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	0
No. of Optional Remote Valves	Not Published	1 or 2

Fuel Tank Capacity	12.4 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm (6-spline)
Mid-PTO Availability	Optional, 2000 rpm	Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Mechanical draft control (MDC)	Position control

Transmission Type	12 x 12 mechanical shuttle with synchro shift	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
No. of Speeds	12 forward, 12 reverse	HST: Infinite (3-range); Gear: 12F/12R
Max Travel Speed (Forward)	14.2 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	Not Published	HST: 14.96 mph; Gear: 13.63 mph
Clutch	dry clutch	HST: Not Applicable; Gear: Dry disc, 9.4 in
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Deluxe cloth seat with adjustable suspension	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	128.1 in	134 in
Overall Width	66.4 in	54 in
Wheelbase	66 in	69 in
Ground Clearance	Not Published	13 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	89 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.3 in	Not Published

Tractor Weight (Base)	3,803 lb	Not Published
Weight with ROPS and Loader	Not Published	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	7.0-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	Not Published	25X8.50-14
R3 Turf - Rear	Not Published	41X14.00-20
R4 Industrial - Front	Not Published	25X8.50-14
R4 Industrial - Rear	Not Published	43X16-20

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L350A)	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Model	L350A	Not Published
Loader Lift Height	105 in	91.5 in (to bucket pivot pin)
Loader Lift Capacity (Full Height)	2,000 lb	1,500 lb (bucket pivot pin, max height)
Loader Breakout Force	2,640 lbf	2,700 lb (bucket pivot pin)

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 40C Gear vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?: They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?: The Case IH Farmall 40C Gear leads on pto hp at 34 hp hp, compared to 29 hp hp for the New Holland Workmaster 40.
Which is heavier, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?: The Case IH Farmall 40C Gear leads on weight at 3,803 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 40.
Which has more loader lift capacity, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?: The Case IH Farmall 40C Gear leads on loader lift at 2,000 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.
Which has more three-point hitch lift capacity, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 40C Gear	New Holland Workmaster 40
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	▲ 34 hp	29 hp
Weight (lb)	▲ 3,803 lb	2,400 lb
Loader Lift (lb)	▲ 2,000 lb	1,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 105 in	91.5 in
Breakout Force (lbf)	2,640 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 13 gpm
Travel Speed (mph)	14.2 mph	▲ 15 mph

The headline numbers at a glance.

Case IH Farmall 40C GearNew Holland Workmaster 40

Engine HPhp

▲40 hp

PTO HPhp

▲34 hp

29 hp

Weightlb

▲3,803 lb

2,400 lb

2,390 lb

HSTGear

Loader Liftlb

▲2,000 lb

1,500 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40C Gear	New HollandWorkmaster 40


Engine Manufacturer	Not Published	LS Mtron
Engine Model	Not Published	LS Mtron L3C19-T
Engine Type	Diesel, 3-cylinder, turbocharged	Turbocharged diesel
No. of Cylinders	3	3
Displacement	116 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	34 hp	29 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Air Cleaner	Replaceable dry element	Dual element dry air cleaner
Fuel System	Common rail direct injection	High pressure common rail (ECU controlled timing)
Alternator	70 A	70 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.2 gpm	4.8 gpm
Total Hydraulic Flow	Not Published	13.0 gpm
Overall Hydraulic Pump Flow	Not Published	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	0
No. of Optional Remote Valves	Not Published	1 or 2

Fuel Tank Capacity	12.4 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm (6-spline)
Mid-PTO Availability	Optional, 2000 rpm	Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Mechanical draft control (MDC)	Position control

Transmission Type	12 x 12 mechanical shuttle with synchro shift	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
No. of Speeds	12 forward, 12 reverse	HST: Infinite (3-range); Gear: 12F/12R
Max Travel Speed (Forward)	14.2 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	Not Published	HST: 14.96 mph; Gear: 13.63 mph
Clutch	dry clutch	HST: Not Applicable; Gear: Dry disc, 9.4 in
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Deluxe cloth seat with adjustable suspension	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	128.1 in	134 in
Overall Width	66.4 in	54 in
Wheelbase	66 in	69 in
Ground Clearance	Not Published	13 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	89 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.3 in	Not Published

Tractor Weight (Base)	3,803 lb	Not Published
Weight with ROPS and Loader	Not Published	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	7.0-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	Not Published	25X8.50-14
R3 Turf - Rear	Not Published	41X14.00-20
R4 Industrial - Front	Not Published	25X8.50-14
R4 Industrial - Rear	Not Published	43X16-20

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L350A)	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Model	L350A	Not Published
Loader Lift Height	105 in	91.5 in (to bucket pivot pin)
Loader Lift Capacity (Full Height)	2,000 lb	1,500 lb (bucket pivot pin, max height)
Loader Breakout Force	2,640 lbf	2,700 lb (bucket pivot pin)

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 40C Gear vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?

They are effectively tied: both machines are rated at 40 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?

The Case IH Farmall 40C Gear leads on pto hp at 34 hp hp, compared to 29 hp hp for the New Holland Workmaster 40.

Which is heavier, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?

The Case IH Farmall 40C Gear leads on weight at 3,803 lb lb, compared to 2,400 lb lb for the New Holland Workmaster 40.

Which has more loader lift capacity, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?

The Case IH Farmall 40C Gear leads on loader lift at 2,000 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.

Which has more three-point hitch lift capacity, the Case IH Farmall 40C Gear or the New Holland Workmaster 40?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
