John Deere 2032R vs New Holland TC30

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland TC30 leads 5 categories to 3. Machine pages: John Deere 2032R and New Holland TC30.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 2032R	New Holland TC30
Engine HP (hp)	▲ 31.2 hp	30 hp
PTO HP (hp)	24.2 hp	▲ 25.5 hp
Weight (lb)	1,973 lb	▲ 2,193 lb
Loader Lift (lb)	▲ 1,120 lb	875 lb
3-Pt Lift (24 in) (lb)	1,356 lb	▲ 1,635 lb
Lift Height (in)	85 in	▲ 100.5 in
Breakout Force (lbf)	▲ 2,363 lbf	1,602 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 10 gpm
Travel Speed (mph)	n/a	14.5 mph

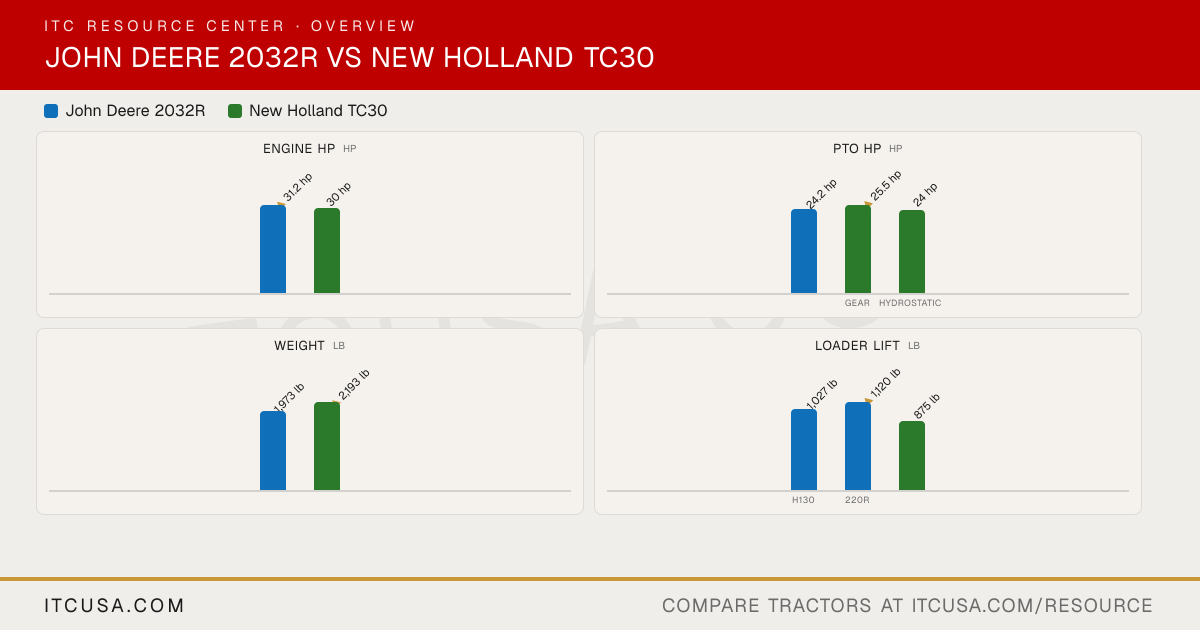

The headline numbers at a glance.

John Deere 2032RNew Holland TC30

Engine HPhp

▲31.2 hp

30 hp

PTO HPhp

24.2 hp

▲25.5 hp

24 hp

GearHydrostatic

Weightlb

1,973 lb

▲2,193 lb

Loader Liftlb

1,027 lb

▲1,120 lb

875 lb

H130220R

3-Pt Lift (24 in)lb

1,356 lb

▲1,635 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere2032R	New HollandTC30


Engine Manufacturer	Yanmar	Shibaura
Engine Model	3TNV88C-NJT2	N843
Engine Type	Diesel	3-cylinder naturally aspirated diesel
No. of Cylinders	3	3
Displacement	100.2 in³	91.3 in³
Rated Engine Speed	2500 rpm	2600 rpm
Engine Power (Gross)	31.2 hp	30 hp
PTO Power	24.2 hp	Gear: 25.5 hp; Hydrostatic: 24 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dual element	Not Published
Fuel System	Direct injection	Not Published
Alternator	85 A, 12 V	Not Published

Pump Type	Tandem gear	Gear
Implement Flow	5.3 gpm	6.2 gpm
Steering Flow	4 gpm	3.8 gpm
Total Hydraulic Flow	9.3 gpm	10.0 gpm (6.2 + 3.8, computed)
Overall Hydraulic Pump Flow	9.3 gpm	10.0 gpm (6.2 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3	Not Published

Fuel Tank Capacity	8.5 gal	7.1 gal
Coolant Capacity	4.2 qt	Not Published
Crankcase Capacity	4.7 qt	Not Published
Transmission / Hydraulic System Capacity	4.6 gal	Not Published
Front Axle Fluid Capacity	4.1 qt	Not Published

PTO Type	Independent	Live (FWD); transmission-driven (2WD gear)
PTO Rear	540 rpm	Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm
Mid-PTO Availability	2100 rpm	Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1433 lb	Not Published
Hitch Lift Capacity (at 24”)	1356 lb	1,635 lb
Lift Control Type	Position Control	Not Published

Transmission Type	Hydrostatic	Gear: 9x3; Hydrostatic: 3-range (FWD only)
No. of Speeds	Infinite (2-range)	Gear: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	Not Published	Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Mechanical rear differential lock (heel pedal)

Frame Type	Open station with foldable ROPS	Not Published
Steering	Power	Power steering
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	Marine-grade seat	Padded contoured seat on an inclined track
Front Axle Type	Not Published	FWD (standard); 2WD (optional)
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	562 lb	Not Published

Overall Length with 3-Point Hitch	115.2 in	2WD, ag tires: 108.9 in; FWD, R4 tires: 111.4 in (both with 3-point hitch raised)
Overall Width	55.6 in	54.3 in (minimum, ag tires); 62 in (R4 tires)
Wheelbase	65.2 in	63.0 in
Ground Clearance	13 in	Not Published
Min. Turn Radius without Brakes	98.4 in	Not Published
Height to Top of ROPS	89.7 in	82.3 in (R4 tires)
Height to Top of ROPS (folded)	67.5 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1973 lb	2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial	R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5
R1 Agricultural - Front	7.00-12	Not Published
R1 Agricultural - Rear	12.4-16	11.2x24
R3 Turf - Front	23X8.50-14	24x8.50-14
R3 Turf - Rear	14-17.5	13.6x16
R4 Industrial - Front	23x8.50-14	25x8.50-14
R4 Industrial - Rear	14-17.5	15x19.5

Quick Attach Loader System	H130 Loader	Not Published
Loader Model	H130 or 220R	7308
Loader Lift Height	H130: 78.5 in; 220R: 85 in (at pivot pin)	7308: 100.5 in
Loader Lift Capacity (Full Height)	H130: 1,027 lb; 220R: 1,120 lb (at pivot pin, full height)	7308: 875 lb
Loader Breakout Force	H130: 2,363 lbf; 220R: 1,949 lbf (at pivot pin)	7308: 1,602 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Not Published

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 2032R vs New Holland TC30: Quick Answers

Which has more horsepower, the John Deere 2032R or the New Holland TC30?: The John Deere 2032R leads on engine hp at 31.2 hp hp, compared to 30 hp hp for the New Holland TC30.
Which has more PTO horsepower, the John Deere 2032R or the New Holland TC30?: The New Holland TC30 leads on pto hp at 25.5 hp hp, compared to 24.2 hp hp for the John Deere 2032R.
Which is heavier, the John Deere 2032R or the New Holland TC30?: The New Holland TC30 leads on weight at 2,193 lb lb, compared to 1,973 lb lb for the John Deere 2032R.
Which has more loader lift capacity, the John Deere 2032R or the New Holland TC30?: The John Deere 2032R leads on loader lift at 1,120 lb lb, compared to 875 lb lb for the New Holland TC30.
Which has more three-point hitch lift capacity, the John Deere 2032R or the New Holland TC30?: The New Holland TC30 leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 1,356 lb lb for the John Deere 2032R.

More Head-to-Heads

Category Verdict

Spec	John Deere 2032R	New Holland TC30
Engine HP (hp)	▲ 31.2 hp	30 hp
PTO HP (hp)	24.2 hp	▲ 25.5 hp
Weight (lb)	1,973 lb	▲ 2,193 lb
Loader Lift (lb)	▲ 1,120 lb	875 lb
3-Pt Lift (24 in) (lb)	1,356 lb	▲ 1,635 lb
Lift Height (in)	85 in	▲ 100.5 in
Breakout Force (lbf)	▲ 2,363 lbf	1,602 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 10 gpm
Travel Speed (mph)	n/a	14.5 mph

The headline numbers at a glance.

John Deere 2032RNew Holland TC30

Engine HPhp

▲31.2 hp

30 hp

PTO HPhp

24.2 hp

▲25.5 hp

24 hp

GearHydrostatic

Weightlb

1,973 lb

▲2,193 lb

Loader Liftlb

1,027 lb

▲1,120 lb

875 lb

H130220R

3-Pt Lift (24 in)lb

1,356 lb

▲1,635 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere2032R	New HollandTC30


Engine Manufacturer	Yanmar	Shibaura
Engine Model	3TNV88C-NJT2	N843
Engine Type	Diesel	3-cylinder naturally aspirated diesel
No. of Cylinders	3	3
Displacement	100.2 in³	91.3 in³
Rated Engine Speed	2500 rpm	2600 rpm
Engine Power (Gross)	31.2 hp	30 hp
PTO Power	24.2 hp	Gear: 25.5 hp; Hydrostatic: 24 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dual element	Not Published
Fuel System	Direct injection	Not Published
Alternator	85 A, 12 V	Not Published

Pump Type	Tandem gear	Gear
Implement Flow	5.3 gpm	6.2 gpm
Steering Flow	4 gpm	3.8 gpm
Total Hydraulic Flow	9.3 gpm	10.0 gpm (6.2 + 3.8, computed)
Overall Hydraulic Pump Flow	9.3 gpm	10.0 gpm (6.2 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3	Not Published

Fuel Tank Capacity	8.5 gal	7.1 gal
Coolant Capacity	4.2 qt	Not Published
Crankcase Capacity	4.7 qt	Not Published
Transmission / Hydraulic System Capacity	4.6 gal	Not Published
Front Axle Fluid Capacity	4.1 qt	Not Published

PTO Type	Independent	Live (FWD); transmission-driven (2WD gear)
PTO Rear	540 rpm	Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm
Mid-PTO Availability	2100 rpm	Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1433 lb	Not Published
Hitch Lift Capacity (at 24”)	1356 lb	1,635 lb
Lift Control Type	Position Control	Not Published

Transmission Type	Hydrostatic	Gear: 9x3; Hydrostatic: 3-range (FWD only)
No. of Speeds	Infinite (2-range)	Gear: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	Not Published	Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Mechanical rear differential lock (heel pedal)

Frame Type	Open station with foldable ROPS	Not Published
Steering	Power	Power steering
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	Marine-grade seat	Padded contoured seat on an inclined track
Front Axle Type	Not Published	FWD (standard); 2WD (optional)
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	562 lb	Not Published

Overall Length with 3-Point Hitch	115.2 in	2WD, ag tires: 108.9 in; FWD, R4 tires: 111.4 in (both with 3-point hitch raised)
Overall Width	55.6 in	54.3 in (minimum, ag tires); 62 in (R4 tires)
Wheelbase	65.2 in	63.0 in
Ground Clearance	13 in	Not Published
Min. Turn Radius without Brakes	98.4 in	Not Published
Height to Top of ROPS	89.7 in	82.3 in (R4 tires)
Height to Top of ROPS (folded)	67.5 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1973 lb	2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial	R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5
R1 Agricultural - Front	7.00-12	Not Published
R1 Agricultural - Rear	12.4-16	11.2x24
R3 Turf - Front	23X8.50-14	24x8.50-14
R3 Turf - Rear	14-17.5	13.6x16
R4 Industrial - Front	23x8.50-14	25x8.50-14
R4 Industrial - Rear	14-17.5	15x19.5

Quick Attach Loader System	H130 Loader	Not Published
Loader Model	H130 or 220R	7308
Loader Lift Height	H130: 78.5 in; 220R: 85 in (at pivot pin)	7308: 100.5 in
Loader Lift Capacity (Full Height)	H130: 1,027 lb; 220R: 1,120 lb (at pivot pin, full height)	7308: 875 lb
Loader Breakout Force	H130: 2,363 lbf; 220R: 1,949 lbf (at pivot pin)	7308: 1,602 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Not Published

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 2032R vs New Holland TC30: Quick Answers

Which has more horsepower, the John Deere 2032R or the New Holland TC30?

The John Deere 2032R leads on engine hp at 31.2 hp hp, compared to 30 hp hp for the New Holland TC30.

Which has more PTO horsepower, the John Deere 2032R or the New Holland TC30?

The New Holland TC30 leads on pto hp at 25.5 hp hp, compared to 24.2 hp hp for the John Deere 2032R.

Which is heavier, the John Deere 2032R or the New Holland TC30?

The New Holland TC30 leads on weight at 2,193 lb lb, compared to 1,973 lb lb for the John Deere 2032R.

Which has more loader lift capacity, the John Deere 2032R or the New Holland TC30?

The John Deere 2032R leads on loader lift at 1,120 lb lb, compared to 875 lb lb for the New Holland TC30.

Which has more three-point hitch lift capacity, the John Deere 2032R or the New Holland TC30?

The New Holland TC30 leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 1,356 lb lb for the John Deere 2032R.
