John Deere 3025D vs New Holland Workmaster 25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 25 leads 5 categories to 3 (1 tied). Machine pages: John Deere 3025D and New Holland Workmaster 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3025D	New Holland Workmaster 25
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 20.7 hp	19.2 hp
Weight (lb)	▲ 2,987 lb	2,469 lb
Loader Lift (lb)	1,186 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	▲ 2,081.2 lb	1,433 lb
Lift Height (in)	84 in	▲ 94.3 in
Breakout Force (lbf)	1,704 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	8.9 gpm	▲ 12.5 gpm
Travel Speed (mph)	11.1 mph	▲ 14.3 mph

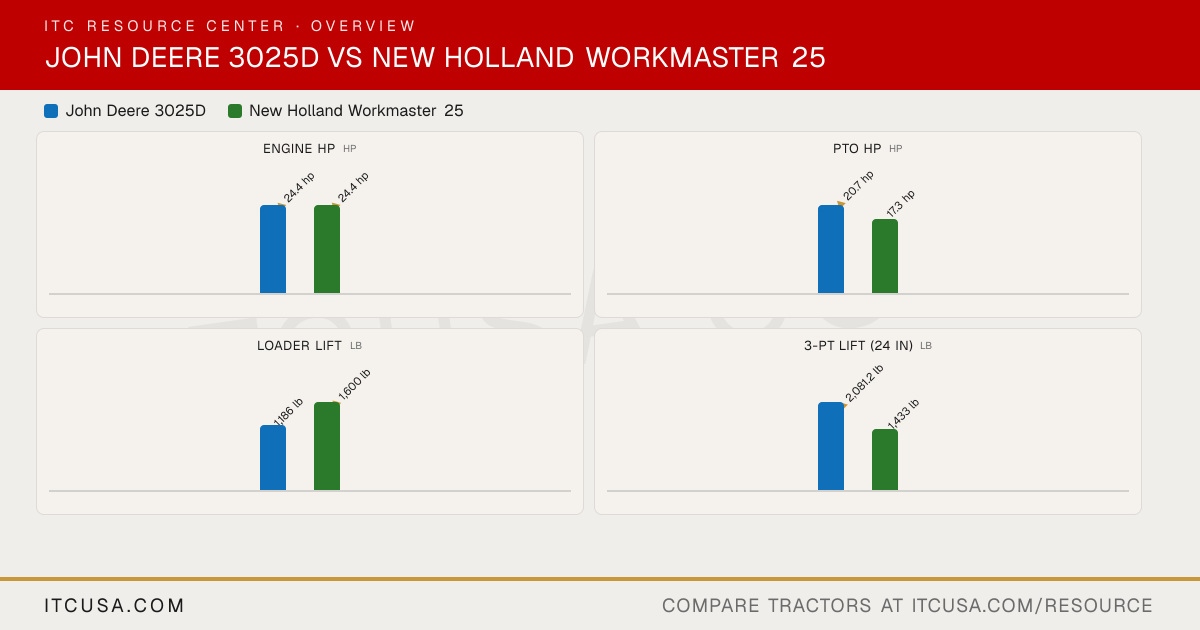

The headline numbers at a glance.

John Deere 3025DNew Holland Workmaster 25

Engine HPhp

▲24.4 hp

PTO HPhp

▲20.7 hp

19.2 hp

17.1 hp

GearHST

Weightlb

▲2,987 lb

2,434 lb

2,469 lb

GearHST

Loader Liftlb

1,186 lb

▲1,600 lb

3-Pt Lift (24 in)lb

▲2,081.2 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025D	New HollandWorkmaster 25


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV88F-EPJT	S3L2-W461GT
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	3-cylinder, naturally aspirated, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	100.1 in³	80.4 in³
Rated Engine Speed	2400 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	20.7 hp	Gear: 19.2 hp; HST: 17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Pressurized liquid with recirculating bypass
Air Cleaner	Dual element	Dual element dry air cleaner (outer and inner element)
Fuel System	Direct injection	In-line injection pump
Alternator	55 A, 12 V	50 A, 12 V

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Mechanical
Implement Flow	4.8 gpm	7.9 gpm
Steering Flow	3.6 gpm	4.6 gpm
Total Hydraulic Flow	Not Published	12.5 gpm
Overall Hydraulic Pump Flow	8.9 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to two (optional)	1 or 2

Fuel Tank Capacity	10.0 gal	7.4 gal
Coolant Capacity	1.2 gal	1.3 gal
Crankcase Capacity	1.1 gal	4.4 qt
Transmission / Hydraulic System Capacity	9.2 gal	8.5 gal
Front Axle Fluid Capacity	1.0 gal	6.9 qt

PTO Type	Not Published	Independent, electro-hydraulic engagement
PTO Rear	540 rpm at 2400 rpm engine (rated)	540 rpm
Mid-PTO Availability	Not Published	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	2,081.2 lb @ 24 in behind link arms	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	8F/8R	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	11.1 mph	HST: 14.33 mph; Gear: 13.78 mph
Max Travel Speed (Reverse)	11.6 mph	Gear: 13.10 mph; HST: 10.79 mph
Clutch	Not Published	Gear: 9.4 in disc; HST: Not applicable
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	MFWD (4WD)	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1102 lb	Not Published

Overall Length with 3-Point Hitch	111.2 in	117.2 in
Overall Width	57.3 in	54.1 in
Wheelbase	62.6 in	65.9 in
Ground Clearance	13.0 in	13 in
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	120 in (left turn); 129.8 in (right turn)
Height to Top of ROPS	Not Published	88.2 in
Height to Top of ROPS (folded)	Not Published	68.2 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2987 lb	Gear: 2,434 lb; HST: 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15	25x8.50-14
R3 Turf - Rear	41X14-20	41x14.00-20
R4 Industrial - Front	25X8.50-14	25x8.50-14
R4 Industrial - Rear	15.00-19.5	43x16-20

Quick Attach Loader System	Quick-change attachment carrier	200LC: Quick Mount system, no tools needed; optional skid steer quick attach plates
Loader Model	D160	200LC
Loader Lift Height	84.0 in	200LC: 94.3 in
Loader Lift Capacity (Full Height)	1,186 lb	200LC: 1,600 lb
Loader Breakout Force	1,704 lb	200LC: 2,637 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Boomer Guard6 limited warranty: 2 years or 750 hours full coverage plus powertrain coverage to 6 years or 1,500 hours total

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 3025D vs New Holland Workmaster 25: Quick Answers

Which has more horsepower, the John Deere 3025D or the New Holland Workmaster 25?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the John Deere 3025D or the New Holland Workmaster 25?: The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 19.2 hp hp for the New Holland Workmaster 25.
Which is heavier, the John Deere 3025D or the New Holland Workmaster 25?: The John Deere 3025D leads on weight at 2,987 lb lb, compared to 2,469 lb lb for the New Holland Workmaster 25.
Which has more loader lift capacity, the John Deere 3025D or the New Holland Workmaster 25?: The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 1,186 lb lb for the John Deere 3025D.
Which has more three-point hitch lift capacity, the John Deere 3025D or the New Holland Workmaster 25?: The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 25.

More Head-to-Heads

Category Verdict

Spec	John Deere 3025D	New Holland Workmaster 25
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 20.7 hp	19.2 hp
Weight (lb)	▲ 2,987 lb	2,469 lb
Loader Lift (lb)	1,186 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	▲ 2,081.2 lb	1,433 lb
Lift Height (in)	84 in	▲ 94.3 in
Breakout Force (lbf)	1,704 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	8.9 gpm	▲ 12.5 gpm
Travel Speed (mph)	11.1 mph	▲ 14.3 mph

The headline numbers at a glance.

John Deere 3025DNew Holland Workmaster 25

Engine HPhp

▲24.4 hp

PTO HPhp

▲20.7 hp

19.2 hp

17.1 hp

GearHST

Weightlb

▲2,987 lb

2,434 lb

2,469 lb

GearHST

Loader Liftlb

1,186 lb

▲1,600 lb

3-Pt Lift (24 in)lb

▲2,081.2 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025D	New HollandWorkmaster 25


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV88F-EPJT	S3L2-W461GT
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	3-cylinder, naturally aspirated, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	100.1 in³	80.4 in³
Rated Engine Speed	2400 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	20.7 hp	Gear: 19.2 hp; HST: 17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Pressurized liquid with recirculating bypass
Air Cleaner	Dual element	Dual element dry air cleaner (outer and inner element)
Fuel System	Direct injection	In-line injection pump
Alternator	55 A, 12 V	50 A, 12 V

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Mechanical
Implement Flow	4.8 gpm	7.9 gpm
Steering Flow	3.6 gpm	4.6 gpm
Total Hydraulic Flow	Not Published	12.5 gpm
Overall Hydraulic Pump Flow	8.9 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to two (optional)	1 or 2

Fuel Tank Capacity	10.0 gal	7.4 gal
Coolant Capacity	1.2 gal	1.3 gal
Crankcase Capacity	1.1 gal	4.4 qt
Transmission / Hydraulic System Capacity	9.2 gal	8.5 gal
Front Axle Fluid Capacity	1.0 gal	6.9 qt

PTO Type	Not Published	Independent, electro-hydraulic engagement
PTO Rear	540 rpm at 2400 rpm engine (rated)	540 rpm
Mid-PTO Availability	Not Published	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,808 lb
Hitch Lift Capacity (at 24”)	2,081.2 lb @ 24 in behind link arms	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	8F/8R	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	11.1 mph	HST: 14.33 mph; Gear: 13.78 mph
Max Travel Speed (Reverse)	11.6 mph	Gear: 13.10 mph; HST: 10.79 mph
Clutch	Not Published	Gear: 9.4 in disc; HST: Not applicable
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	MFWD (4WD)	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1102 lb	Not Published

Overall Length with 3-Point Hitch	111.2 in	117.2 in
Overall Width	57.3 in	54.1 in
Wheelbase	62.6 in	65.9 in
Ground Clearance	13.0 in	13 in
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	120 in (left turn); 129.8 in (right turn)
Height to Top of ROPS	Not Published	88.2 in
Height to Top of ROPS (folded)	Not Published	68.2 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2987 lb	Gear: 2,434 lb; HST: 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15	25x8.50-14
R3 Turf - Rear	41X14-20	41x14.00-20
R4 Industrial - Front	25X8.50-14	25x8.50-14
R4 Industrial - Rear	15.00-19.5	43x16-20

Quick Attach Loader System	Quick-change attachment carrier	200LC: Quick Mount system, no tools needed; optional skid steer quick attach plates
Loader Model	D160	200LC
Loader Lift Height	84.0 in	200LC: 94.3 in
Loader Lift Capacity (Full Height)	1,186 lb	200LC: 1,600 lb
Loader Breakout Force	1,704 lb	200LC: 2,637 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Boomer Guard6 limited warranty: 2 years or 750 hours full coverage plus powertrain coverage to 6 years or 1,500 hours total

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 3025D vs New Holland Workmaster 25: Quick Answers

Which has more horsepower, the John Deere 3025D or the New Holland Workmaster 25?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the John Deere 3025D or the New Holland Workmaster 25?

The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 19.2 hp hp for the New Holland Workmaster 25.

Which is heavier, the John Deere 3025D or the New Holland Workmaster 25?

The John Deere 3025D leads on weight at 2,987 lb lb, compared to 2,469 lb lb for the New Holland Workmaster 25.

Which has more loader lift capacity, the John Deere 3025D or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 1,186 lb lb for the John Deere 3025D.

Which has more three-point hitch lift capacity, the John Deere 3025D or the New Holland Workmaster 25?

The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 25.
