Which has more horsepower, the Bad Boy Tractors 4025 or the New Holland Workmaster 25?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 24.4 hp hp for the New Holland Workmaster 25.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the New Holland Workmaster 25?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,600 lb lb for the New Holland Workmaster 25.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the New Holland Workmaster 25?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 25.

Bad Boy Tractors 4025 vs New Holland Workmaster 25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Bad Boy Tractors 4025 leads 5 categories to 1. Machine pages: Bad Boy Tractors 4025 and New Holland Workmaster 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4025	New Holland Workmaster 25
Engine HP (hp)	▲ 24.5 hp	24.4 hp
PTO HP (hp)	—	17.3 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	1,600 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,433 lb
Lift Height (in)	▲ 104 in	72 in
Breakout Force (lbf)	▲ 3,660 lbf	2,637 lbf
Hydraulic Flow (gpm)	11.5 gpm	▲ 12.5 gpm
Travel Speed (mph)	—	14.3 mph

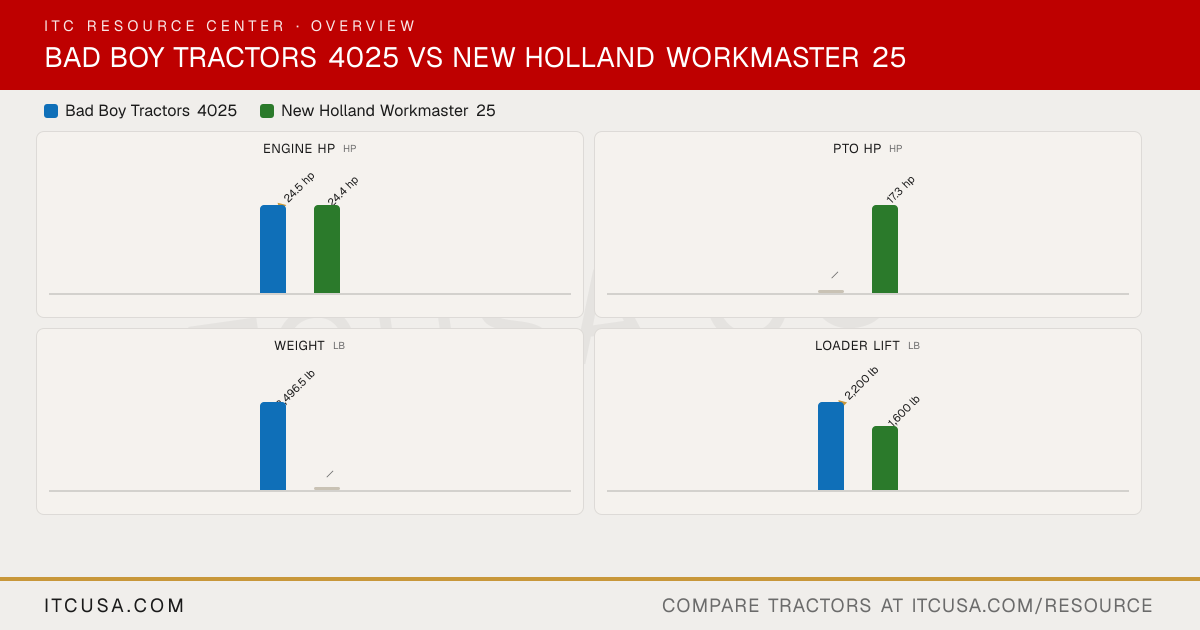

The headline numbers at a glance.

Bad Boy Tractors 4025New Holland Workmaster 25

Engine HPhp

▲24.5 hp

24.4 hp

PTO HPhp

—

17.3 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

1,600 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	New HollandWorkmaster 25


PTO Power	540 rpm, 1st stage	17.3 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Present (standard equipment)	Not Published
Engine Type	Vertical, water cooled 4-cycle, diesel engine	3-cylinder, naturally aspirated diesel
Fuel System	Diesel fuel system with fuel injection pump	In-line injection pump
Displacement	104.6 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2500 rpm
Cooling System Type	Pressurized Radiator	Pressurized liquid with recirculating bypass
Engine Manufacturer	A1700N6, A1700N5, A1700N4	Mitsubishi
Engine Power (Gross)	24.5 hp	24.4 hp
Engine Emissions Constraints	Not Published	Tier 4B Final

Tractor Weight (Base)	3,496.5 lb (3,497 lbs), 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Mechanical
Steering Flow	4.0 gpm	4.6 gpm
Implement Flow	7.5 gpm	7.9 gpm
Total Hydraulic Flow	11.5 gpm (4.0 + 7.5)	12.5 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	463 lbf/cm² maximum	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.5 gpm	12.5 gpm
No. of Optional Remote Valves	Optional (Up to 2)	1 or 2
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent, electro-hydraulic engagement
Lift Control Type	Position control type	Position control
Hitch Lift Capacity	2,425 lb @ 24 in behind lift point	1,808 lb
Mid-PTO Availability	Not Published	HST: Standard; Gear: Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb @ 24 in behind lift point	1,433 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	25X8.50-14
Tire Size & Options	OEM website lists IND tires 25X8.50-14 / 15-19.5; Operator Manual spec based on 8.0-16 / 12.4-24	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	43X16-20
R4 Industrial - Front	25X8.50-14	25X8.50-14
R1 Agricultural - Rear	12.4-24 6PR	11.2-24
R1 Agricultural - Front	8.0-16 4PR	7.0-14

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	5.2 qt
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	4.4 qt
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	7.4 gal
Front Axle Fluid Capacity	Not Published	6.9 qt
Transmission / Hydraulic System Capacity	HST: 9.77 gal	8.5 gal

Loader Lift Height	104 in	72 in
Loader Breakout Force	3,660 lb	2,637 lb
Quick Attach Loader System	SSQA	200LC: Quick Mount system; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	2,200 lb (pivot pin)	1,600 lb

Clutch	None (HST)	HST: Not Applicable; Gear: 9.4 in
No. of Speeds	3 Range	HST: 3-range; Gear: 12F/12R
Transmission Type	HST (Hydrostatic Transmission) with shuttle type	HST: 3-range hydrostatic; Gear: 12x12 mechanical shuttle
Max Travel Speed (Forward)	Not Published	HST: 14.33 mph; Gear: 13.78 mph
Max Travel Speed (Reverse)	Not Published	HST: 10.79 mph; Gear: 13.10 mph
Differential Lock & Limited Slip Options	Differential lock	Mechanical rear differential lock

Brakes	Wet, Multi-Disc	Wet disc
Steering	Hydrostatic power steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.8 in (65.79 in.)	65.9 in
Overall Width	57.1 in (57.13 in.) [ROPS Model], 55.6 in (55.63 in.) [Cabin Model]	54.1 in
Overall Length	134.9 in (134.88 in.)	—
Ground Clearance	13.2 in (13.19 in.) [ROPS Model], 13.5 in (13.50 in.) [Cabin Model]	13 in
Height to Top of ROPS	104.1 in (104.06 in.) [ROPS Model], 88.9 in (88.9 in.) [Cabin Model]	88.2 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	68.2 in
Min. Turn Radius without Brakes	Not Published	120 in
Overall Length with 3-Point Hitch	134.88 in	131 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
