John Deere 3025E vs New Holland Workmaster 25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the New Holland Workmaster 25 leads 4 categories to 2 (1 tied). Machine pages: John Deere 3025E and New Holland Workmaster 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3025E	New Holland Workmaster 25
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 17.4 hp	17.3 hp
Loader Lift (lb)	1,186 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	1,356 lb	▲ 1,433 lb
Lift Height (in)	▲ 84 in	72 in
Breakout Force (lbf)	1,704 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 12.5 gpm
Travel Speed (mph)	—	14.3 mph

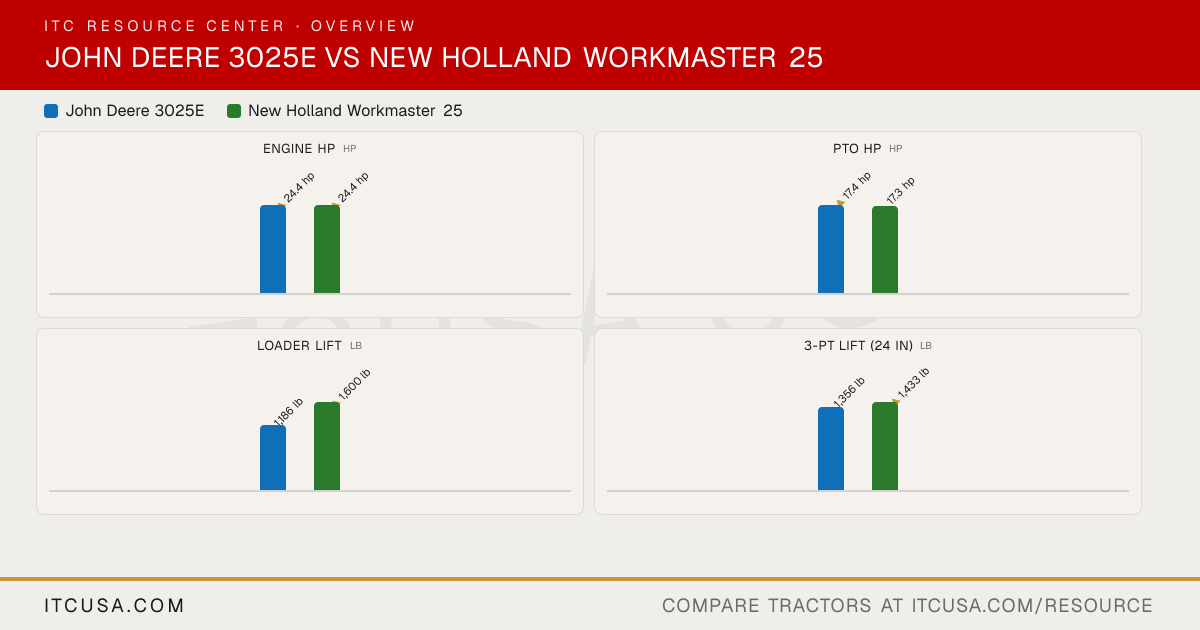

The headline numbers at a glance.

John Deere 3025ENew Holland Workmaster 25

Engine HPhp

▲24.4 hp

PTO HPhp

▲17.4 hp

17.3 hp

Weightlb

—

Loader Liftlb

1,186 lb

▲1,600 lb

3-Pt Lift (24 in)lb

1,356 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025E	New HollandWorkmaster 25


PTO Power	17.4 hp	17.3 hp
Alternator	55 A, 12 V	50 A, 12 V
Air Cleaner	Dry, dual element	Not Published
Engine Type	Diesel, naturally aspirated, direct injection	3-cylinder, naturally aspirated diesel
Fuel System	Direct injection	In-line injection pump
Displacement	100.2 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2400 rpm	2500 rpm
Cooling System Type	Liquid-cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	Yanmar	Mitsubishi
Engine Power (Gross)	24.4 hp @ 400 rpm	24.4 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Dual gear	Mechanical
Steering Flow	4.0 gpm	4.6 gpm
Implement Flow	5.3 gpm	7.9 gpm
Total Hydraulic Flow	9.3 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	9.3 gpm	12.5 gpm
No. of Optional Remote Valves	Up to 2 (optional)	1 or 2
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Independent, electro-hydraulic engagement
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1,356 lb @ 24 in behind link arms	1,808 lb
Mid-PTO Availability	Not Published	HST: Standard; Gear: Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,356 lb @ 24 in behind link arms	1,433 lb

R3 Turf - Rear	41X14-20	41X14.00-20
R3 Turf - Front	27X8.50-15	25X8.50-14
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15.00-19.5 or 43X16-20	43X16-20
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	25X8.50-14
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7-14	7.0-14

Coolant Capacity	1.24 gal	5.2 qt
Crankcase Capacity	1.06 gal	4.4 qt
Fuel Tank Capacity	7.5 U.S. gal	7.4 gal
Front Axle Fluid Capacity	3.4 qt	6.9 qt
Transmission / Hydraulic System Capacity	5.5 gal	8.5 gal

Loader Lift Height	84 in	72 in
Loader Breakout Force	1,704 lb	2,637 lb
Quick Attach Loader System	Quick-change attachment carrier	200LC: Quick Mount system; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	1,186 lb	1,600 lb

Clutch	Not Applicable	HST: Not Applicable; Gear: 9.4 in
No. of Speeds	Not Published	HST: 3-range; Gear: 12F/12R
Transmission Type	Hydrostatic transmission (HST)	HST: 3-range hydrostatic; Gear: 12x12 mechanical shuttle
Max Travel Speed (Forward)	Not Published	HST: 14.33 mph; Gear: 13.78 mph
Max Travel Speed (Reverse)	Not Published	HST: 10.79 mph; Gear: 13.10 mph
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Power steering
Frame Type	Open operator station (OOS)	Not Published
Front Axle Type	4WD (MFWD)	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	62.8 in	65.9 in
Overall Width	Not Published	54.1 in
Ground Clearance	9.4 in	13 in
Height to Top of ROPS	Not Published	88.2 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	68.2 in
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	120 in
Overall Length with 3-Point Hitch	Not Published	131 in

John Deere 3025E vs New Holland Workmaster 25: Quick Answers

Which has more horsepower, the John Deere 3025E or the New Holland Workmaster 25?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the John Deere 3025E or the New Holland Workmaster 25?: The John Deere 3025E leads on pto hp at 17.4 hp hp, compared to 17.3 hp hp for the New Holland Workmaster 25.
Which has more loader lift capacity, the John Deere 3025E or the New Holland Workmaster 25?: The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 1,186 lb lb for the John Deere 3025E.
Which has more three-point hitch lift capacity, the John Deere 3025E or the New Holland Workmaster 25?: The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,356 lb lb for the John Deere 3025E.

More Head-to-Heads

Category Verdict

Spec	John Deere 3025E	New Holland Workmaster 25
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 17.4 hp	17.3 hp
Loader Lift (lb)	1,186 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	1,356 lb	▲ 1,433 lb
Lift Height (in)	▲ 84 in	72 in
Breakout Force (lbf)	1,704 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 12.5 gpm
Travel Speed (mph)	—	14.3 mph

The headline numbers at a glance.

John Deere 3025ENew Holland Workmaster 25

Engine HPhp

▲24.4 hp

PTO HPhp

▲17.4 hp

17.3 hp

Weightlb

—

Loader Liftlb

1,186 lb

▲1,600 lb

3-Pt Lift (24 in)lb

1,356 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025E	New HollandWorkmaster 25


PTO Power	17.4 hp	17.3 hp
Alternator	55 A, 12 V	50 A, 12 V
Air Cleaner	Dry, dual element	Not Published
Engine Type	Diesel, naturally aspirated, direct injection	3-cylinder, naturally aspirated diesel
Fuel System	Direct injection	In-line injection pump
Displacement	100.2 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2400 rpm	2500 rpm
Cooling System Type	Liquid-cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	Yanmar	Mitsubishi
Engine Power (Gross)	24.4 hp @ 400 rpm	24.4 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Dual gear	Mechanical
Steering Flow	4.0 gpm	4.6 gpm
Implement Flow	5.3 gpm	7.9 gpm
Total Hydraulic Flow	9.3 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	9.3 gpm	12.5 gpm
No. of Optional Remote Valves	Up to 2 (optional)	1 or 2
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Independent, electro-hydraulic engagement
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1,356 lb @ 24 in behind link arms	1,808 lb
Mid-PTO Availability	Not Published	HST: Standard; Gear: Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,356 lb @ 24 in behind link arms	1,433 lb

R3 Turf - Rear	41X14-20	41X14.00-20
R3 Turf - Front	27X8.50-15	25X8.50-14
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15.00-19.5 or 43X16-20	43X16-20
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	25X8.50-14
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7-14	7.0-14

Coolant Capacity	1.24 gal	5.2 qt
Crankcase Capacity	1.06 gal	4.4 qt
Fuel Tank Capacity	7.5 U.S. gal	7.4 gal
Front Axle Fluid Capacity	3.4 qt	6.9 qt
Transmission / Hydraulic System Capacity	5.5 gal	8.5 gal

Loader Lift Height	84 in	72 in
Loader Breakout Force	1,704 lb	2,637 lb
Quick Attach Loader System	Quick-change attachment carrier	200LC: Quick Mount system; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	1,186 lb	1,600 lb

Clutch	Not Applicable	HST: Not Applicable; Gear: 9.4 in
No. of Speeds	Not Published	HST: 3-range; Gear: 12F/12R
Transmission Type	Hydrostatic transmission (HST)	HST: 3-range hydrostatic; Gear: 12x12 mechanical shuttle
Max Travel Speed (Forward)	Not Published	HST: 14.33 mph; Gear: 13.78 mph
Max Travel Speed (Reverse)	Not Published	HST: 10.79 mph; Gear: 13.10 mph
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Power steering
Frame Type	Open operator station (OOS)	Not Published
Front Axle Type	4WD (MFWD)	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	62.8 in	65.9 in
Overall Width	Not Published	54.1 in
Ground Clearance	9.4 in	13 in
Height to Top of ROPS	Not Published	88.2 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	68.2 in
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	120 in
Overall Length with 3-Point Hitch	Not Published	131 in

John Deere 3025E vs New Holland Workmaster 25: Quick Answers

Which has more horsepower, the John Deere 3025E or the New Holland Workmaster 25?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the John Deere 3025E or the New Holland Workmaster 25?

The John Deere 3025E leads on pto hp at 17.4 hp hp, compared to 17.3 hp hp for the New Holland Workmaster 25.

Which has more loader lift capacity, the John Deere 3025E or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on loader lift at 1,600 lb lb, compared to 1,186 lb lb for the John Deere 3025E.

Which has more three-point hitch lift capacity, the John Deere 3025E or the New Holland Workmaster 25?

The New Holland Workmaster 25 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,356 lb lb for the John Deere 3025E.
