John Deere 3035D vs Mahindra 1533

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 1533 leads 7 categories to 1. Machine pages: John Deere 3035D and Mahindra 1533.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3035D	Mahindra 1533
Engine HP (hp)	34.2 hp	▲ 34.5 hp
PTO HP (hp)	▲ 30.4 hp	25.2 hp
Weight (lb)	3,166 lb	▲ 3,175 lb
Loader Lift (lb)	1,186 lb	▲ 1,650 lb
3-Pt Lift (24 in) (lb)	2,081.2 lb	▲ 2,646 lb
Lift Height (in)	84 in	▲ 99 in
Breakout Force (lbf)	1,704 lbf	▲ 2,650 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 11 gpm

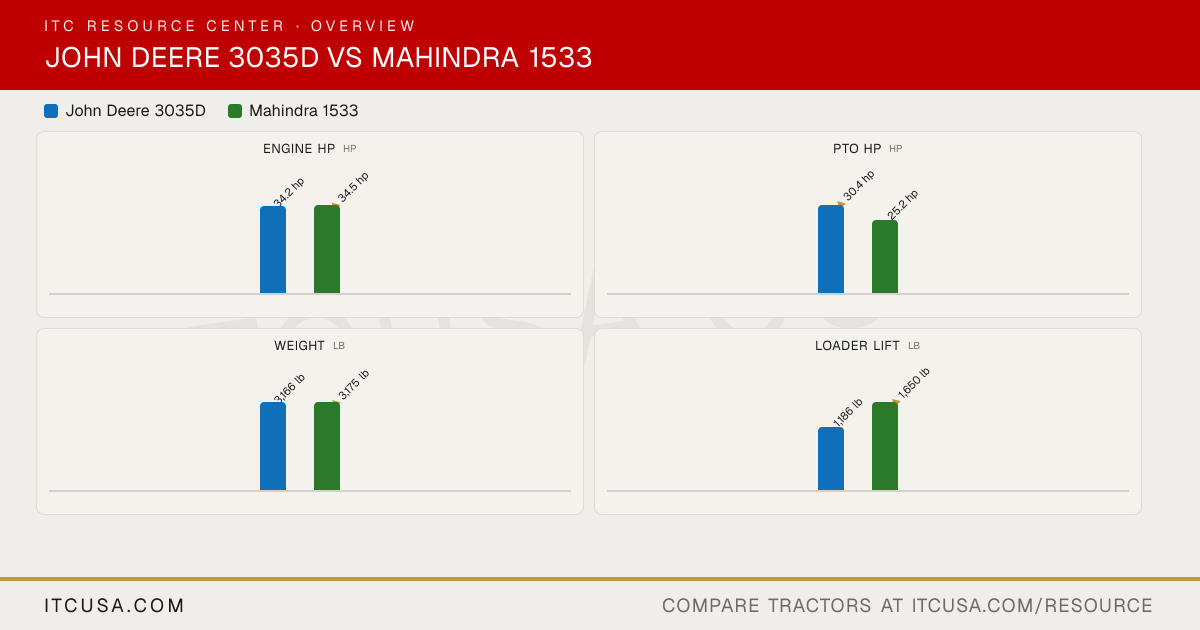

The headline numbers at a glance.

John Deere 3035DMahindra 1533

Engine HPhp

34.2 hp

▲34.5 hp

PTO HPhp

▲30.4 hp

25.2 hp

Weightlb

3,166 lb

▲3,175 lb

Loader Liftlb

1,186 lb

▲1,650 lb

3-Pt Lift (24 in)lb

2,081.2 lb

▲2,646 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	Mahindra1533


Engine Manufacturer	Yanmar	Mahindra
Engine Model	3TNV88C-KJPT	Not Published
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	Naturally aspirated direct injection diesel (mCRD common rail)
No. of Cylinders	3	4
Displacement	100.1 in³	166.7 in³
Rated Engine Speed	2800 rpm	2400 rpm
Engine Power (Gross)	34.2 hp	34.5 hp
PTO Power	30.4 hp	25.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Liquid-cooled
Air Cleaner	Dual element	Not Published
Fuel System	Direct injection	Direct injection, common rail (mCRD)
Alternator	55 A, 12 V	90 A, 12 V

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Not Published
Implement Flow	4.8 gpm	7.7 gpm
Steering Flow	3.6 gpm	3.4 gpm
Total Hydraulic Flow	Not Published	11 gpm
Overall Hydraulic Pump Flow	10.3 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	1

Fuel Tank Capacity	10.0 gal	7.7 gal
Coolant Capacity	1.2 gal	Not Published
Crankcase Capacity	1.1 gal	Not Published
Transmission / Hydraulic System Capacity	9.2 gal	Not Published
Front Axle Fluid Capacity	1.0 gal	Not Published

PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	Independent (1533 Shuttle); Live (1533 HST)
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm @ 2376 rpm
Mid-PTO Availability	Not Published	Optional; 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	Category I	CAT I with telescopic stabilizers
Hitch Lift Capacity	Not Published	2646 lb
Hitch Lift Capacity (at 24”)	2081.2 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Constant mesh shuttle (1533 Shuttle); HST, 3 ranges (1533 HST)
No. of Speeds	8F/8R	8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single dry traction clutch	Dry single disc
Differential Lock & Limited Slip Options	Differential lock: Yes; limited slip: Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat
Front Axle Type	MFWD (4WD)	Not Published
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	1102 lb	Not Published

Overall Length with 3-Point Hitch	111.2 in	127.8 in
Overall Width	57.3 in	63 in
Wheelbase	62.6 in	Not Published
Ground Clearance	13.0 in	Not Published
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	9.2 ft
Height to Top of ROPS	Not Published	90.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3166 lb	3175 lb (1533 Shuttle); 3164 lb (1533 HST)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	Ag, Industrial, Turf
R1 Agricultural - Front	7-14	7x16
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	27X8.5-15	25x8.5-14
R3 Turf - Rear	41X14-20	13.6x16
R4 Industrial - Front	25X8.5-14	27x8.5-15
R4 Industrial - Rear	15-19.5	15x19.5

Quick Attach Loader System	Quick-change attachment carrier	Not Published
Loader Model	D160	1538L
Loader Lift Height	84.0 in	1538L: 99 in
Loader Lift Capacity (Full Height)	1,186 lb	1538L: 1,650 lb
Loader Breakout Force	1,704 lb	1538L: 2,650 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	5-year powertrain warranty

Find a John Deere dealer near you Find a Mahindra dealer near you

John Deere 3035D vs Mahindra 1533: Quick Answers

Which has more horsepower, the John Deere 3035D or the Mahindra 1533?: The Mahindra 1533 leads on engine hp at 34.5 hp hp, compared to 34.2 hp hp for the John Deere 3035D.
Which has more PTO horsepower, the John Deere 3035D or the Mahindra 1533?: The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 25.2 hp hp for the Mahindra 1533.
Which is heavier, the John Deere 3035D or the Mahindra 1533?: The Mahindra 1533 leads on weight at 3,175 lb lb, compared to 3,166 lb lb for the John Deere 3035D.
Which has more loader lift capacity, the John Deere 3035D or the Mahindra 1533?: The Mahindra 1533 leads on loader lift at 1,650 lb lb, compared to 1,186 lb lb for the John Deere 3035D.
Which has more three-point hitch lift capacity, the John Deere 3035D or the Mahindra 1533?: The Mahindra 1533 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 2,081.2 lb lb for the John Deere 3035D.

More Head-to-Heads

Category Verdict

Spec	John Deere 3035D	Mahindra 1533
Engine HP (hp)	34.2 hp	▲ 34.5 hp
PTO HP (hp)	▲ 30.4 hp	25.2 hp
Weight (lb)	3,166 lb	▲ 3,175 lb
Loader Lift (lb)	1,186 lb	▲ 1,650 lb
3-Pt Lift (24 in) (lb)	2,081.2 lb	▲ 2,646 lb
Lift Height (in)	84 in	▲ 99 in
Breakout Force (lbf)	1,704 lbf	▲ 2,650 lbf
Hydraulic Flow (gpm)	10.3 gpm	▲ 11 gpm

The headline numbers at a glance.

John Deere 3035DMahindra 1533

Engine HPhp

34.2 hp

▲34.5 hp

PTO HPhp

▲30.4 hp

25.2 hp

Weightlb

3,166 lb

▲3,175 lb

Loader Liftlb

1,186 lb

▲1,650 lb

3-Pt Lift (24 in)lb

2,081.2 lb

▲2,646 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	Mahindra1533


Engine Manufacturer	Yanmar	Mahindra
Engine Model	3TNV88C-KJPT	Not Published
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	Naturally aspirated direct injection diesel (mCRD common rail)
No. of Cylinders	3	4
Displacement	100.1 in³	166.7 in³
Rated Engine Speed	2800 rpm	2400 rpm
Engine Power (Gross)	34.2 hp	34.5 hp
PTO Power	30.4 hp	25.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Liquid-cooled
Air Cleaner	Dual element	Not Published
Fuel System	Direct injection	Direct injection, common rail (mCRD)
Alternator	55 A, 12 V	90 A, 12 V

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Not Published
Implement Flow	4.8 gpm	7.7 gpm
Steering Flow	3.6 gpm	3.4 gpm
Total Hydraulic Flow	Not Published	11 gpm
Overall Hydraulic Pump Flow	10.3 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	1

Fuel Tank Capacity	10.0 gal	7.7 gal
Coolant Capacity	1.2 gal	Not Published
Crankcase Capacity	1.1 gal	Not Published
Transmission / Hydraulic System Capacity	9.2 gal	Not Published
Front Axle Fluid Capacity	1.0 gal	Not Published

PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	Independent (1533 Shuttle); Live (1533 HST)
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm @ 2376 rpm
Mid-PTO Availability	Not Published	Optional; 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	Category I	CAT I with telescopic stabilizers
Hitch Lift Capacity	Not Published	2646 lb
Hitch Lift Capacity (at 24”)	2081.2 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Constant mesh shuttle (1533 Shuttle); HST, 3 ranges (1533 HST)
No. of Speeds	8F/8R	8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single dry traction clutch	Dry single disc
Differential Lock & Limited Slip Options	Differential lock: Yes; limited slip: Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat
Front Axle Type	MFWD (4WD)	Not Published
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	1102 lb	Not Published

Overall Length with 3-Point Hitch	111.2 in	127.8 in
Overall Width	57.3 in	63 in
Wheelbase	62.6 in	Not Published
Ground Clearance	13.0 in	Not Published
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	9.2 ft
Height to Top of ROPS	Not Published	90.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3166 lb	3175 lb (1533 Shuttle); 3164 lb (1533 HST)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	Ag, Industrial, Turf
R1 Agricultural - Front	7-14	7x16
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	27X8.5-15	25x8.5-14
R3 Turf - Rear	41X14-20	13.6x16
R4 Industrial - Front	25X8.5-14	27x8.5-15
R4 Industrial - Rear	15-19.5	15x19.5

Quick Attach Loader System	Quick-change attachment carrier	Not Published
Loader Model	D160	1538L
Loader Lift Height	84.0 in	1538L: 99 in
Loader Lift Capacity (Full Height)	1,186 lb	1538L: 1,650 lb
Loader Breakout Force	1,704 lb	1538L: 2,650 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	5-year powertrain warranty

Find a John Deere dealer near you Find a Mahindra dealer near you

John Deere 3035D vs Mahindra 1533: Quick Answers

Which has more horsepower, the John Deere 3035D or the Mahindra 1533?

The Mahindra 1533 leads on engine hp at 34.5 hp hp, compared to 34.2 hp hp for the John Deere 3035D.

Which has more PTO horsepower, the John Deere 3035D or the Mahindra 1533?

The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 25.2 hp hp for the Mahindra 1533.

Which is heavier, the John Deere 3035D or the Mahindra 1533?

The Mahindra 1533 leads on weight at 3,175 lb lb, compared to 3,166 lb lb for the John Deere 3035D.

Which has more loader lift capacity, the John Deere 3035D or the Mahindra 1533?

The Mahindra 1533 leads on loader lift at 1,650 lb lb, compared to 1,186 lb lb for the John Deere 3035D.

Which has more three-point hitch lift capacity, the John Deere 3035D or the Mahindra 1533?

The Mahindra 1533 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 2,081.2 lb lb for the John Deere 3035D.
