John Deere 3320 vs New Holland TC33D
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the John Deere 3320 leads 7 categories to 2. Machine pages: John Deere 3320 and New Holland TC33D.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

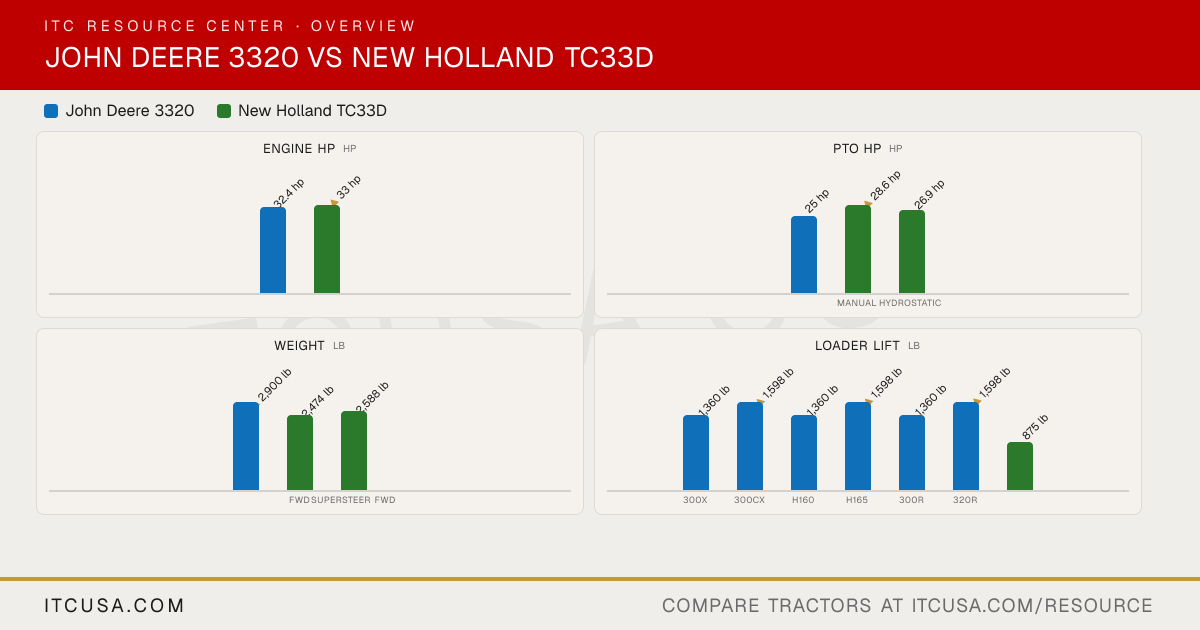

Category Verdict
| Spec | John Deere 3320 | New Holland TC33D |
|---|---|---|
| Engine HP (hp) | 32.4 hp | ▲ 33 hp |
| PTO HP (hp) | 25 hp | ▲ 28.6 hp |
| Weight (lb) | ▲ 2,900 lb | 2,588 lb |
| Loader Lift (lb) | ▲ 1,598 lb | 875 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,200 lb | 1,635 lb |
| Lift Height (in) | ▲ 102 in | 100.8 in |
| Breakout Force (lbf) | ▲ 3,327 lbf | 2,344 lbf |
| Hydraulic Flow (gpm) | ▲ 13.9 gpm | 12.7 gpm |
| Travel Speed (mph) | ▲ 19 mph | 14.3 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere3320 | New HollandTC33D |
|---|
| Engine Manufacturer | Yanmar | Shibaura |
|---|---|---|
| Engine Model | 3TNV88-BMJT | Not Published |
| Engine Type | 3-cylinder liquid-cooled diesel, direct injection | 3-cylinder liquid-cooled diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 100.1 in³ | 91.3 in³ |
| Rated Engine Speed | 2600 rpm | 2800 rpm |
| Engine Power (Gross) | 32.4 hp | 33 hp |
| PTO Power | 25 hp | Manual: 28.6 hp; Hydrostatic: 26.9 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry type with safety element | Not Published |
| Fuel System | Direct injection, self bleeding, in-line fuel pump with electric shutoff | Not Published |
| Alternator | 40 A | Not Published |
John Deere 3320 vs New Holland TC33D: Quick Answers
- Which has more horsepower, the John Deere 3320 or the New Holland TC33D?
- The New Holland TC33D leads on engine hp at 33 hp hp, compared to 32.4 hp hp for the John Deere 3320.
- Which has more PTO horsepower, the John Deere 3320 or the New Holland TC33D?
- The New Holland TC33D leads on pto hp at 28.6 hp hp, compared to 25 hp hp for the John Deere 3320.
- Which is heavier, the John Deere 3320 or the New Holland TC33D?
- The John Deere 3320 leads on weight at 2,900 lb lb, compared to 2,588 lb lb for the New Holland TC33D.
- Which has more loader lift capacity, the John Deere 3320 or the New Holland TC33D?
- The John Deere 3320 leads on loader lift at 1,598 lb lb, compared to 875 lb lb for the New Holland TC33D.
- Which has more three-point hitch lift capacity, the John Deere 3320 or the New Holland TC33D?
- The John Deere 3320 leads on 3-pt lift (24 in) at 2,200 lb lb, compared to 1,635 lb lb for the New Holland TC33D.
