Bad Boy Tractors 4025 vs New Holland TC33D

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 5 categories to 3. Machine pages: Bad Boy Tractors 4025 and New Holland TC33D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

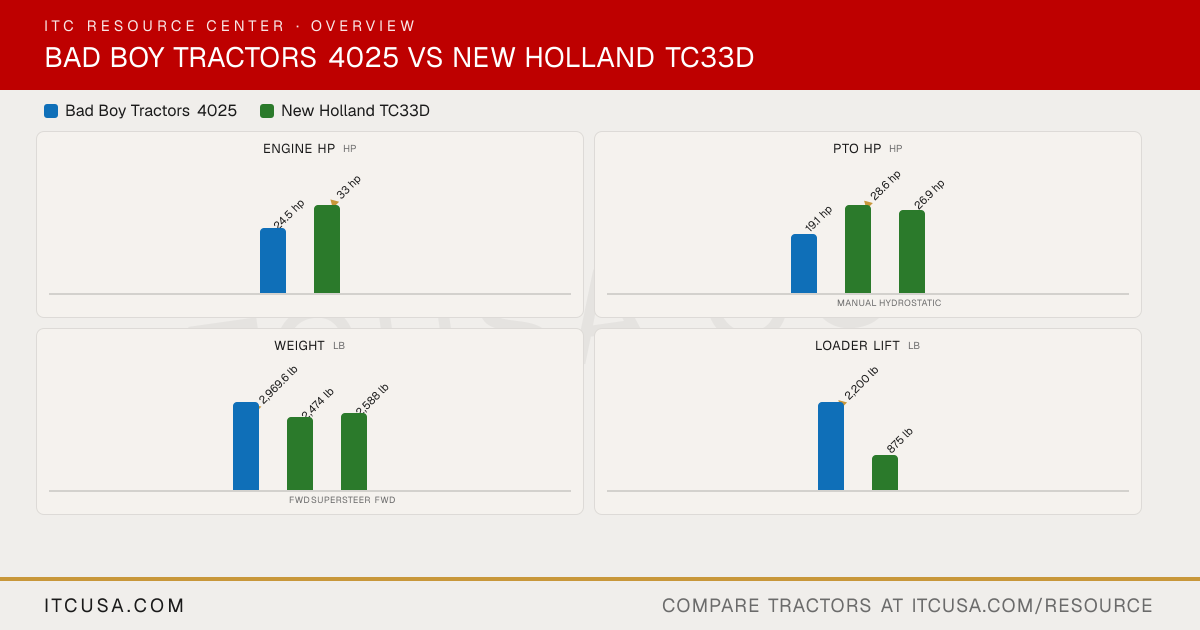

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	New HollandTC33D

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1700N6-BUTR_3	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	104.7 in³	91.3 in³
Rated Engine Speed	2100 rpm	2800 rpm
Engine Power (Gross)	24.5 hp	33 hp
PTO Power	19.1 hp	Manual: 28.6 hp; Hydrostatic: 26.9 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Implement Flow	7.5 gpm	7.6 gpm
Steering Flow	4 gpm	5.1 gpm
Total Hydraulic Flow	11.5 gpm	12.7 gpm
Overall Hydraulic Pump Flow	11.5 gpm	12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.3 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	533 rpm	540 rpm (live)
Mid-PTO Availability	Not Published	Manual: transmission-driven 2000 rpm (DIA); Hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,635 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Manual: 9x3 gear; Hydrostatic: 3-range hydrostatic
No. of Speeds	3 range (A/B/C)	Manual: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	Not Published	Manual: 12.8 mph; Hydrostatic: 14.3 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	FWD (standard); SuperSteer FWD with Sensitrak clutch (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	FWD: 106.2 in; SuperSteer FWD: 115.3 in
Overall Width	56.7 in	54.3 in
Wheelbase	65.7 in	FWD: 63.0 in; SuperSteer FWD: 72.0 in
Ground Clearance	15 in	14.0 in
Min. Turn Radius without Brakes	Not Published	FWD: 96.5 in; SuperSteer FWD: 93.8 in (with brake applied)
Height to Top of ROPS	96.85 in	87.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	FWD: 2,474 lb; SuperSteer FWD: 2,588 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	R1 Ag, R3 Turf (including Galaxy Turf Special), R4 Industrial; FWD only (2WD not available)
R1 Agricultural - Front	8.0-16	7x14 (FWD)
R1 Agricultural - Rear	12.4-24	11.2x24
R3 Turf - Front	Not Published	24x8.50-14 (FWD); Galaxy 25/10.50LLx15
R3 Turf - Rear	Not Published	13.6x16; Turf Special 41/18LLx16.1
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	15-19.5	15x19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	7308
Loader Lift Height	104 in	7308: 100.8 in
Loader Lift Capacity (Full Height)	2,200 lb	7308: 875 lb
Loader Breakout Force	3,660 lbf	7308: 2,344 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 4025 vs New Holland TC33D: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the New Holland TC33D?

The New Holland TC33D leads on engine hp at 33 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the New Holland TC33D?

The New Holland TC33D leads on pto hp at 28.6 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the New Holland TC33D?

The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 2,588 lb lb for the New Holland TC33D.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the New Holland TC33D?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 875 lb lb for the New Holland TC33D.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the New Holland TC33D?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,635 lb lb for the New Holland TC33D.
