Bad Boy Tractors 3026 vs New Holland TC33D

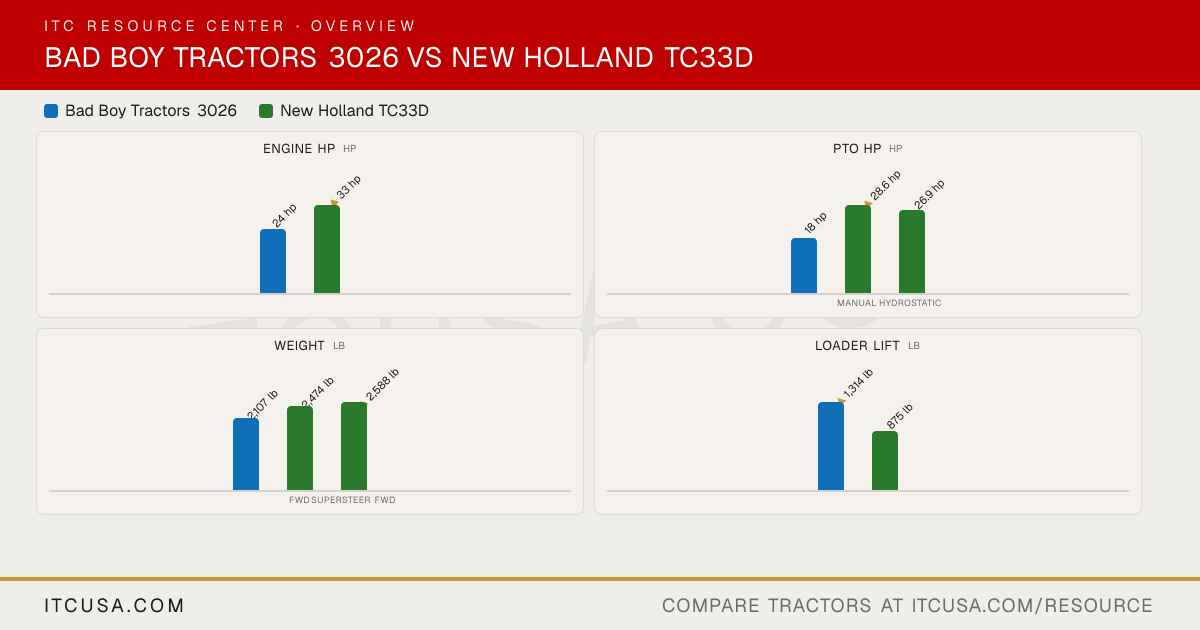

Across 9 measurable specs, the New Holland TC33D leads 7 categories to 2. Machine pages: Bad Boy Tractors 3026 and New Holland TC33D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	New HollandTC33D

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1100N2	Not Published
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	70.7 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	24 hp	33 hp
PTO Power	18 hp	Manual: 28.6 hp; Hydrostatic: 26.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	7.6 gpm
Steering Flow	3.1 gpm	5.1 gpm
Total Hydraulic Flow	7.4 gpm	12.7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.3 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Live
PTO Rear	540 / 960 rpm	540 rpm (live)
Mid-PTO Availability	Optional, 2,500 rpm	Manual: transmission-driven 2000 rpm (DIA); Hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	1,635 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Manual: 9x3 gear; Hydrostatic: 3-range hydrostatic
No. of Speeds	3 range (L/M/H)	Manual: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	14.8 mph	Manual: 12.8 mph; Hydrostatic: 14.3 mph
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	FWD (standard); SuperSteer FWD with Sensitrak clutch (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	FWD: 106.2 in; SuperSteer FWD: 115.3 in
Overall Width	53.9 in	54.3 in
Wheelbase	65.7 in	FWD: 63.0 in; SuperSteer FWD: 72.0 in
Ground Clearance	16.4 in	14.0 in
Min. Turn Radius without Brakes	Not Published	FWD: 96.5 in; SuperSteer FWD: 93.8 in (with brake applied)
Height to Top of ROPS	91.4 in	87.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	FWD: 2,474 lb; SuperSteer FWD: 2,588 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R1 Ag, R3 Turf (including Galaxy Turf Special), R4 Industrial; FWD only (2WD not available)
R1 Agricultural - Front	7-16 6PR	7x14 (FWD)
R1 Agricultural - Rear	11.2-20	11.2x24
R3 Turf - Front	Not Published	24x8.50-14 (FWD); Galaxy 25/10.50LLx15
R3 Turf - Rear	Not Published	13.6x16; Turf Special 41/18LLx16.1
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	14-17.5	15x19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	7308
Loader Lift Height	87.5 in	7308: 100.8 in
Loader Lift Capacity (Full Height)	1,314 lb	7308: 875 lb
Loader Breakout Force	1,960 lbf	7308: 2,344 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 3026 vs New Holland TC33D: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the New Holland TC33D?

The New Holland TC33D leads on engine hp at 33 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the New Holland TC33D?

The New Holland TC33D leads on pto hp at 28.6 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the New Holland TC33D?

The New Holland TC33D leads on weight at 2,588 lb lb, compared to 2,107 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the New Holland TC33D?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 875 lb lb for the New Holland TC33D.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the New Holland TC33D?

The New Holland TC33D leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
