Kioti CS2410 vs Kioti CS2520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Kioti CS2520 leads 4 categories to 3 (2 tied). Machine pages: Kioti CS2410 and Kioti CS2520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti CS2410	Kioti CS2520
Engine HP (hp)	24.5 hp	24.5 hp
PTO HP (hp)	▲ 19.4 hp	18.5 hp
Weight (lb)	1,485 lb	▲ 1,554 lb
Loader Lift (lb)	675.3 lb	▲ 1,062.3 lb
3-Pt Lift (24 in) (lb)	700 lb	700 lb
Lift Height (in)	71.3 in	▲ 73.7 in
Breakout Force (lbf)	▲ 1,332 lbf	1,329 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 7 gpm
Travel Speed (mph)	▲ 10.3 mph	9.6 mph

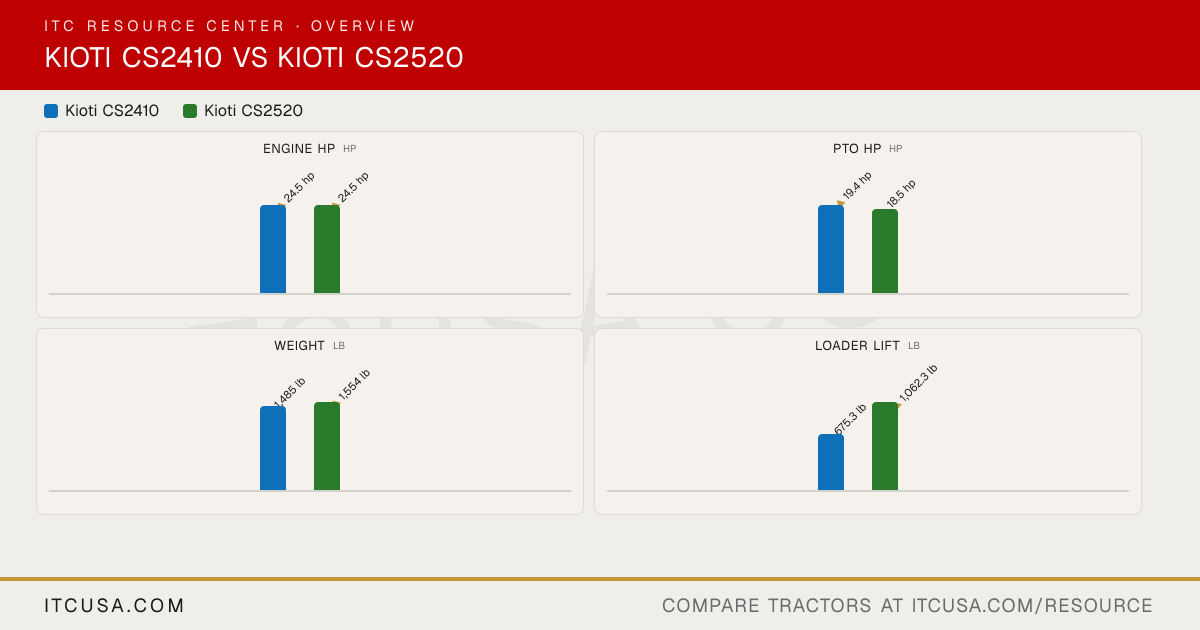

The headline numbers at a glance.

Kioti CS2410Kioti CS2520

Engine HPhp

▲24.5 hp

PTO HPhp

▲19.4 hp

18.5 hp

Weightlb

1,485 lb

▲1,554 lb

Loader Liftlb

675.3 lb

▲1,062.3 lb

3-Pt Lift (24 in)lb

▲700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCS2410	KiotiCS2520


Engine Manufacturer	Shibaura	KIOTI (Daedong)
Engine Model	S773L	3C100LFH-U2
Engine Type	3-cylinder diesel with pressurized radiator	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)
No. of Cylinders	3	3
Displacement	69.0 in³	61.5 in³
Rated Engine Speed	3000 rpm	3200 rpm
Engine Power (Gross)	24.5 hp	24.5 hp
PTO Power	19.4 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled (pressurized radiator)	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Indirect injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear	Gear
Implement Flow	Not Published	7.0 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	6.5 gpm	7.0 gpm
Overall Hydraulic Pump Flow	6.5 gpm	7.0 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.7 gal	6.7 gal
Coolant Capacity	Not Published	0.87 gal
Crankcase Capacity	Not Published	1.0 gal
Transmission / Hydraulic System Capacity	Not Published	2.75 gal
Front Axle Fluid Capacity	Not Published	0.53 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2,200 rpm)	Available (2,200 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,580 lb
Hitch Lift Capacity (at 24”)	700 lb	700 lb
Lift Control Type	Position	Position

Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	Infinite, 2 range	Infinite, 2 range (High/Low)
Max Travel Speed (Forward)	10.31 mph	9.6 mph
Max Travel Speed (Reverse)	6.96 mph	6.6 mph
Clutch	Not Published	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (standard)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc	Wet multi disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD (standard, single-lever engagement)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	98.1 in	99.3 in
Overall Width	46.5 in	45.9 in
Wheelbase	55.1 in	55.1 in
Ground Clearance	6.4 in	6.4 in
Min. Turn Radius without Brakes	8.3 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	88 in	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,485 lb	1,554 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	18x8.5-10	18x8.5-10
R1 Agricultural - Rear	26x12.00-12	26x12.00-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12

Quick Attach Loader System	Quick attach (QA) bucket, 48 in	Quick attach (QA) bucket, 48 in
Loader Model	SL2410	SL2420
Loader Lift Height	SL2410: 71.3 in	SL2420: 73.7 in
Loader Lift Capacity (Full Height)	SL2410: 675.3 lb	SL2420: 1,062.3 lb
Loader Breakout Force	SL2410: 1,332 lb	SL2420: 1,329.0 lb

Warranty Length & Coverage	Not Published	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor

Find a KIOTI dealer near you

Kioti CS2410 vs Kioti CS2520: Quick Answers

Which has more horsepower, the Kioti CS2410 or the Kioti CS2520?: They are effectively tied: both machines are rated at 24.5 hp hp for engine hp.
Which has more PTO horsepower, the Kioti CS2410 or the Kioti CS2520?: The Kioti CS2410 leads on pto hp at 19.4 hp hp, compared to 18.5 hp hp for the Kioti CS2520.
Which is heavier, the Kioti CS2410 or the Kioti CS2520?: The Kioti CS2520 leads on weight at 1,554 lb lb, compared to 1,485 lb lb for the Kioti CS2410.
Which has more loader lift capacity, the Kioti CS2410 or the Kioti CS2520?: The Kioti CS2520 leads on loader lift at 1,062.3 lb lb, compared to 675.3 lb lb for the Kioti CS2410.
Which has more three-point hitch lift capacity, the Kioti CS2410 or the Kioti CS2520?: They are effectively tied: both machines are rated at 700 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Kioti CS2410	Kioti CS2520
Engine HP (hp)	24.5 hp	24.5 hp
PTO HP (hp)	▲ 19.4 hp	18.5 hp
Weight (lb)	1,485 lb	▲ 1,554 lb
Loader Lift (lb)	675.3 lb	▲ 1,062.3 lb
3-Pt Lift (24 in) (lb)	700 lb	700 lb
Lift Height (in)	71.3 in	▲ 73.7 in
Breakout Force (lbf)	▲ 1,332 lbf	1,329 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 7 gpm
Travel Speed (mph)	▲ 10.3 mph	9.6 mph

The headline numbers at a glance.

Kioti CS2410Kioti CS2520

Engine HPhp

▲24.5 hp

PTO HPhp

▲19.4 hp

18.5 hp

Weightlb

1,485 lb

▲1,554 lb

Loader Liftlb

675.3 lb

▲1,062.3 lb

3-Pt Lift (24 in)lb

▲700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCS2410	KiotiCS2520


Engine Manufacturer	Shibaura	KIOTI (Daedong)
Engine Model	S773L	3C100LFH-U2
Engine Type	3-cylinder diesel with pressurized radiator	In-Line Vertical, Water-Cooled 4-Cycle Diesel (3-cylinder)
No. of Cylinders	3	3
Displacement	69.0 in³	61.5 in³
Rated Engine Speed	3000 rpm	3200 rpm
Engine Power (Gross)	24.5 hp	24.5 hp
PTO Power	19.4 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled (pressurized radiator)	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Indirect injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear	Gear
Implement Flow	Not Published	7.0 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	6.5 gpm	7.0 gpm
Overall Hydraulic Pump Flow	6.5 gpm	7.0 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.7 gal	6.7 gal
Coolant Capacity	Not Published	0.87 gal
Crankcase Capacity	Not Published	1.0 gal
Transmission / Hydraulic System Capacity	Not Published	2.75 gal
Front Axle Fluid Capacity	Not Published	0.53 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2,200 rpm)	Available (2,200 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,580 lb
Hitch Lift Capacity (at 24”)	700 lb	700 lb
Lift Control Type	Position	Position

Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	Infinite, 2 range	Infinite, 2 range (High/Low)
Max Travel Speed (Forward)	10.31 mph	9.6 mph
Max Travel Speed (Reverse)	6.96 mph	6.6 mph
Clutch	Not Published	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (standard)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc	Wet multi disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD (standard, single-lever engagement)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	98.1 in	99.3 in
Overall Width	46.5 in	45.9 in
Wheelbase	55.1 in	55.1 in
Ground Clearance	6.4 in	6.4 in
Min. Turn Radius without Brakes	8.3 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	88 in	87.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,485 lb	1,554 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear	R1 Agricultural, R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	18x8.5-10	18x8.5-10
R1 Agricultural - Rear	26x12.00-12	26x12.00-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12

Quick Attach Loader System	Quick attach (QA) bucket, 48 in	Quick attach (QA) bucket, 48 in
Loader Model	SL2410	SL2420
Loader Lift Height	SL2410: 71.3 in	SL2420: 73.7 in
Loader Lift Capacity (Full Height)	SL2410: 675.3 lb	SL2420: 1,062.3 lb
Loader Breakout Force	SL2410: 1,332 lb	SL2420: 1,329.0 lb

Warranty Length & Coverage	Not Published	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor

Find a KIOTI dealer near you

Kioti CS2410 vs Kioti CS2520: Quick Answers

Which has more horsepower, the Kioti CS2410 or the Kioti CS2520?

They are effectively tied: both machines are rated at 24.5 hp hp for engine hp.

Which has more PTO horsepower, the Kioti CS2410 or the Kioti CS2520?

The Kioti CS2410 leads on pto hp at 19.4 hp hp, compared to 18.5 hp hp for the Kioti CS2520.

Which is heavier, the Kioti CS2410 or the Kioti CS2520?

The Kioti CS2520 leads on weight at 1,554 lb lb, compared to 1,485 lb lb for the Kioti CS2410.

Which has more loader lift capacity, the Kioti CS2410 or the Kioti CS2520?

The Kioti CS2520 leads on loader lift at 1,062.3 lb lb, compared to 675.3 lb lb for the Kioti CS2410.

Which has more three-point hitch lift capacity, the Kioti CS2410 or the Kioti CS2520?

They are effectively tied: both machines are rated at 700 lb lb for 3-pt lift (24 in).
