Which has more horsepower, the Kubota BX23S or the Kubota BX2680?

The Kubota BX2680 leads on engine hp at 24.8 hp hp, compared to 23 hp hp for the Kubota BX23S.

Which has more PTO horsepower, the Kubota BX23S or the Kubota BX2680?

The Kubota BX2680 leads on pto hp at 19.5 hp hp, compared to 17.7 hp hp for the Kubota BX23S.

Which has more loader lift capacity, the Kubota BX23S or the Kubota BX2680?

The Kubota BX2680 leads on loader lift at 739 lb lb, compared to 738.5 lb lb for the Kubota BX23S.

Which has more three-point hitch lift capacity, the Kubota BX23S or the Kubota BX2680?

They are effectively tied: both machines are rated at 680 lb lb for 3-pt lift (24 in).

Kubota BX23S vs Kubota BX2680

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota BX2680 leads 4 categories to 1 (3 tied). Machine pages: Kubota BX23S and Kubota BX2680.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota BX23S	Kubota BX2680
Engine HP (hp)	23 hp	▲ 24.8 hp
PTO HP (hp)	17.7 hp	▲ 19.5 hp
Weight (lb)	1,598.3 lb	—
Loader Lift (lb)	738.5 lb	▲ 739 lb
3-Pt Lift (24 in) (lb)	680 lb	680 lb
Lift Height (in)	71 in	71 in
Breakout Force (lbf)	▲ 6,258 lbf	1,286 lbf
Hydraulic Flow (gpm)	6.2 gpm	6.2 gpm
Travel Speed (mph)	0 mph	▲ 8.1 mph

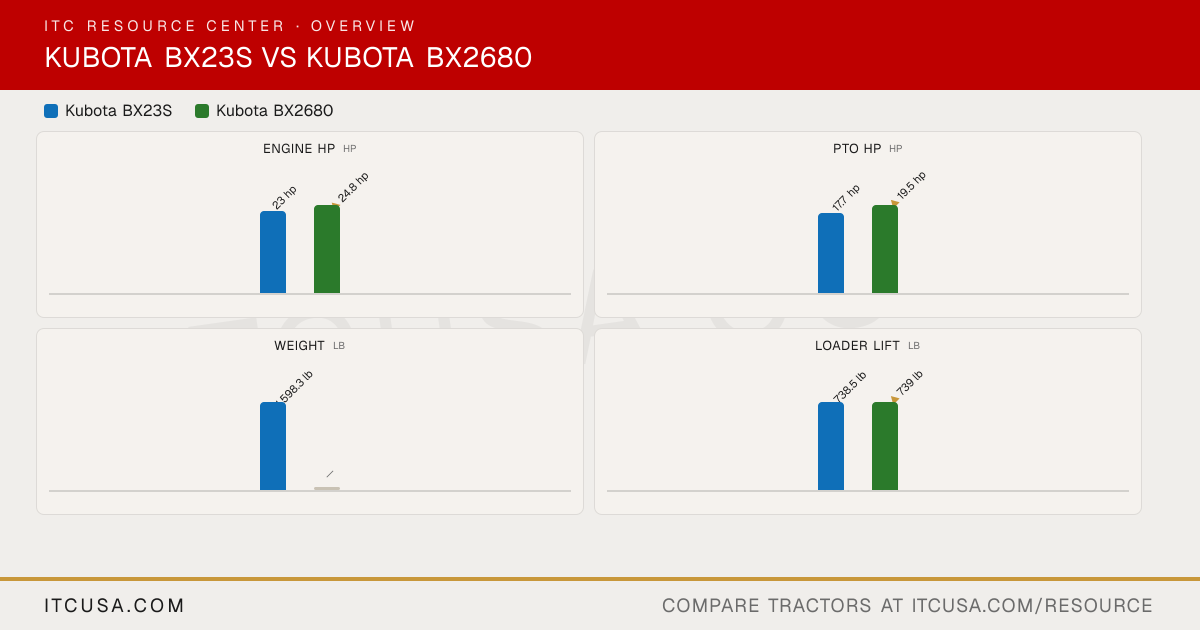

The headline numbers at a glance.

Kubota BX23SKubota BX2680

Engine HPhp

23 hp

▲24.8 hp

PTO HPhp

17.7 hp

▲19.5 hp

Weightlb

1,598.3 lb

—

Loader Liftlb

738.5 lb

▲739 lb

3-Pt Lift (24 in)lb

▲680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX23S	KubotaBX2680


PTO Power	17.7 hp	19.5 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Sheet net and replaceable treated paper element, spin on oil filter	Sheet net and replaceable treated paper element, spin on oil filter
Engine Type	Liquid-cooled, 4-cycle diesel	Liquid cooled, 4-cycle, diesel
Fuel System	Diesel fuel No.2 [above -10 ℃ (14 ℉)] Diesel fuel No.1 [below -10 ℃ (14 ℉)]	Direct injection
Displacement	54.8 in³	61.1 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	3200 rpm
Cooling System Type	Liquid-cooled	Water with pressurized radiator, reverse air-flow design
Engine Manufacturer	KUBOTA	Kubota
Engine Power (Gross)	23 hp	24.8 hp
Engine Emissions Constraints	Not Published	Not Published

Tractor Weight (Base)	1,598.3 lb (1600 lbs.)	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Hydrostatic transmission	Open center tandem pump gear type
Steering Flow	1.0 gpm	1.0 gpm
Implement Flow	6.2 gpm (23.5 l/min.)	5.2 gpm
Total Hydraulic Flow	6.2 gpm	6.2 gpm
Hydraulic System Type	Open center tandem pump gear type	Open center
System Operating Pressure	12.3 MPa to 12.8 MPa	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.2 gpm	6.2 gpm
No. of Optional Remote Valves	2 (optional; ISO 7241-1 series A or B)	2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves	2 valves	Not Published

PTO Rear	STD 540 rpm	STD (540 rpm)
PTO Type	Live independent PTO (with hydraulic clutch)	Live independent PTO (with hydraulic clutch)
Lift Control Type	Quarter-inching valve	Not Published
Hitch Lift Capacity	1,213 lbs.	Not Published
Mid-PTO Availability	STD (2500rpm)	STD (2500 rpm)
Category, 3-Point Hitch	SAE Category 1	SAE Category I Optional
Hitch Lift Capacity (at 24”)	680 lb	680 lb

R3 Turf - Rear	26×12-12	26X12-12
R3 Turf - Front	18×8.5-10	18X8.5-10
Tire Size & Options	Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	26×12-12	26X12-12
R4 Industrial - Front	18×8.5-10	18X8.5-10
R1 Agricultural - Rear	Not Applicable	26X12-12
R1 Agricultural - Front	Not Applicable	18X8.5-10

Coolant Capacity	0.8 gal (3.3 U.S.qts.)	Not Published
Crankcase Capacity	0.9 gal (3.4 U.S.qts.)	Not Published
Fuel Tank Capacity	6.6 gal (6.6 U.S.gals.)	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	2.98 U.S. gals.	Not Published

Loader Lift Height	71.0 in	71.0 in
Loader Breakout Force	6258 N (1407 lbs) [LA340] / 5719 N (1286 lbs) [LA340S]	1,286 lbf (bucket pivot pin)
Quick Attach Loader System	Kubota Swift-Tach (Quick attach)	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Lift Capacity (Full Height)	738.5 lb (739 lbs) [LA340] / 612.9 lb (613 lbs) [LA340S]	739 lb

Clutch	Dry type single plate - Main clutch 9.45"	Dry type single plate - Main clutch 9.45 in.
No. of Speeds	2 Range (Low-High)	2 Range (Low-High)
Transmission Type	Hydrostatic transmission, High-Low gear shift (2 forward, 2 reverse)	Hydrostatic transmission
Max Travel Speed (Forward)	0 mph to 8.4 mph	8.1 mph
Max Travel Speed (Reverse)	0 mph to 6.5 mph	6.2 mph
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock standard

Brakes	Mechanical, wet disc type	Mechanical, wet disc type
Steering	Hydrostatic Power Steering	Integral power steering
Frame Type	Two-post foldable ROPS	Not Published
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Maximum tongue weight 550 lb.	Max. drawbar load @ hitch: 550 lb.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	55.1 in (55.1 in.)	55.1 in
Overall Width	45.1 in (45.1 in.)	45.1 in
Overall Length	87 in (87.0 in.) w / Front guard (without 3P), 99 in (99.0 in.) w / Front guard (with 3P)	—
Ground Clearance	5.8 in (5.83 in.)	6.5 in
Height to Top of ROPS	86.2 in (86.2 in.)	83.1 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	7.5 feet	7.5 ft (2.3 m)
Overall Length with 3-Point Hitch	99.0 in. w/3-Pt., w/ Front guard	99.0 in (w/ Front guard)

Kubota BX23S vs Kubota BX2680: Quick Answers

Which has more horsepower, the Kubota BX23S or the Kubota BX2680?: The Kubota BX2680 leads on engine hp at 24.8 hp hp, compared to 23 hp hp for the Kubota BX23S.
Which has more PTO horsepower, the Kubota BX23S or the Kubota BX2680?: The Kubota BX2680 leads on pto hp at 19.5 hp hp, compared to 17.7 hp hp for the Kubota BX23S.
Which has more loader lift capacity, the Kubota BX23S or the Kubota BX2680?: The Kubota BX2680 leads on loader lift at 739 lb lb, compared to 738.5 lb lb for the Kubota BX23S.
Which has more three-point hitch lift capacity, the Kubota BX23S or the Kubota BX2680?: They are effectively tied: both machines are rated at 680 lb lb for 3-pt lift (24 in).
