Kubota L3302 vs Kubota LX4020

Across 7 measurable specs, the Kubota LX4020 leads 4 categories to 3. Machine pages: Kubota L3302 and Kubota LX4020.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3302	KubotaLX4020

▶Engine
PTO Power	28 hp	32.6 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	6 inch paper filter (with dual element)
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Fuel System	Direct injection	Not Published
Displacement	111.4 in³	91.4 in³
No. of Cylinders	3	4
Rated Engine Speed	2700 rpm	2700 rpm
Cooling System Type	Water-cooled	Pressurized radiator
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	33 hp	39.8 hp
Engine Emissions Constraints	Not Published	Not Published
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Not Published	Dual pump
Steering Flow	3.8 gpm	Not Published
Implement Flow	6.3 gpm	Not Published
Total Hydraulic Flow	10.1 gpm	9.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	10.1 gpm	9.5 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch	Independent
Lift Control Type	Position control	Position control valve
Hitch Lift Capacity	1998 lb	2535 lb
Mid-PTO Availability	Not Published	2460 rpm
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity (at 24”)	1435 lb	1962 lb
▶Tire Options
R3 Turf - Rear	13.6-16	Option 1: 13.6-16; Option 2: 16.6-16
R3 Turf - Front	25X8.50-14	24X8.50-14
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf
R4 Industrial - Rear	15-19.5	Not Applicable
R4 Industrial - Front	27X8.50-15	Not Applicable
R1 Agricultural - Rear	11.2-24	320/85D16
R1 Agricultural - Front	7.2-16	180/85D12
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	5.0 qt
Fuel Tank Capacity	13.5 gal	8.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	5.5 gal
▶Loader & Attachments
Loader Lift Height	94.3 in	87.6 in
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)	1144.4 lb	1100 lb
▶Transmission & Drivetrain
Clutch	DT (4WD): Dry type single stage; HST (4WD): Not Applicable	N/A
No. of Speeds	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	3 ranges
Transmission Type	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	Hydrostatic transmission
Max Travel Speed (Forward)	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph	17.0 mph
Max Travel Speed (Reverse)	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph	13.0 mph
Differential Lock & Limited Slip Options	Not Published	Differential lock standard
▶Chassis, Steering & Controls
Brakes	Mechanical, wet disc type	Multi-plate wet disk
Steering	Integral type power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Seat Type: Deluxe; Seat Suspension: Adjustable
▶Dimensions & Maneuverability
Wheelbase	63.4 in	66.7 in
Overall Width	55.1 in	53.7 in
Ground Clearance	13.4 in	8.9 in
Height to Top of ROPS	91.7 in	88.2 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	108.5 in	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 Messick's partnership, staged by migration 0118	None tagged yet

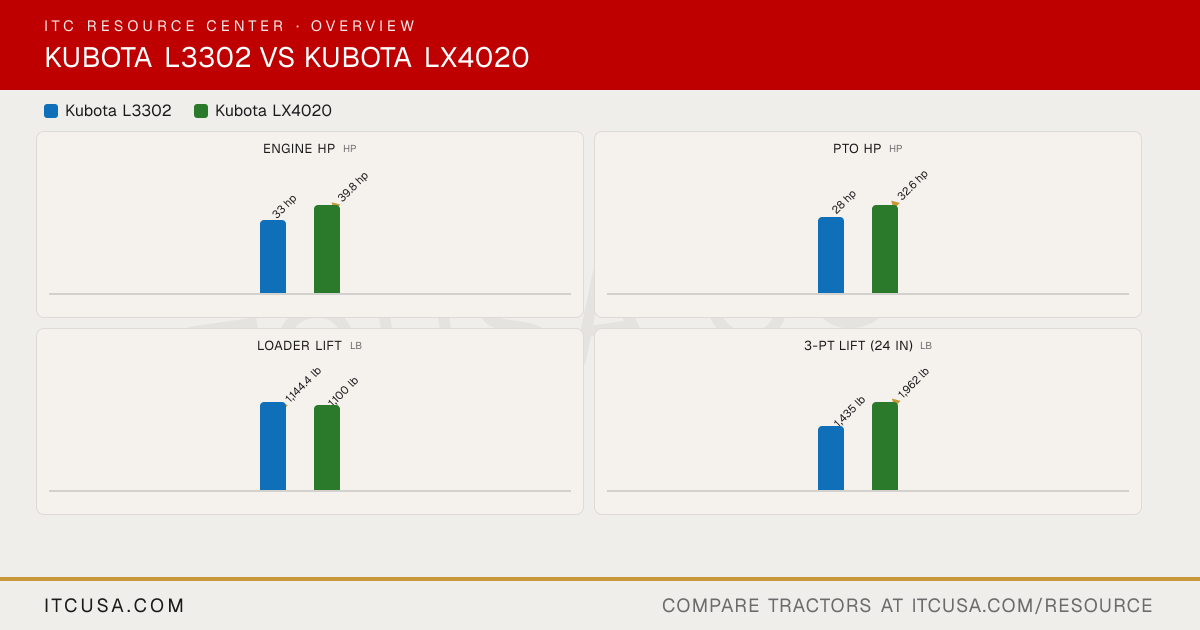

Kubota L3302 vs Kubota LX4020: Quick Answers

Which has more horsepower, the Kubota L3302 or the Kubota LX4020?

The Kubota LX4020 leads on engine hp at 39.8 hp hp, compared to 33 hp hp for the Kubota L3302.

Which has more PTO horsepower, the Kubota L3302 or the Kubota LX4020?

The Kubota LX4020 leads on pto hp at 32.6 hp hp, compared to 28 hp hp for the Kubota L3302.

Which has more loader lift capacity, the Kubota L3302 or the Kubota LX4020?

The Kubota L3302 leads on loader lift at 1,144.4 lb lb, compared to 1,100 lb lb for the Kubota LX4020.

Which has more three-point hitch lift capacity, the Kubota L3302 or the Kubota LX4020?

The Kubota LX4020 leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,435 lb lb for the Kubota L3302.
