Kubota L3800 vs Kubota LX4020
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 6 measurable specs, this matchup is a dead heat: 3 categories to the Kubota L3800, 3 to the Kubota LX4020. Machine pages: Kubota L3800 and Kubota LX4020.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

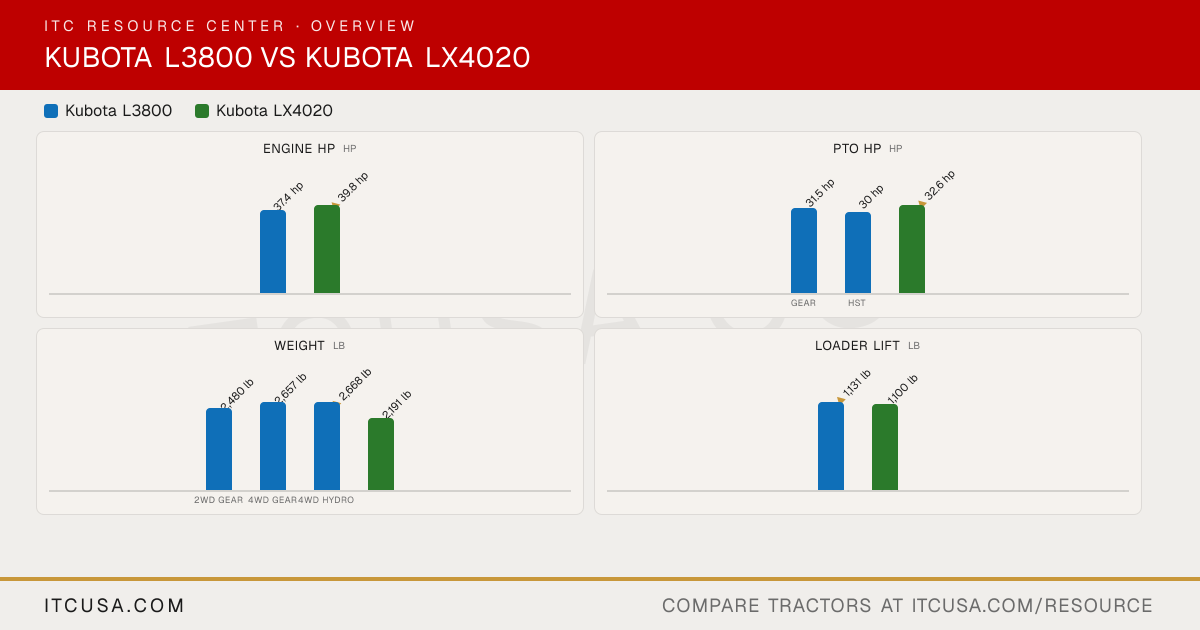

Category Verdict
| Spec | Kubota L3800 | Kubota LX4020 |
|---|---|---|
| Engine HP (hp) | 37.4 hp | ▲ 39.8 hp |
| PTO HP (hp) | 31.5 hp | ▲ 32.6 hp |
| Weight (lb) | ▲ 2,668 lb | 2,191 lb |
| Loader Lift (lb) | ▲ 1,131 lb | 1,100 lb |
| 3-Pt Lift (24 in) (lb) | n/a | 1,962 lb |
| Lift Height (in) | ▲ 94.3 in | 87.6 in |
| Breakout Force (lbf) | 2,462 lbf | n/a |
| Hydraulic Flow (gpm) | 6.3 gpm | ▲ 9.5 gpm |
| Travel Speed (mph) | n/a | 17 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL3800 | KubotaLX4020 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | D1803 | V1505-CR-TE5-D40R4 |
| Engine Type | Diesel, 3-cylinder, liquid-cooled | Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged |
| No. of Cylinders | 3 | 4 |
| Displacement | 111.4 in³ | 91.4 in³ |
| Rated Engine Speed | 2700 rpm | 2700 rpm |
| Engine Power (Gross) | 37.4 hp | 39.8 hp |
| PTO Power | Gear: 31.5 hp; HST: 30 hp | 32.6 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Not Published | Pressurized radiator |
| Air Cleaner | Not Published | 6 in paper filter (with dual element) |
| Fuel System | Not Published | Direct injection |
| Alternator | Not Published | Not Published |
Kubota L3800 vs Kubota LX4020: Quick Answers
- Which has more horsepower, the Kubota L3800 or the Kubota LX4020?
- The Kubota LX4020 leads on engine hp at 39.8 hp hp, compared to 37.4 hp hp for the Kubota L3800.
- Which has more PTO horsepower, the Kubota L3800 or the Kubota LX4020?
- The Kubota LX4020 leads on pto hp at 32.6 hp hp, compared to 31.5 hp hp for the Kubota L3800.
- Which is heavier, the Kubota L3800 or the Kubota LX4020?
- The Kubota L3800 leads on weight at 2,668 lb lb, compared to 2,191 lb lb for the Kubota LX4020.
- Which has more loader lift capacity, the Kubota L3800 or the Kubota LX4020?
- The Kubota L3800 leads on loader lift at 1,131 lb lb, compared to 1,100 lb lb for the Kubota LX4020.
