Which has more horsepower, the LS Tractor MT122 or the TYM T224?

They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT122 or the TYM T224?

The TYM T224 leads on pto hp at 15.1 hp hp, compared to 15 hp hp for the LS Tractor MT122.

Which has more loader lift capacity, the LS Tractor MT122 or the TYM T224?

The LS Tractor MT122 leads on loader lift at 1,007 lb lb, compared to 617 lb lb for the TYM T224.

Which has more three-point hitch lift capacity, the LS Tractor MT122 or the TYM T224?

The LS Tractor MT122 leads on 3-pt lift (24 in) at 728 lb lb, compared to 679 lb lb for the TYM T224.

LS Tractor MT122 vs TYM T224

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor MT122 leads 4 categories to 1 (2 tied). Machine pages: LS Tractor MT122 and TYM T224.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT122	TYM T224
Engine HP (hp)	21.5 hp	21.5 hp
PTO HP (hp)	15 hp	▲ 15.1 hp
Weight (lb)	1,433 lb	—
Loader Lift (lb)	▲ 1,007 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 728 lb	679 lb
Lift Height (in)	▲ 72 in	71.3 in
Breakout Force (lbf)	▲ 1,960 lbf	1,235 lbf
Hydraulic Flow (gpm)	6.7 gpm	6.7 gpm
Travel Speed (mph)	—	8.4 mph

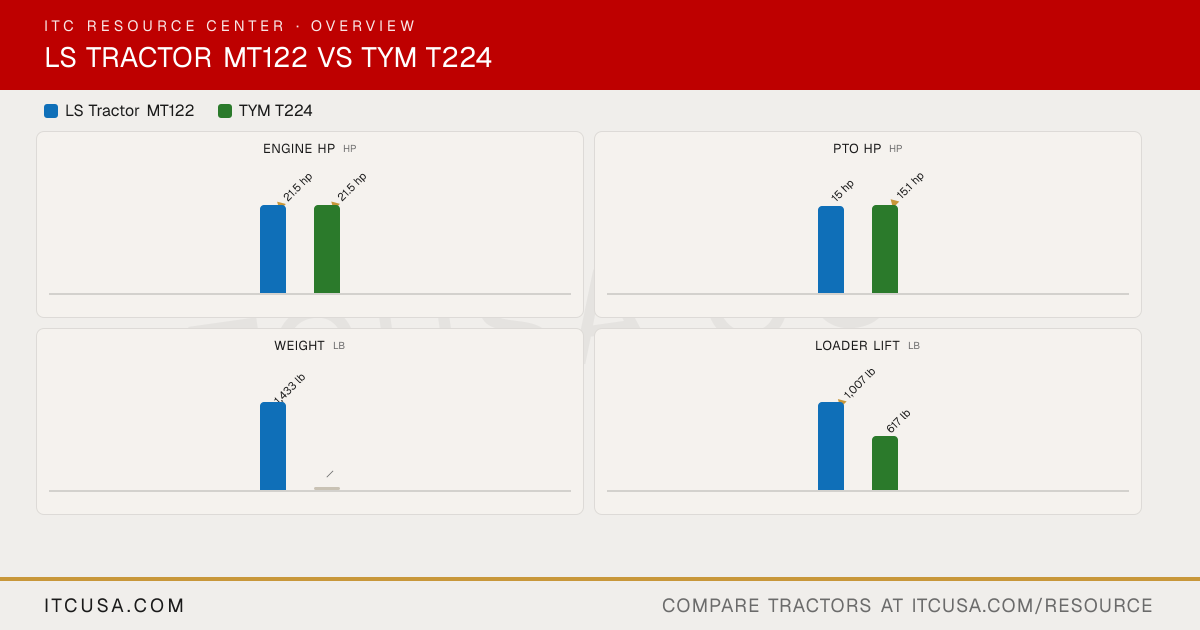

The headline numbers at a glance.

LS Tractor MT122TYM T224

Engine HPhp

▲21.5 hp

PTO HPhp

15 hp

▲15.1 hp

Weightlb

1,433 lb

—

Loader Liftlb

▲1,007 lb

617 lb

3-Pt Lift (24 in)lb

▲728 lb

679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT122	TYMT224


PTO Power	15 hp	15.1 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Replaceable paper elements	Single dry
Engine Type	3-cylinder, Indirect-injection, Water-cooled	3-cylinder, naturally aspirated diesel
Fuel System	Mechanical, in-line type	IDI
Displacement	68 in³	60.6 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3200 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	21.5 hp	21.5 hp
Engine Emissions Constraints	Tier 4	Tier 4

Tractor Weight (Base)	1,433 lbs	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	6 Year Limited Warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear	Single gear pump
Steering Flow	2.1 gpm	2.1 gpm
Implement Flow	4.6 gpm	4.6 gpm
Total Hydraulic Flow	6.7 gpm	6.7 gpm
Hydraulic System Type	Open center system, Position control	Open center
System Operating Pressure	1,885.5 psi	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.7 gpm	6.7 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	0	Not Published

PTO Rear	Standard (540 rpm)	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position control
Hitch Lift Capacity	970 lbs. (At 24 in: 728)	1,100 lb
Mid-PTO Availability	Standard (2,500 rpm)	Available
Category, 3-Point Hitch	CAT I	Category I (Narrow)
Hitch Lift Capacity (at 24”)	728 lb	679 lb

R3 Turf - Rear	26 x 12.0 - 12	Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front	18 x 8.5 - 10	Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options	Front: 18x8.5-10 Industrial; Rear: 26x12.0-12 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	26 x 12.0 - 12	WT300 26x12.00-12 NHS TL 4PR
R4 Industrial - Front	18 x 8.5 - 10	WT300 18x8.5-10 NHS TL 4PR
R1 Agricultural - Rear	Not Published	BAR R 24x12.00-12
R1 Agricultural - Front	Not Published	BAR F 16x6.50-8

Coolant Capacity	0.9 gal (0.9U.S.gals)	3.7 qt
Crankcase Capacity	0.8 gal (0.8U.S.gals)	1.9 qt
Fuel Tank Capacity	6.6 gal.	6.6 gal
Front Axle Fluid Capacity	0.5 gal (0.5U.S.gals)	2.6 qt
Transmission / Hydraulic System Capacity	3 gal (3.0U.S.gals)	3.6 gal

Loader Lift Height	72.0 in.	71.3 in
Loader Breakout Force	1,960 lbs.	1,235 lb
Quick Attach Loader System	LL1101: Pin-Type Bucket (standard); Quick Attach Assembly (Optional) - Compact Type (dual-lever LH/RH); LL1700: Quick Attach Implement System	TX22H: Quick attach mechanism
Loader Lift Capacity (Full Height)	1,007 lbs.	617 lb

Clutch	Not Applicable	Not applicable
No. of Speeds	2 Ranges	Infinite 2-Range
Transmission Type	Hydrostatic Drive	HST
Max Travel Speed (Forward)	0 ~ 14.0 Km/h (0 ~ 8.70 mph)	8.4 mph
Max Travel Speed (Reverse)	0 ~ 8.4 Km/h (0 ~ 5.22 mph)	Not Published
Differential Lock & Limited Slip Options	Mechanical pedal type	Differential lock

Brakes	Wet, Multi-disc	Wet disc
Steering	Hydrostatic Power Steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Front Wheel Mechanical Assist (4WD)	Not Published
Drawbar Capacity	Vertical load: 881.8 lb (882lbs), Horizontal load: 1.6 tonnes (3527lbs)	Not Published
Front Axle Rating	1433 lb	Not Published
Seat Suspension & Adjustability	High-Back Seat with Foldable Armrest and Retractable Seatbelt; fore/aft adjustable	Not Published

Wheelbase	56 in.	53.1 in
Overall Width	47 in.	44.5 in
Overall Length	97 in.	—
Ground Clearance	Not provided in source	8.3 in
Height to Top of ROPS	87 in.	86.6 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	7.87 ft	86.6 in
Overall Length with 3-Point Hitch	97 in.	94.2 in

LS Tractor MT122 vs TYM T224: Quick Answers

Which has more horsepower, the LS Tractor MT122 or the TYM T224?: They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor MT122 or the TYM T224?: The TYM T224 leads on pto hp at 15.1 hp hp, compared to 15 hp hp for the LS Tractor MT122.
Which has more loader lift capacity, the LS Tractor MT122 or the TYM T224?: The LS Tractor MT122 leads on loader lift at 1,007 lb lb, compared to 617 lb lb for the TYM T224.
Which has more three-point hitch lift capacity, the LS Tractor MT122 or the TYM T224?: The LS Tractor MT122 leads on 3-pt lift (24 in) at 728 lb lb, compared to 679 lb lb for the TYM T224.
